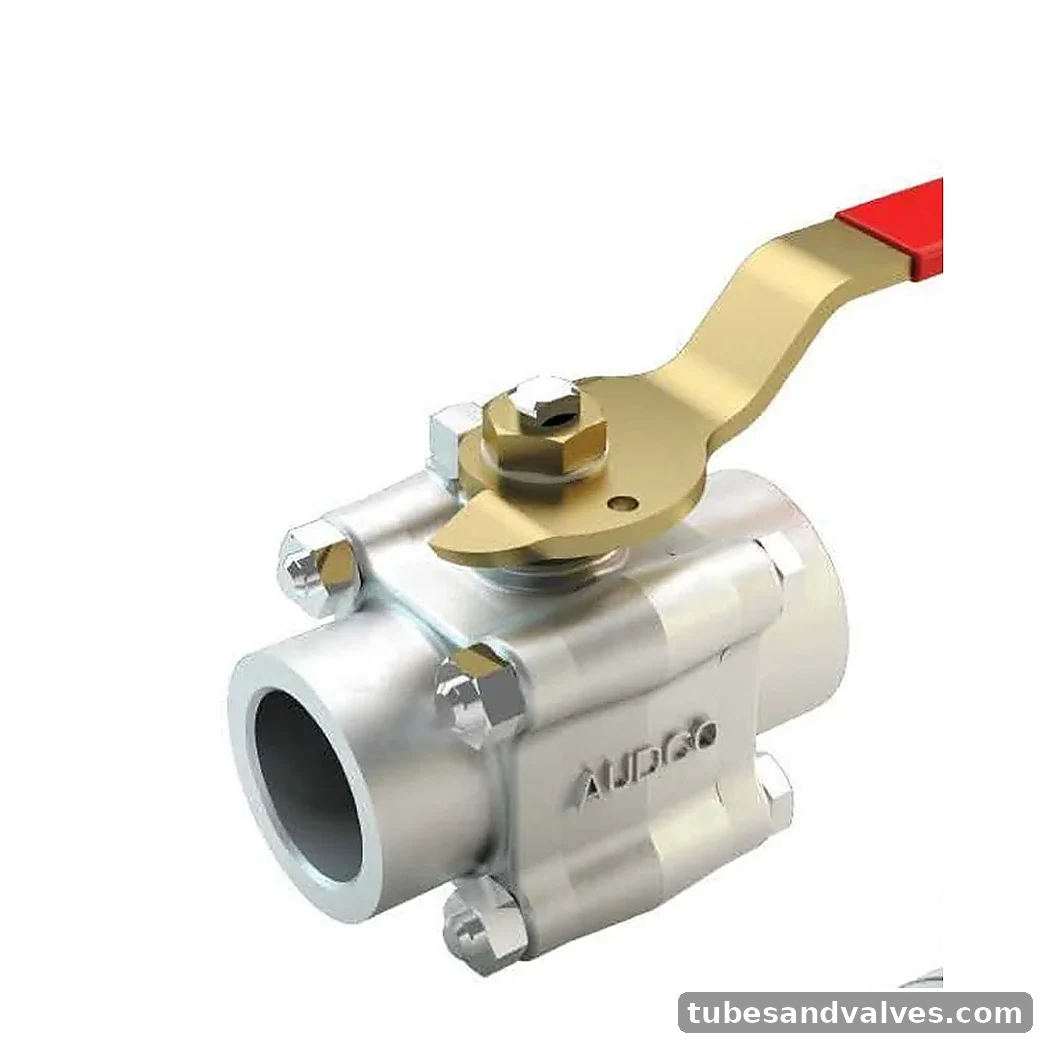

AUDCO Series 459 3-Piece Full Bore Ball Valve - Socket weld / BSPT / NPT
AUDCO 459 series 3-piece floating ball valve in ASTM A351 CF8M, with full bore and Socket weld / BSPT / NPT ends. The 44/459 technical bulletin describes anti-blowout stem construction, anti-static design, cavity-pressure-relieving seats, 316 stainless-steel ball as standard and interchangeable seat/body-seal options. This catalogue variant is standard. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN65, DN80, DN100, DN150
Brand / MakeAUDCO
Product FamilyBall Valve
MaterialASTM A351 CF8M
Pressure / Rating800
Standard / Specification459
End ConnectionSocket weld / BSPT / NPT
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelLF45966TTAT/BT/CT
Series459
Technical rating800
Body materialASTM A351 CF8M
Construction3-piece
BoreFull
End connectionSocket weld / BSPT / NPT
Fire-safeNo
Ball316 stainless steel (catalogue standard)
Stem designAnti-blowout
Anti-static designYes
Seat designCavity pressure relieving
Available sizesDN65, DN80, DN100, DN150
