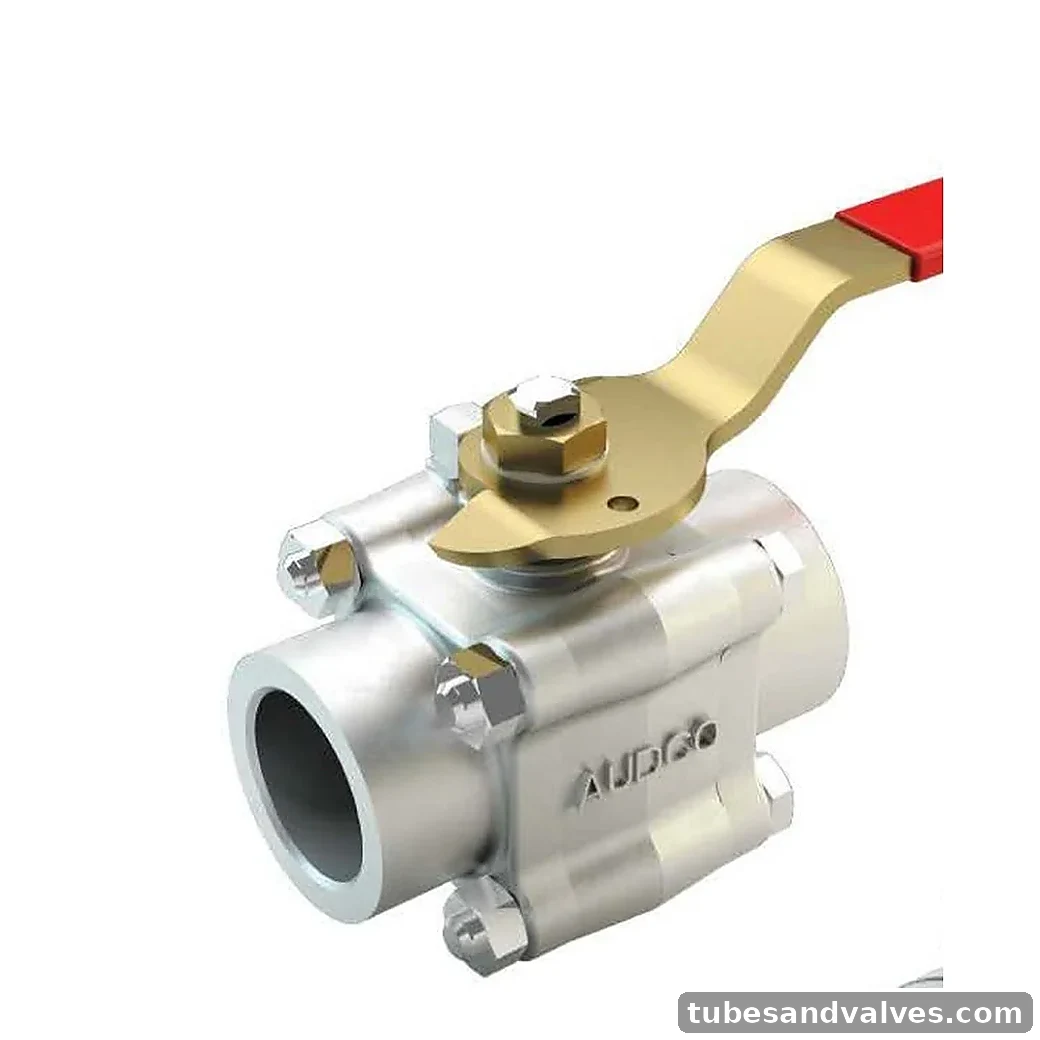

AUDCO Series F44 3-Piece Full Bore Ball Valve - Socket weld
AUDCO F44 series 3-piece floating ball valve in ASTM A351 CF8M, with full bore and Socket weld ends. The 44/459 technical bulletin describes anti-blowout stem construction, anti-static design, cavity-pressure-relieving seats, 316 stainless-steel ball as standard and interchangeable seat/body-seal options. This catalogue variant is fire-safe. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN15, DN20, DN25, DN32, DN40, DN50
Brand / MakeAUDCO
Product FamilyBall Valve
MaterialASTM A351 CF8M
Pressure / Rating800
Standard / SpecificationF44
End ConnectionSocket weld
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelLFF4466TTGCT
SeriesF44
Technical rating800
Body materialASTM A351 CF8M
Construction3-piece
BoreFull
End connectionSocket weld
Fire-safeYes
Ball316 stainless steel (catalogue standard)
Stem designAnti-blowout
Anti-static designYes
Seat designCavity pressure relieving
Fire-safe featureSecondary metal-to-metal seating design
Available sizesDN15, DN20, DN25, DN32, DN40, DN50
