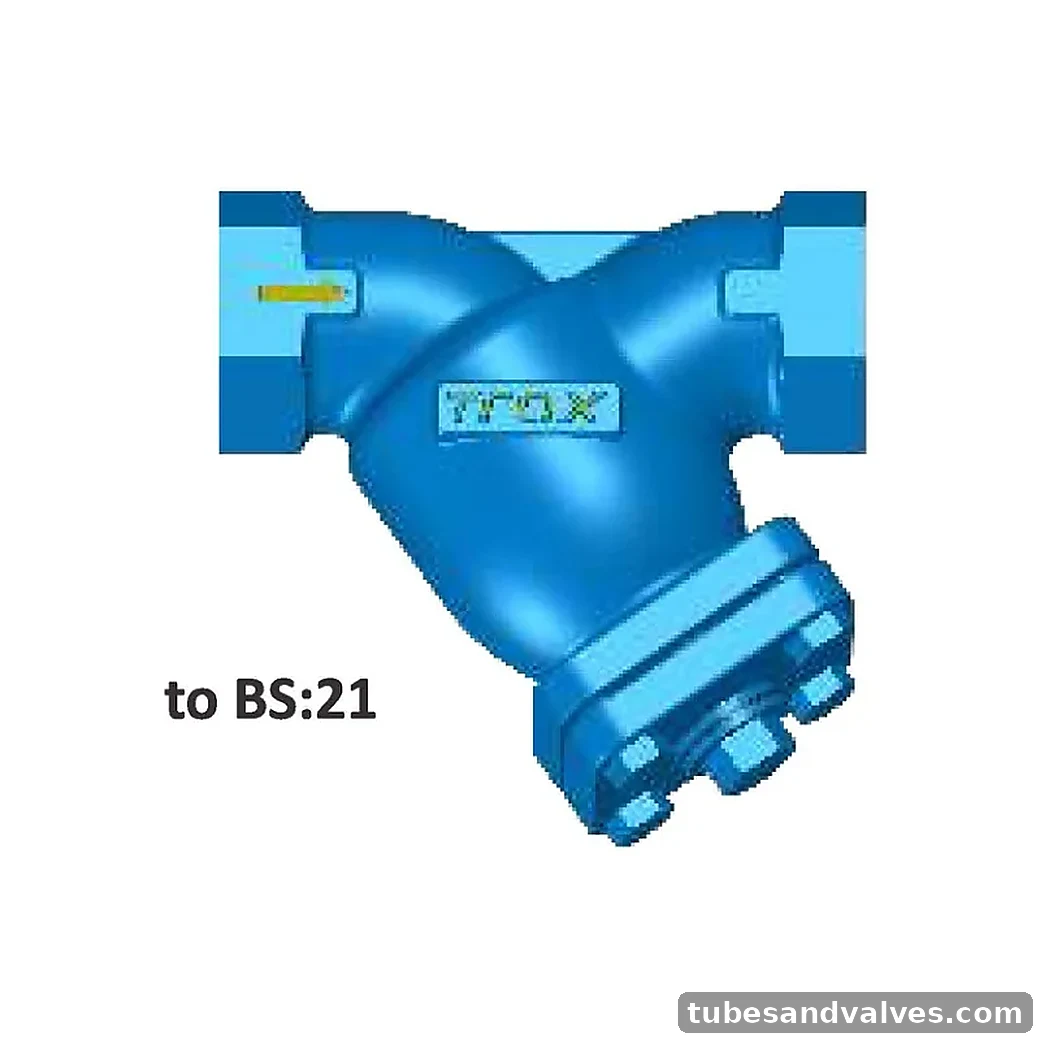

TRAX TX-02 S.G. Iron Y-Type Strainer
TRAX TX-02 S.G. Iron Y-Type Strainer. Y-type S.G. iron strainer with screwed-in cover up to 3/4 inch and bolted cover from 1 inch and above. It uses an AISI 304 screen with 1 mm diameter perforations and screwed female BSP parallel threaded ends. Material: S.G. Iron (ASTM A536-1980); Construction: Screwed-in cover up to 3/4 inch; bolted cover 1 inch and above; Screen: AISI 304, 1 mm diameter perforations; End Connection: Screwed female BSP parall
Available Size / Variant
Confirm size with quotation
Brand / MakeTRAX
Catalogue ModelTX-02
Product FamilyStrainer / Filter
MaterialS.G. Iron (ASTM A536-1980); Construction: Screwed-in cover up to 3/4 inch; bolted cover 1 inch and above; Screen: AISI 304, 1 mm diameter perforations; End Connection: Screwed female BSP parallel threads to BS:21; Working Pressure: Max. B.O.P. 13 bar; Test Pressure: 26 bar hydraulic; Maximum Working Temperature: 220°C; Listed Sizes: 15 mm; 20 mm; 25 mm; 32 mm; 40 mm; 50 mm
Standard / SpecificationS.G. Iron (ASTM A536-1980); Construction: Screwed-in cover up to 3/4 inch; bolted cover 1 inch and above; Screen: AISI 304, 1 mm diameter perforations; End Connection: Screwed female BSP parallel threads to BS:21; Working Pressure: Max. B.O.P. 13 bar; Test Pressure: 26 bar hydraulic; Maximum Working Temperature: 220°C; Listed Sizes: 15 mm; 20 mm; 25 mm; 32 mm; 40 mm; 50 mm
TRAX Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardS.G. Iron (ASTM A536-1980); Construction: Screwed-in cover up to 3/4 inch; bolted cover 1 inch and above; Screen: AISI 304, 1 mm diameter perforations; End Connection: Screwed female BSP parallel threads to BS:21; Working Pressure: Max. B.O.P. 13 bar; Test Pressure: 26 bar hydraulic; Maximum Working Temperature: 220°C; Listed Sizes: 15 mm; 20 mm; 25 mm; 32 mm; 40 mm; 50 mm
