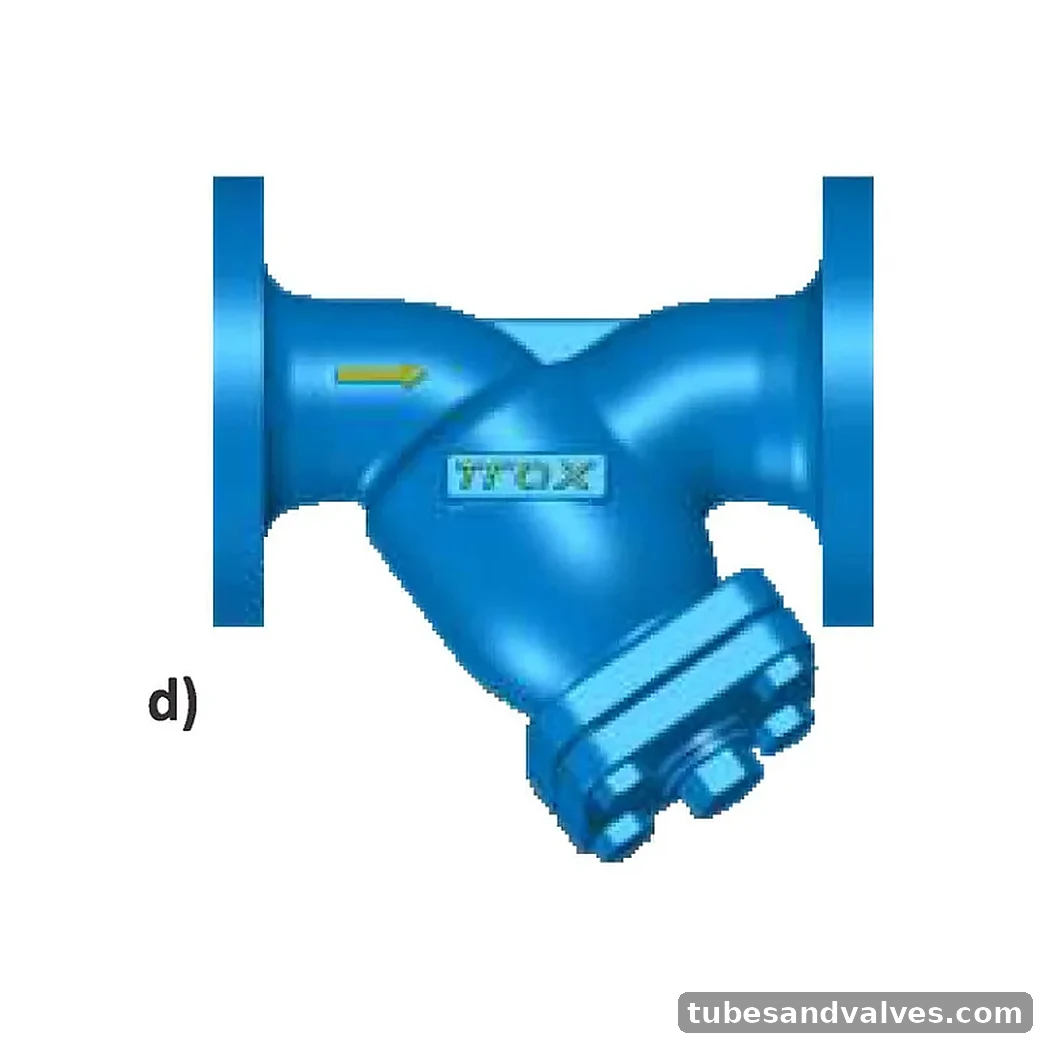

TRAX TX-03 S.G. Iron Y-Type Strainer Flanged
TRAX TX-03 S.G. Iron Y-Type Strainer Flanged. Flanged Y-type S.G. iron strainer with bolted cover and AISI 304 screen having 1 mm diameter perforations. Designed with BS:10 Table-F flanged ends. Material: S.G. Iron (ASTM A536-1980); Construction: Y-type, bolted cover; Screen: AISI 304, 1 mm diameter perforations; End Connection: Flanges as per BS:10 Table-F (undrilled); Working Pressure: Max. B.O.P. 13 bar; Test Pressure: 26 bar hydraulic; Maximu
Available Size / Variant
Confirm size with quotation
Brand / MakeTRAX
Catalogue ModelTX-03
Product FamilyStrainer / Filter
MaterialS.G. Iron (ASTM A536-1980); Construction: Y-type, bolted cover; Screen: AISI 304, 1 mm diameter perforations; End Connection: Flanges as per BS:10 Table-F (undrilled); Working Pressure: Max. B.O.P. 13 bar; Test Pressure: 26 bar hydraulic; Maximum Working Temperature: 220°C; Listed Sizes: 25 mm; 32 mm; 40 mm; 50 mm; 65 mm; 80 mm; 100 mm
Standard / SpecificationS.G. Iron (ASTM A536-1980); Construction: Y-type, bolted cover; Screen: AISI 304, 1 mm diameter perforations; End Connection: Flanges as per BS:10 Table-F (undrilled); Working Pressure: Max. B.O.P. 13 bar; Test Pressure: 26 bar hydraulic; Maximum Working Temperature: 220°C; Listed Sizes: 25 mm; 32 mm; 40 mm; 50 mm; 65 mm; 80 mm; 100 mm
TRAX Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardS.G. Iron (ASTM A536-1980); Construction: Y-type, bolted cover; Screen: AISI 304, 1 mm diameter perforations; End Connection: Flanges as per BS:10 Table-F (undrilled); Working Pressure: Max. B.O.P. 13 bar; Test Pressure: 26 bar hydraulic; Maximum Working Temperature: 220°C; Listed Sizes: 25 mm; 32 mm; 40 mm; 50 mm; 65 mm; 80 mm; 100 mm
