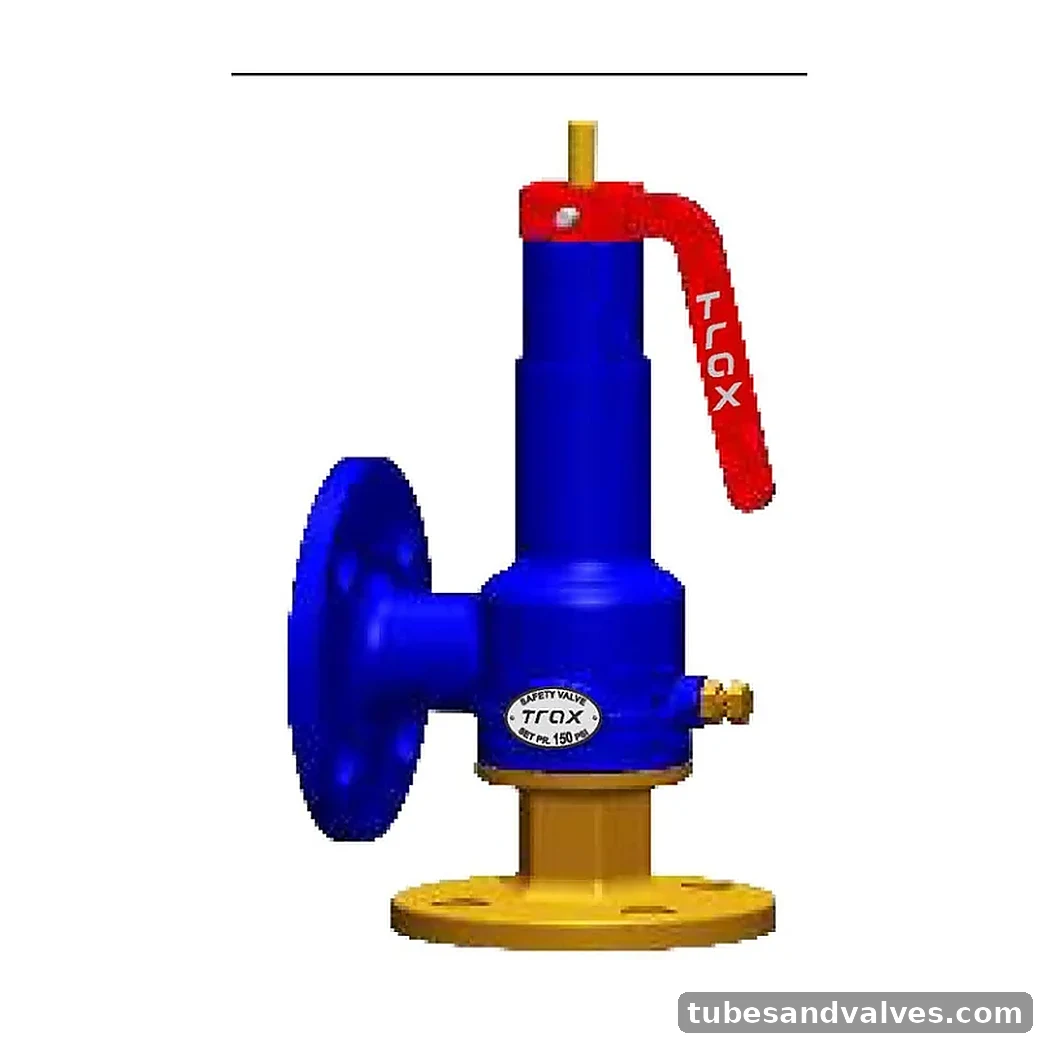

TRAX TX-102 Bronze Safety Valve Flanged
TRAX TX-102 Bronze Safety Valve Flanged. Right-angle bronze safety valve with spring-loaded mechanism and enclosed discharge. This version is supplied with BS:10 Table-F flanged end connection. Material: Bronze, BS:1400 LG2; Chamber Material: S.G. Iron, ASTM A536-1980; Trim: Copper Alloy / Stainless Steel 304 AISI; Pattern: Right angle, spring loaded, enclosed discharge; End Connection: Flanged ends BS:10 Table-F; Working Pressure: Max. 10.34 bar
Available Size / Variant
Confirm size with quotation
Brand / MakeTRAX
Catalogue ModelTX-102
Product FamilyFlange
MaterialBronze, BS:1400 LG2; Chamber Material: S.G. Iron, ASTM A536-1980; Trim: Copper Alloy / Stainless Steel 304 AISI; Pattern: Right angle, spring loaded, enclosed discharge; End Connection: Flanged ends BS:10 Table-F; Working Pressure: Max. 10.34 bar at 225°C; Listed Sizes: 15 mm; 20 mm; 25 mm; 40 mm; 50 mm
TRAX Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body MaterialBronze, BS:1400 LG2; Chamber Material: S.G. Iron, ASTM A536-1980; Trim: Copper Alloy / Stainless Steel 304 AISI; Pattern: Right angle, spring loaded, enclosed discharge; End Connection: Flanged ends BS:10 Table-F; Working Pressure: Max. 10.34 bar at 225°C; Listed Sizes: 15 mm; 20 mm; 25 mm; 40 mm; 50 mm
