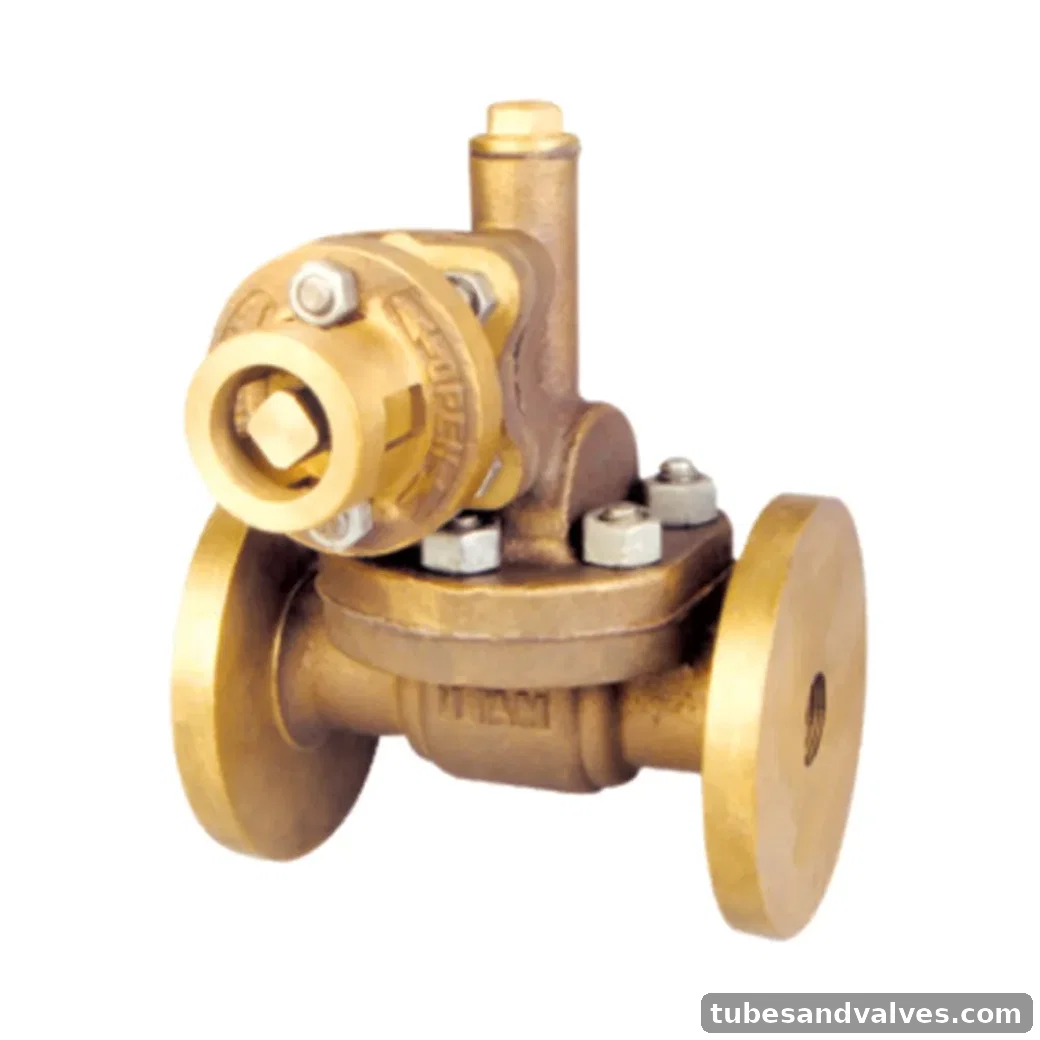

UTAM UV-141-S PARALLEL SLIDE BLOW OFF VALVE
UTAM UV-141-S PARALLEL SLIDE BLOW OFF VALVE. PARALLEL SLIDE BLOW OFF VALVE. Rack & Pinion Operated with key. Rating: Max. BOP 17.24 Bar at 225°C.. Body/material: Bronze. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-141-S
Product FamilyBlow Off Valve
MaterialBronze
Pressure / RatingMax. BOP 17.24 Bar at 225°C.
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSeats LUMINA (Ni-Cu Alloy)
End DetailsFlanges as per BS:10 Table-H (Undrilled)
Working PressureMax. BOP 17.24 Bar at 225°C.
Test PressureShell Test Pressure 34.5 Bar Hyd.
CertificationIBR Certified
