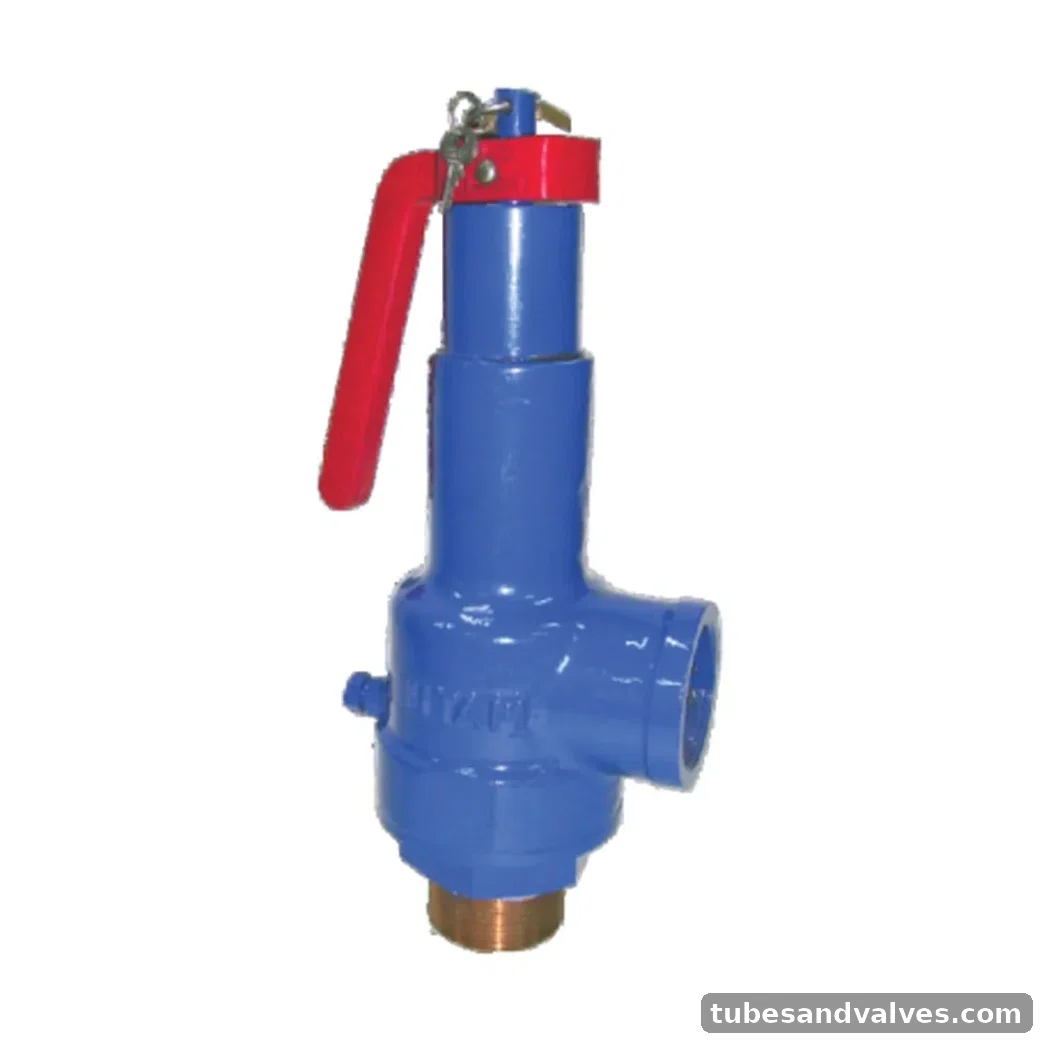

UTAM UV-159-S SAFETY VALVE
UTAM UV-159-S SAFETY VALVE. SAFETY VALVE. Spring Loaded, Enclosed Discharge. Body/material: Ductile Iron. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-159-S
Product FamilySafety / Relief Valve
MaterialDuctile Iron
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternRight Angle
Body Material / Standard(1) Chamber S.G. Iron (ASTM A536-1980) (2) Body Bronze (BS:1400 LG2)
Type of SeatIntegral Seat
Type of DiscRenewable Disc
TrimCu-Alloy
End DetailsInlet: Screwed Male BSP Parallel Threads to BS:21 Outlet: Screwed Female BSP Parallel Threads to BS:21
Maximum Working Temperature225°C
CertificationIBR Certified
