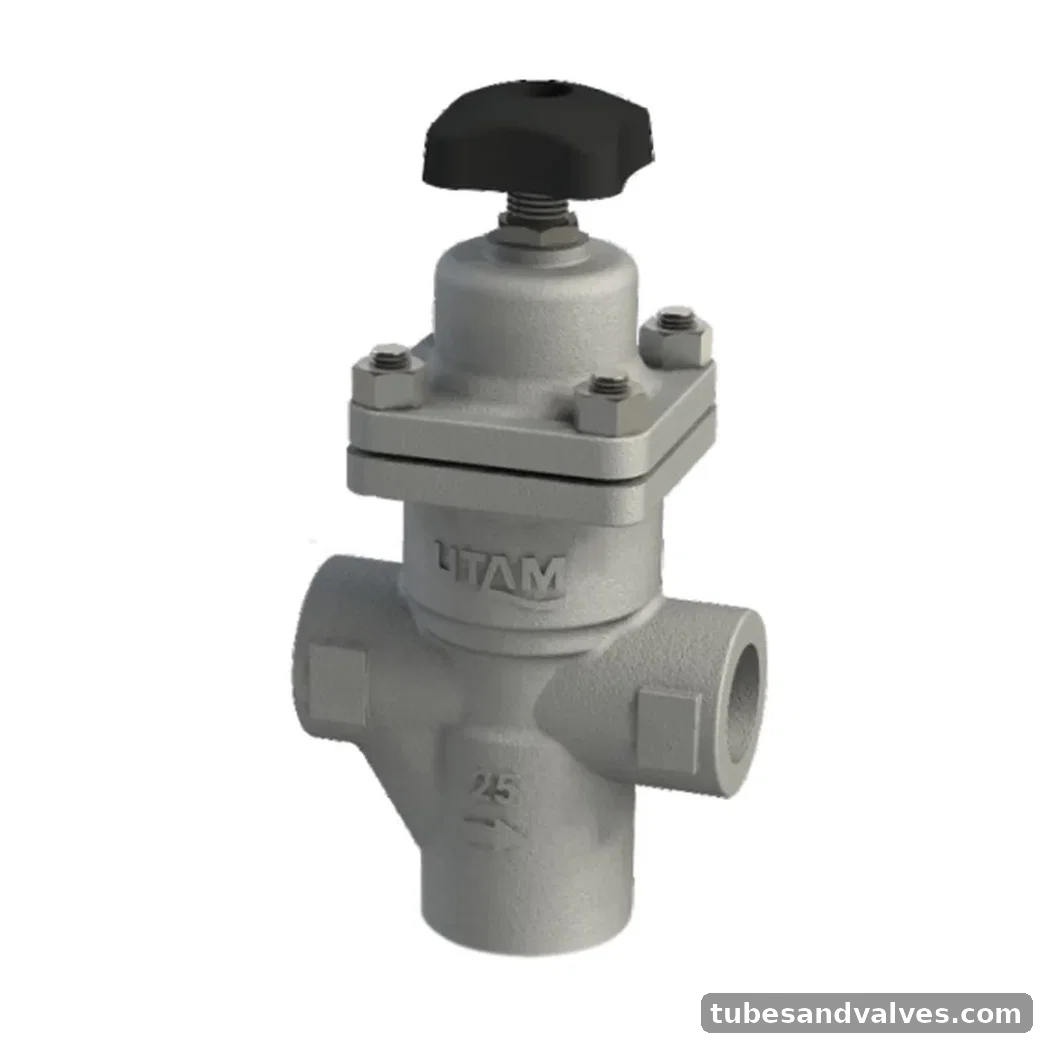

UTAM UV-163-S PRESSURE REDUCING VALVE(IBR CERTIFIED)
UTAM UV-163-S PRESSURE REDUCING VALVE(IBR CERTIFIED). PRESSURE REDUCING VALVE(IBR CERTIFIED). Bellow Type. Rating: PN-25. Body/material: Stainless Steel 304 / CF8. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-163-S
Product FamilyIndustrial Product
MaterialStainless Steel 304 / CF8
Pressure / RatingPN-25
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern *
Pressure/Class RatingPN-25
Body Material / StandardStainless Steel (ASTM A351 CF8)
Type of SeatRenewable Seat
TrimSS-304
End DetailsScrewed Female BSP Parallel Threads To BS:21
Pressure RangePrimary Pressure- 6 to 20 Bar
Secondary Pressure0.66 to 12 Bar
CertificationIBR Certified
