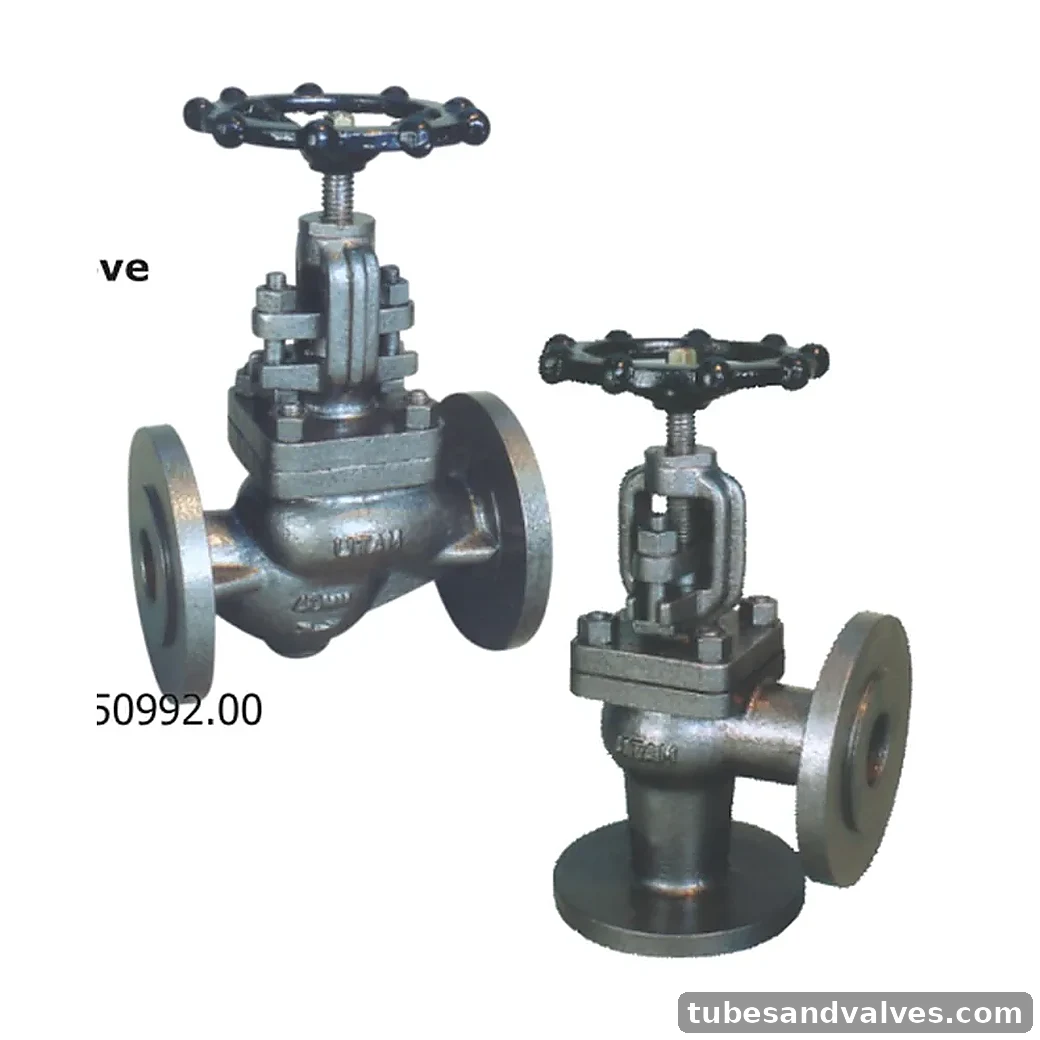

UTAM UV-201-S/UV-202-S GLOBE VALVE
UTAM UV-201-S/UV-202-S GLOBE VALVE. GLOBE VALVE. Bolted Bonnet, O/S & Yoke Type, Rising Stem. Rating: PN-16 up to 6". Body/material: Ductile Iron. End connection: DIN 2533 PN-16 RF up to 6".
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-201-S/UV-202-S
Product FamilyGlobe Valve
MaterialDuctile Iron
Pressure / RatingPN-16 up to 6"
StandardBS:5152
End ConnectionDIN 2533 PN-16 RF up to 6"
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern
Product StandardBS:5152
Pressure/Class RatingPN-16 up to 6"
Additional catalogue detailPN-10 for 8" & above
Body Material / StandardS.G. Iron (ASTM A536-1980)
Product DescriptionBolted Bonnet, O/S & Yoke Type, Rising Stem
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (ASTM A276 Type 410)
FastenerCarbon Steel (BS:916)
GasketCompressed Asbestos Fiber
Gland PackingGraphited Asbestos
End DetailsDIN 2533 PN-16 RF up to 6"
Additional catalogue detailDIN 2532 PN-10 RF for 8" & above
Test PressurePN-16: B.T.P. 24 Bar Hyd., S.T.P. 16 Bar Hyd.
PN-10B.T.P. 15 Bar Hyd., S.T.P. 10 Bar Hyd.
Maximum Working Temperature225°C
CertificationIBR Certified
