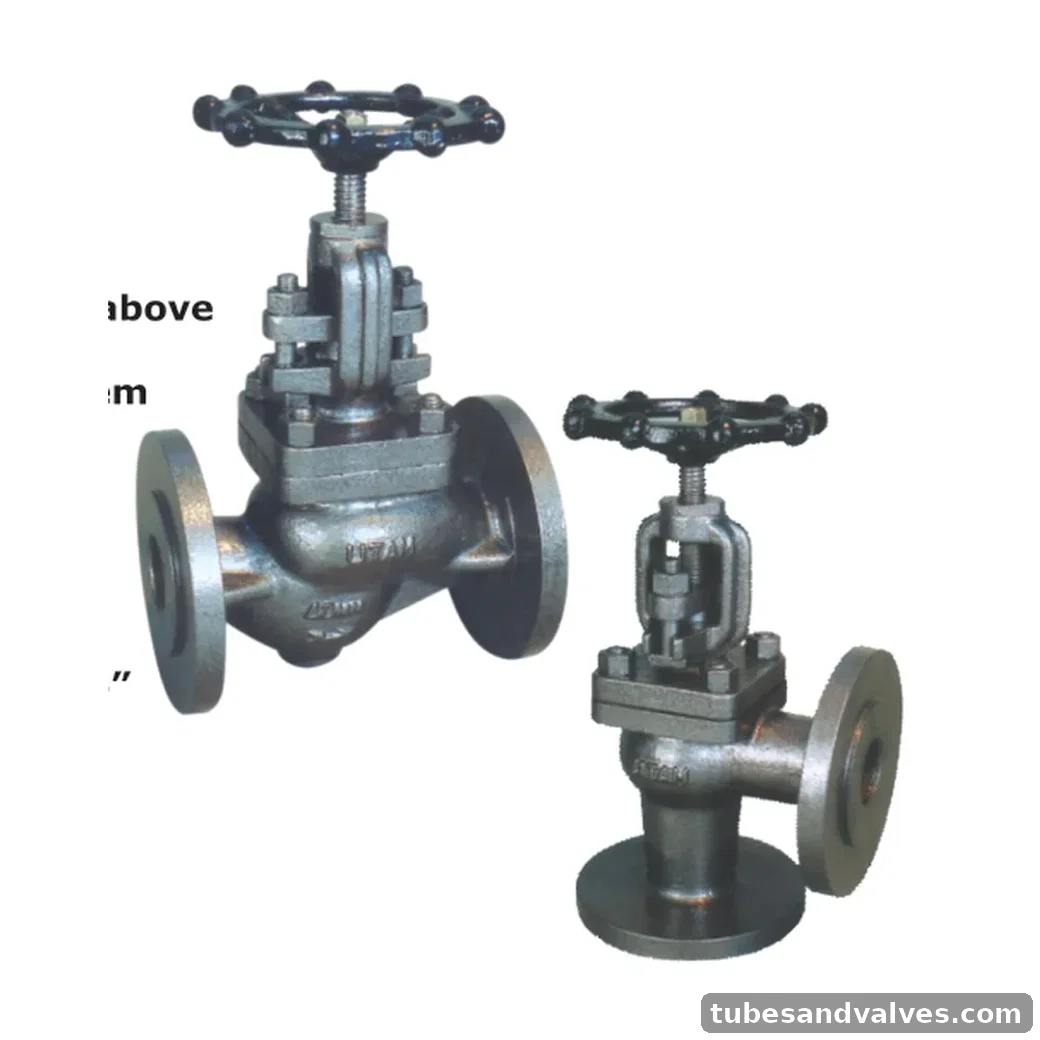

UTAM UV-210-S/UV-211-S STOP CUM NON RETURN VALVE
UTAM UV-210-S/UV-211-S STOP CUM NON RETURN VALVE. STOP CUM NON RETURN VALVE. Bolted Bonnet, O/S & Yoke Type, Rising Stem. Rating: PN-16 upto 6" Size, PN-10 for Size 8" & above. Body/material: Ductile Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-210-S/UV-211-S
Product FamilyGlobe Valve
MaterialDuctile Iron
Pressure / RatingPN-16 upto 6" Size, PN-10 for Size 8" & above
StandardBS:5152
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern
Product StandardBS:5152
Pressure/Class RatingPN-16 upto 6" Size, PN-10 for Size 8" & above
Body Material / StandardS.G. Iron (ASTM A536-1980)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (ASTM A276 Type 410)
FastenerCarbon Steel (BS:916)
GasketCompressed Asbestos Fiber
Gland PackingGraphited Asbestos
End DetailsFlanges as per DIN:2533 PN-16 RF for Sizes upto 6" & DIN:2532 PN-10 RF for Size 8" & above
Test PressureFor PN-16 For PN-10
B.T.P.24 Bar Hyd. _B.T.P.- 15 Bar Hyd.
S.T.P.16 Bar Hyd. _S.T.P.- 10 Bar Hyd.
Maximum Working Temperature225° C
CertificationIBR Certified
