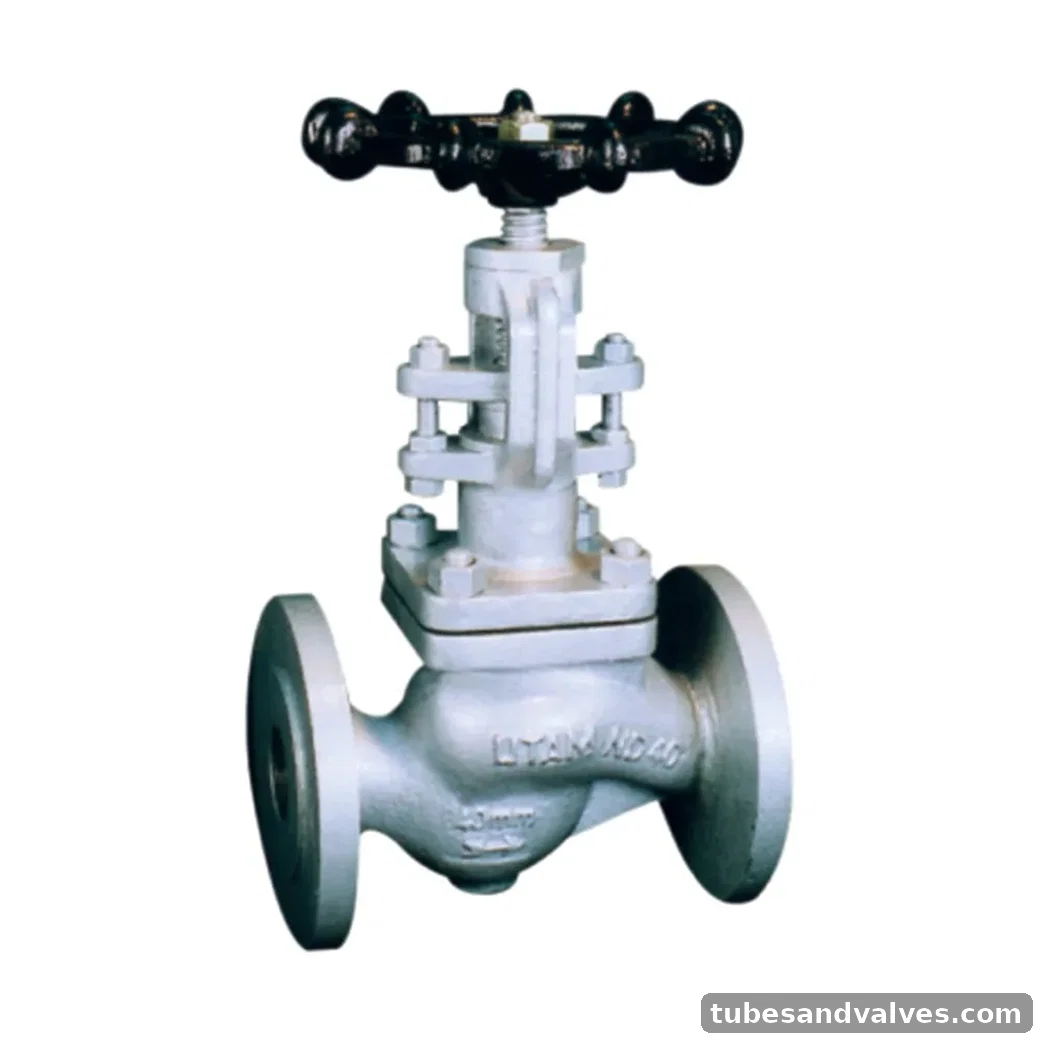

UTAM UV-251-S GLOBE VALVE
UTAM UV-251-S GLOBE VALVE. GLOBE VALVE. Bolted Bonnet, O/S & Yoke Type, Rising Stem. Rating: PN-40. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-251-S
Product FamilyGlobe Valve
MaterialCast Steel / WCB
Pressure / RatingPN-40
StandardBS:5160/DIN:2401
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern
Product StandardBS:5160/DIN:2401
Pressure/Class RatingPN-40
Body Material / StandardCast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A216 Gr.WCB)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (ASTM A276 Type 410)
FastenerCarbon Steel (BS:916)
GasketSpiral Wound graphite filled
Gland PackingNon Asbestos Graphited
End DetailsFlanges as per DIN 2545 PN-40 RF (Undrilled)
Test PressureB.T.P. 60 Bar Hyd. S.T.P. 40 Bar Hyd.
Maximum Working Temperature425° C
CertificationIBR Certified
