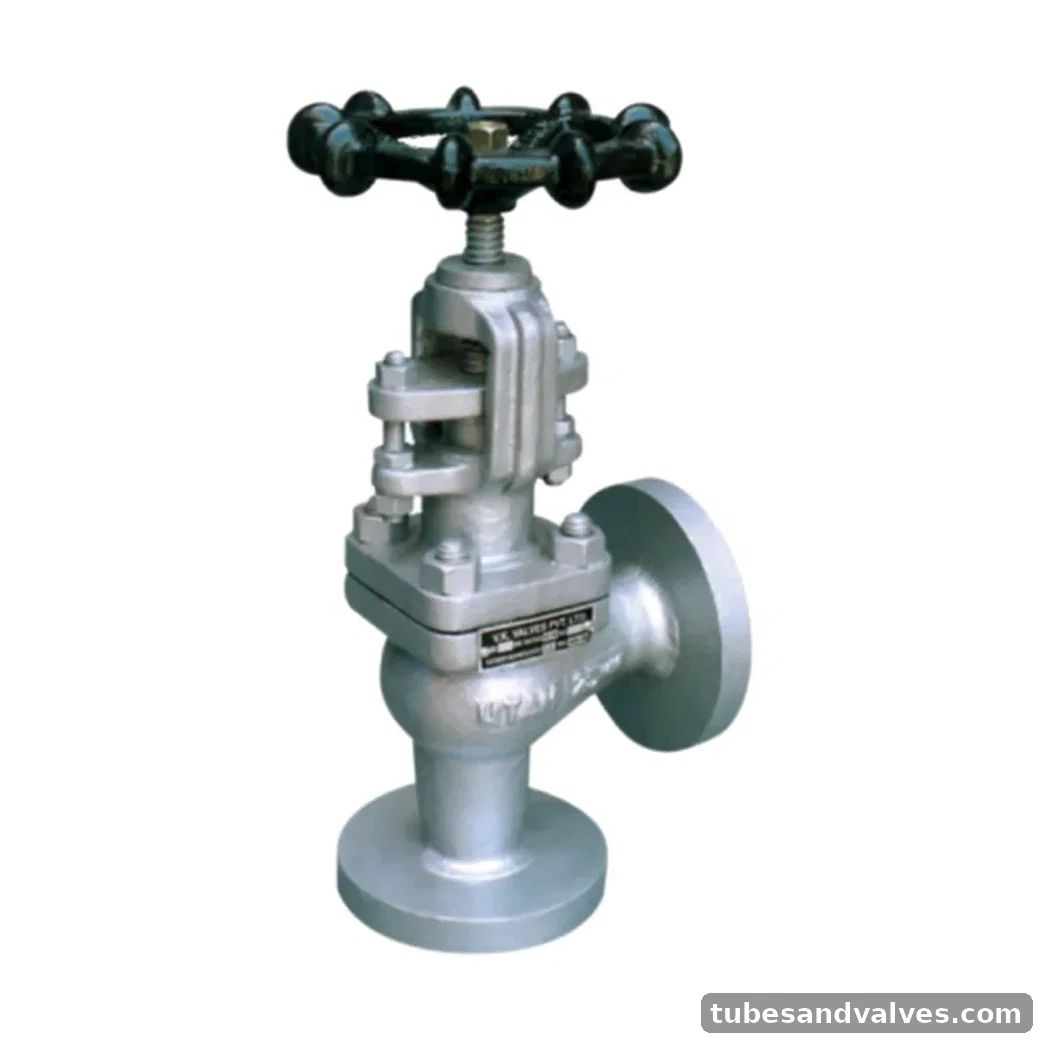

UTAM UV-266-S STOP CUM NON RETURN VALVE
UTAM UV-266-S STOP CUM NON RETURN VALVE. STOP CUM NON RETURN VALVE. Bolted Bonnet, O/S & Yoke Type, Rising Stem. Rating: PN-40. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-266-S
Product FamilyGlobe Valve
MaterialCast Steel / WCB
Pressure / RatingPN-40
StandardBS:5160/DIN:2401
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS:5160/DIN:2401
Pressure/Class RatingPN-40
Body Material / StandardCast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A216 Gr.WCB)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (ASTM A216 Type 410)
FastenerCarbon Steel (BS:916)
GasketSS 304 Spiral Wound graphite filled
Gland PackingNon Asbestos Graphited
End DetailsFlanges as per DIN 2545 PN-40 RF (Undrilled)
Test PressureB.T.P. 60 Bar Hyd. S.T.P. 40 Bar Hyd.
Maximum Working Temperature425° C
CertificationIBR Certified
