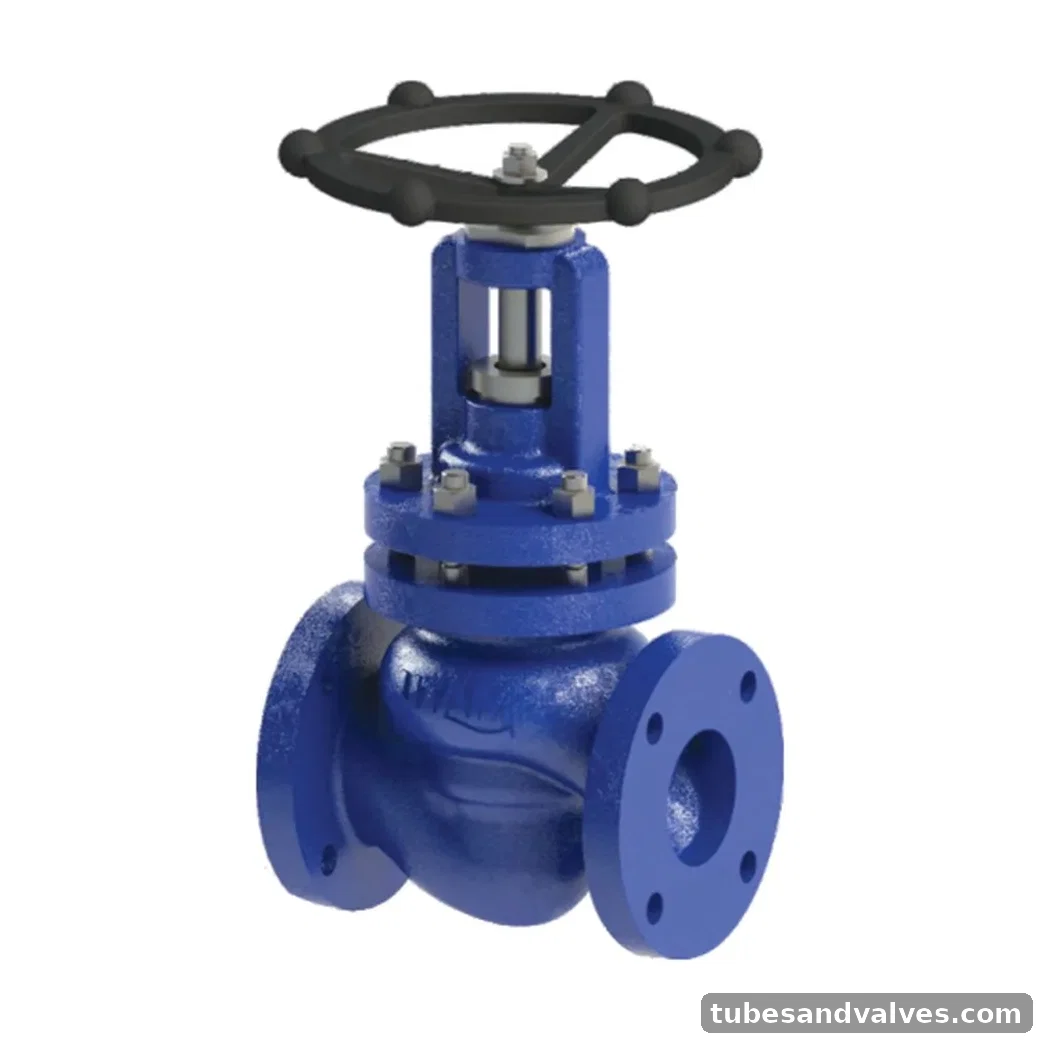

UTAM UV-284 PISTON VALVE
UTAM UV-284 PISTON VALVE. PISTON VALVE. Bolted Bonnet,Seatless & Glandless Piston Type, Rising Stem. Rating: Class- 300. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-284
Product FamilyPiston Valve
MaterialCast Steel / WCB
Pressure / RatingClass- 300
StandardAPI -602
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
ApplicationSteam, superheated steam. L.P.G, Ammonia,acids
Type of PatternStraight Pattern
Product StandardAPI -602
Class RatingClass- 300
Body Material / StandardCast Carbon Steel (ASTM A216 Gr. WCB)
TrimPiston- SS (AISI- 304)
Sealing RingSS Reinforced Graphite
SpacerSS (ASTM A 276 Type 410)
SpindleSS (ASTM A 276 Type 410)
End DetailsFlanges as per ASME B 16.5 CL-300 R. F. (Undrilled)
Test PressureB.T.P. - 76 Bar hyd.
S.T.P.55 Bar Hyd.
Max. Working Pressure425°C @ 28.8 bar g
CertificationIBR Certified
