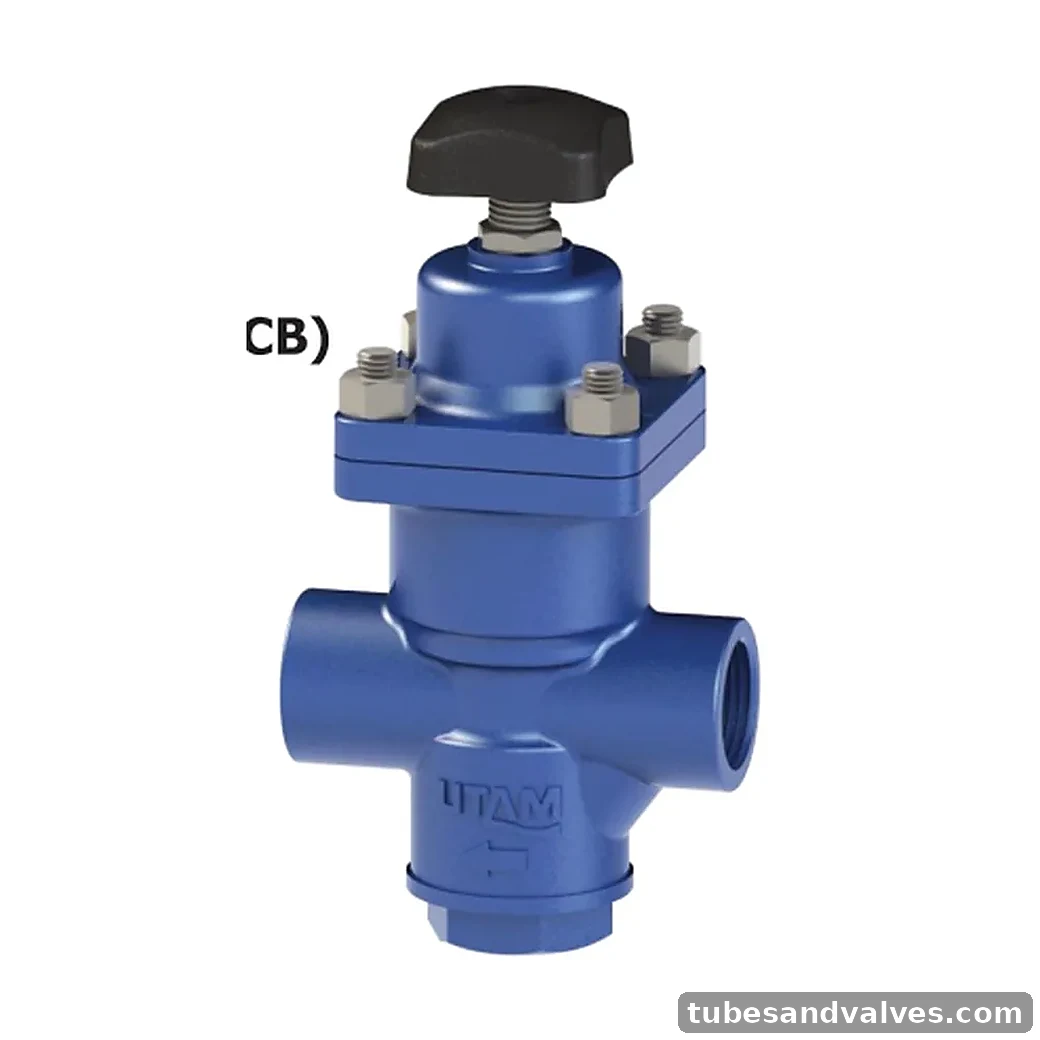

UTAM UV-286-S/UV-287-S PRESSURE REDUCING VALVE (IBR CERTIFIED)
UTAM UV-286-S/UV-287-S PRESSURE REDUCING VALVE (IBR CERTIFIED). PRESSURE REDUCING VALVE (IBR CERTIFIED). Bellow Type 2. Rating: PN-25 2. Body/material: Cast Steel / WCB. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-286-S/UV-287-S
Product FamilyIndustrial Product
MaterialCast Steel / WCB
Pressure / RatingPN-25 2
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern eh)
Pressure/Class RatingPN-25 2
Body Material / StandardCast Carbon Steel (ASTM A216 Gr. WCB) 1-1/2
Type of SeatRenewable Seat
TrimSS-304
End DetailsScrewed Female BSP Parallel Threads to Bs:21 Pressure Range ~ Primary Pressure- 6 to 20 Bar
Secondary Pressure0.66 to 12 Bar
CertificationIBR Certified
