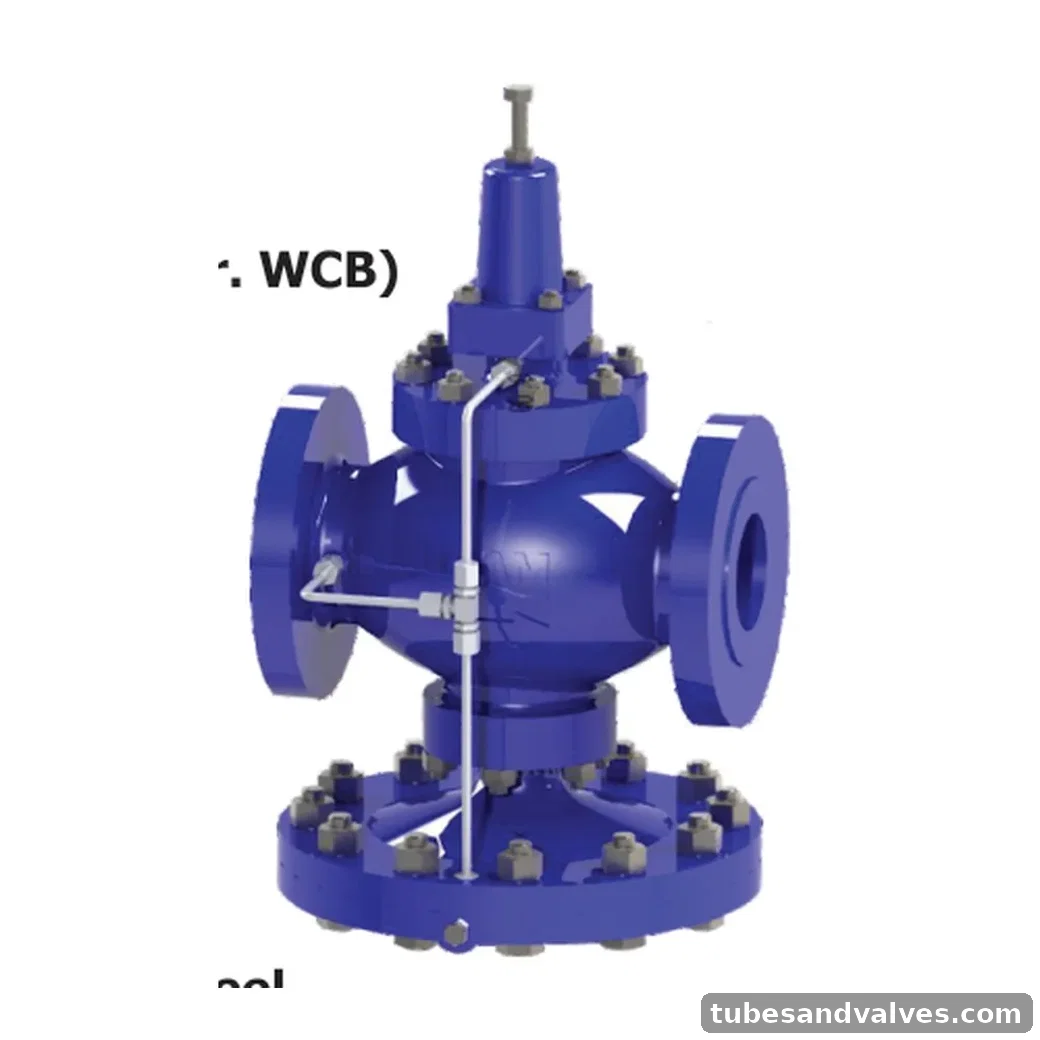

UTAM UV-288-N PILOT OPERATED PRESSURE REDUCING VALVE(IBR CERTIFIED)
UTAM UV-288-N PILOT OPERATED PRESSURE REDUCING VALVE(IBR CERTIFIED). PILOT OPERATED PRESSURE REDUCING VALVE(IBR CERTIFIED). Diaphragm Type Pilot Operated. Rating: CL-150. Body/material: Cast Steel / WCB. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-288-N
Product FamilyIndustrial Product
MaterialCast Steel / WCB
Pressure / RatingCL-150
StandardASME B 16.5
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern
Product StandardASME B 16.5
Pressure/Class RatingCL-150
Body Material / StandardCast Carbon Steel (ASTM A216 Gr. WCB) / Gun Metal (IBR Clause 282 (A) (iv) Gr.B) é
Type of SeatRenewable Seat
Trimstainless Steel- 304
FastenerCarbon Steel (ASTM A193, ASTM A194)
GasketSS (304) Spiral Wound Graphite Filled
Gland PackingGraphite
End DetailsFlanges As Per ASME B 16.5 CL-150
Test Pressure19 Bar @20.
Working Pressure14 Bar @220
CertificationIBR Certified
