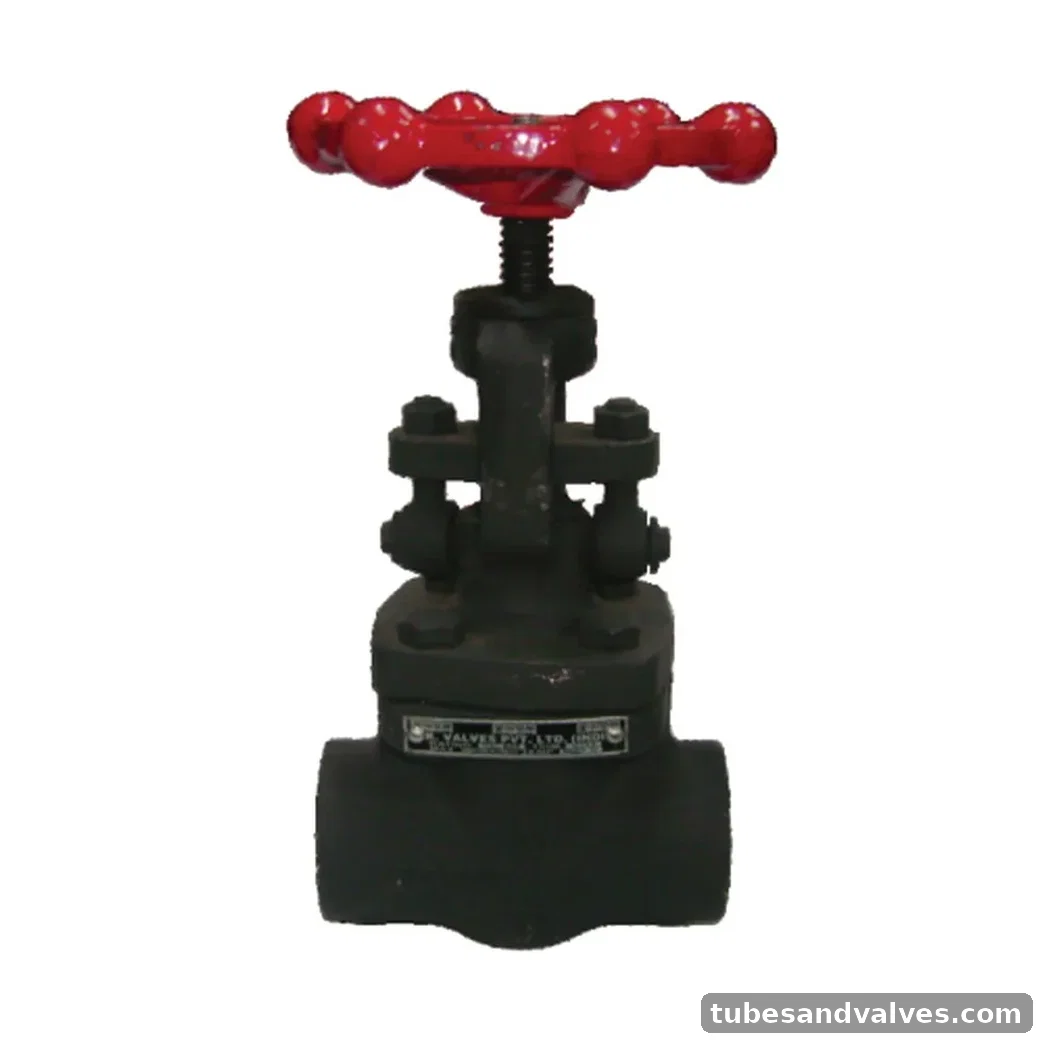

UTAM UV-358-S GLOBE VALVE
UTAM UV-358-S GLOBE VALVE. GLOBE VALVE. Bolted Bonnet,O/S & Yoke Type, Rising Stem. Rating: Class-2500. Body/material: Carbon Steel. End connection: Screwed, Socket Weld.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-358-S
Product FamilyGlobe Valve
MaterialCarbon Steel
Pressure / RatingClass-2500
StandardBS:5352
End ConnectionScrewed, Socket Weld
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS:5352
Pressure/Class RatingClass-2500
Body Material / StandardForged Carbon Steel (A105)
Port OpeningReduced Bore
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (A276 Type 410)
Gland PackingGraphoil
FastenerAlloy Steel (Gr.87/Gr.2H)
GasketSS (304) Spiral Wound graphite filled
End DetailsScrewed Female NPT Threads to ANSI B2.1 1983 or Socket Welded Ends as per ASME B16.11
Test PressureB.T.P.-639 Bar Hyd.
S.T.P.468 Bar Hyd.
Maximum Working Temperature425°C.
CertificationIBR Certified
