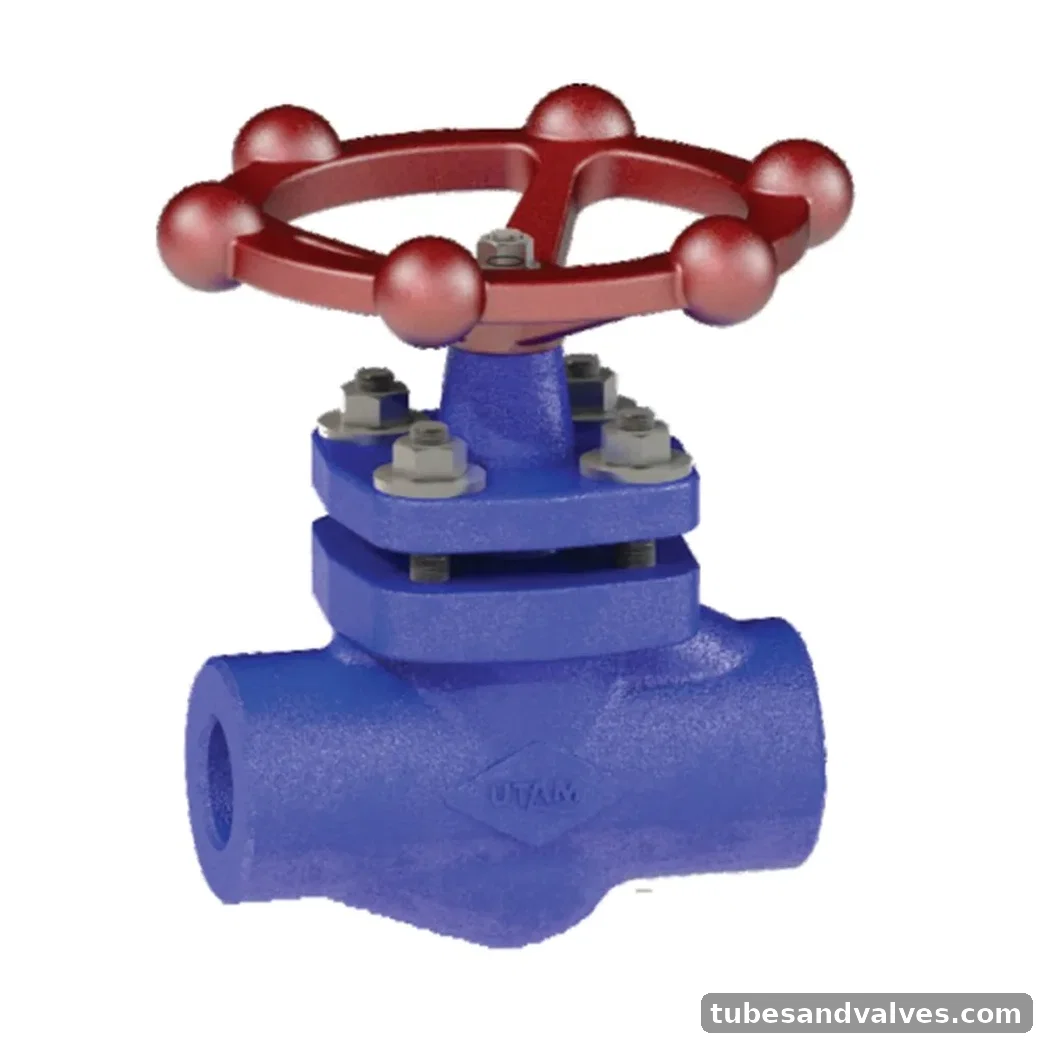

UTAM UV-363 PISTON VALVE
UTAM UV-363 PISTON VALVE. PISTON VALVE. Bolted Bonnet, Seatless & Glandless Piston Type, Rising Stem. Rating: Class- 800. Body/material: Carbon Steel. End connection: Screwed, Socket Weld.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-363
Product FamilyPiston Valve
MaterialCarbon Steel
Pressure / RatingClass- 800
StandardAPI -602
End ConnectionScrewed, Socket Weld
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
ApplicationSteam, superheated steam. L.P.G, Ammonia,acids
Type of PatternStraight Pattern
Product StandardAPI -602
Class RatingClass- 800
Body Material / StandardForged Carbon Steel (ASTM A105)
TrimPiston- SS (AISI- 304)
Sealing RingSS Reinforced Graphite
SpacerSS (ASTM A 276 Type 410)
SpindleSS (ASTM A 276 Type 410)
End DetailsScrewed and Socket Weld
Test PressureB.T.P. - 207 Bar hyd.
S.T.P.152 Bar Hyd.
Max. Working Pressure425°C @ 28.8 bar g
CertificationIBR Certified
