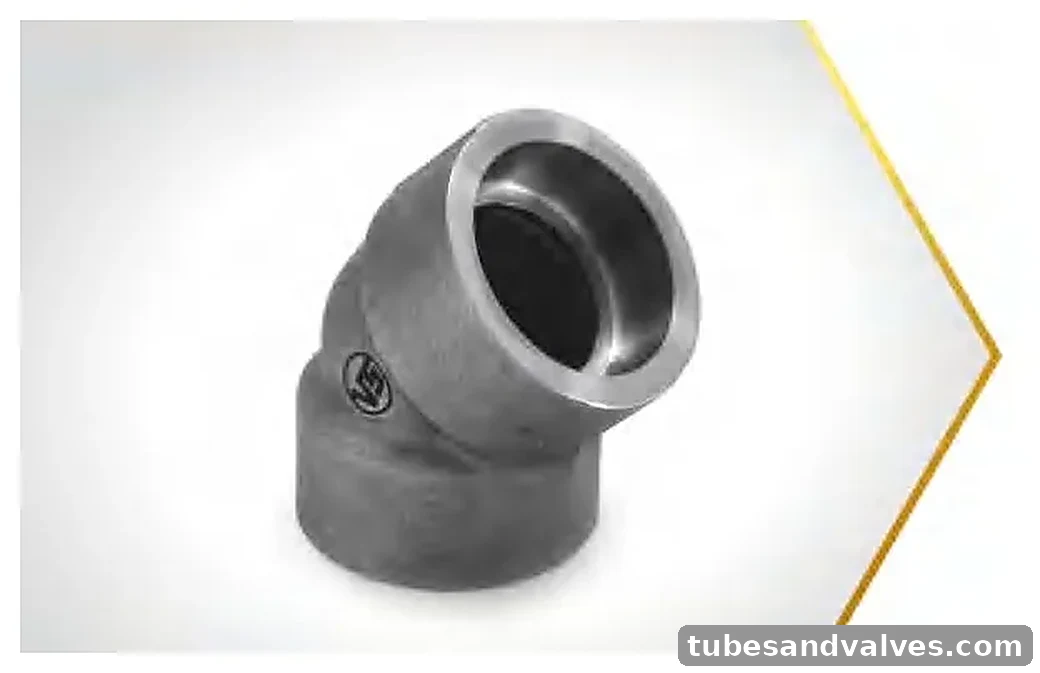

VS VS-3009 Socket Weld Elbow 45°
VS VS-3009 Socket Weld Elbow 45°. Forged steel Socket Weld Elbow 45° in black finish, catalogued for 3000 Lbs. The catalogue provides dimensional data to ASME B16.11-2011 / IS 4712:2011 (Class 20) and shows a Refinery application example. Material: Forged Steel. Rating: 3000 Lbs. End connection: Socket Weld.
Available Size / Variant
Confirm size with quotation
Brand / MakeVS
Catalogue ModelVS-3009
Product FamilyPipe Fitting
MaterialForged Steel
Pressure / Rating3000 Lbs
Standard / SpecificationASME B16.11-2011 / IS 4712:2011 (Class 20)
End ConnectionSocket Weld
VS Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
MaterialForged Steel
FinishBlack
Catalogue Header Class3000 Lbs
Standard ReferenceASME B16.11-2011 / IS 4712:2011 (Class 20)
ConnectionSocket Weld
Application ExampleRefinery
Source Page19
