VS VSMF-1007 Malleable Iron Threaded Bush/Plug CL-150

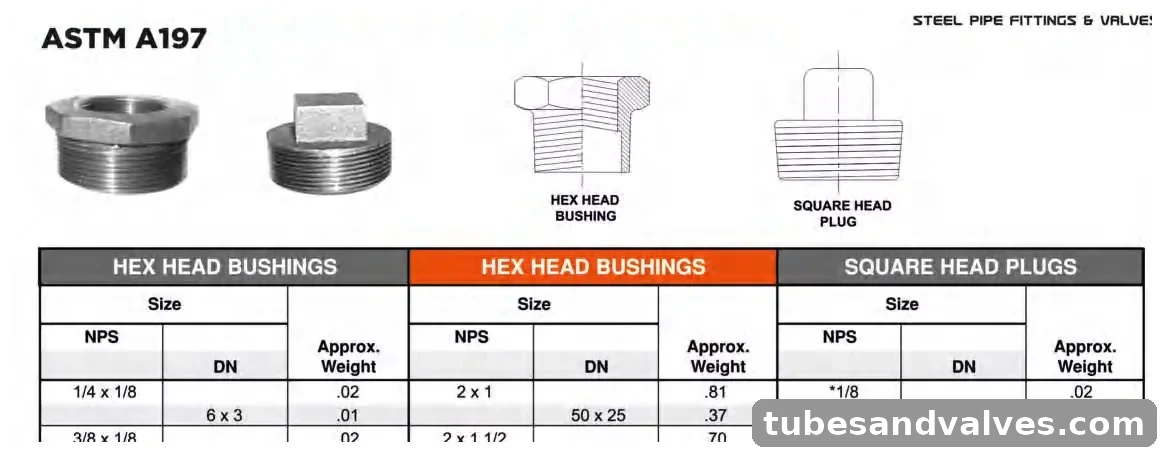

VS VSMF-1007 Malleable Iron Threaded Bush/Plug CL-150. Malleable iron threaded hex-head bushings and square-head plugs in CL-150. The catalogue provides dimensional and approximate-weight tables for the listed sizes. Material: ASTM A197 Cupola Malleable Iron. Rating: CL-150.
Available Size / Variant
Confirm size with quotation
Brand / MakeVS
Catalogue ModelVSMF-1007
Product FamilyPipe Fitting
MaterialASTM A197 Cupola Malleable Iron
Pressure / RatingCL-150
Standard / SpecificationANSI/ASME B16.3; ASME B16.14; ASME B16.39
VS Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
MaterialASTM A197 Cupola Malleable Iron
Zinc CoatingASTM A153
Pressure ClassCL-150
Dimensional StandardsANSI/ASME B16.3; ASME B16.14; ASME B16.39
Thread StandardANSI/ASME B1.20.1 Pipe Threads
TestAir pressure tested under water
Product FamilyHex-head bushings and square-head plugs
Source Pages93
