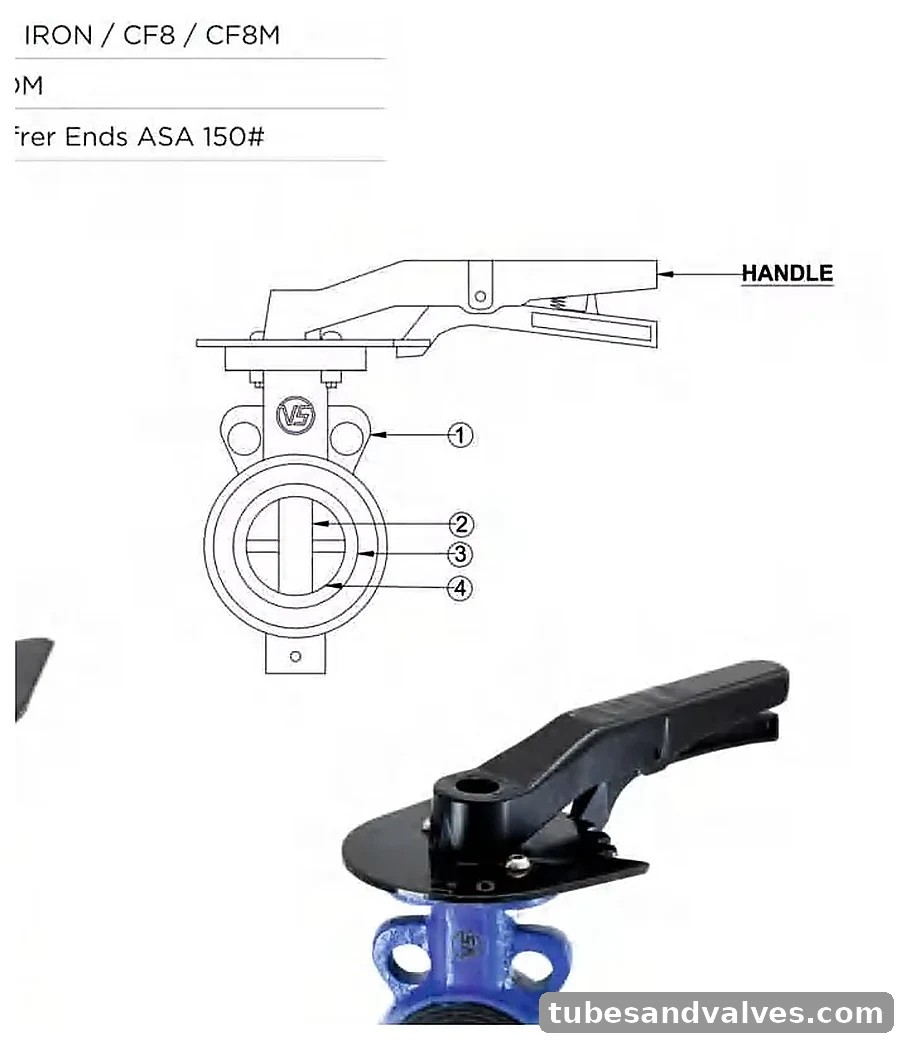

VS VSV-1009 Butterfly Valve EPDM PN-16 (Cast Iron/Cast Steel)
VS VSV-1009 Butterfly Valve EPDM PN-16 (Cast Iron/Cast Steel). PN-16 butterfly valve with EPDM seat, cast iron/cast steel body options and wafer ends for water and oil service. Rating: PN-16. End connection: Wafer Ends ASA 150#.
Available Size / Variant
Confirm size with quotation
Brand / MakeVS
Catalogue ModelVSV-1009
Product FamilyButterfly Valve
Pressure / RatingPN-16
End ConnectionWafer Ends ASA 150#
VS Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Pressure RatingPN-16
Body Pressure16 kg/cm²
Seat Pressure16 kg/cm²
Maximum Working Temperature120°C
Suitable ForWater; Oil
BodyCast Iron / Cast Steel
DiscS.G. Iron / CF8 / CF8M
SeatEPDM
End ConnectionWafer Ends ASA 150#
Source Page81
