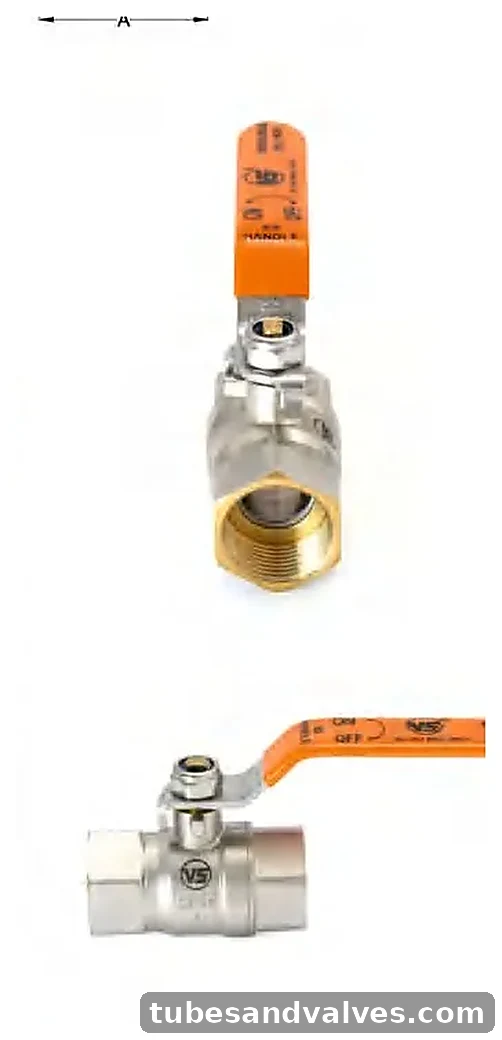

VS VSV-1010 Forged Brass Ball Valve (SECREWED)
VS VSV-1010 Forged Brass Ball Valve (SECREWED). Full-bore two-piece forged brass ball valve with screwed female ends, lever operation, hard chrome plated forged-brass ball, chrome finish and stainless-steel handles. Material: Body: Forged Brass IS 6912 Gr FLB; Bonnet: Forged Brass IS 6912 Gr FLB; Ball: Forged Brass Chrome Plated IS 6912 Gr FLB; Body Seat Ring: PTFE BS EN 12086-1; Thrust Washer: PTFE; Gland Packing: PTFE; Stem: Forged Brass; Lever
Available Size / Variant
1/4 in to 3 in
Brand / MakeVS
Catalogue ModelVSV-1010
Product FamilyBall Valve
MaterialBody: Forged Brass IS 6912 Gr FLB; Bonnet: Forged Brass IS 6912 Gr FLB; Ball: Forged Brass Chrome Plated IS 6912 Gr FLB; Body Seat Ring: PTFE BS EN 12086-1; Thrust Washer: PTFE; Gland Packing: PTFE; Stem: Forged Brass; Lever/Nut: Stainless Steel
End ConnectionScrewed female to IS 554 / BS 21 / ISO 7
VS Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
PortFull Bore
DesignTwo Piece
OperationLever operated, quarter turn
End ConnectionsScrewed female to IS 554 / BS 21 / ISO 7
Test PressureShell 25 kg/cm² (350 psig); Seat 16 kg/cm² (225 psig)
Maximum Working Temperature220°C
Suitable ForWater; Oil
MaterialsBody: Forged Brass IS 6912 Gr FLB; Bonnet: Forged Brass IS 6912 Gr FLB; Ball: Forged Brass Chrome Plated IS 6912 Gr FLB; Body Seat Ring: PTFE BS EN 12086-1; Thrust Washer: PTFE; Gland Packing: PTFE; Stem: Forged Brass; Lever/Nut: Stainless Steel
Size Range1/4 in to 3 in
Source Page82
