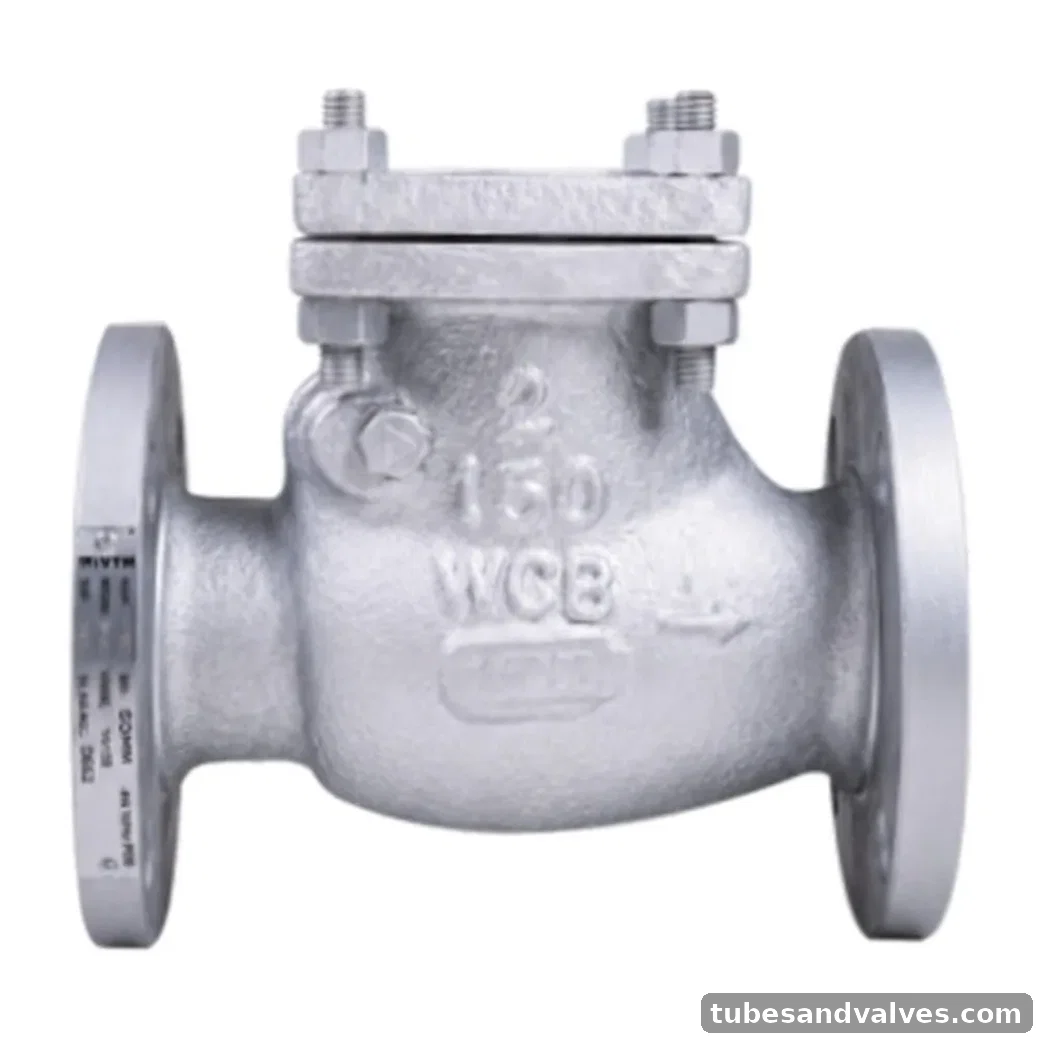

VTM VA-130 WCB SWING CHECK VALVE F/E
VTM VA-130 WCB SWING CHECK VALVE F/E. WCB SWING CHECK VALVE F/E. Rating: Class 150. Body/material: Cast Steel / WCB. End connection: Flanged, Butt Weld.
Available Size / Variant
DN50-DN600
Brand / MakeVTM
Catalogue ModelVA-130
Product FamilyCheck Valve / NRV
MaterialCast Steel / WCB
Pressure / RatingClass 150
StandardAPI 6D / BS 1868 / ASME B16.34
End ConnectionFlanged, Butt Weld
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 6D / BS 1868 / ASME B16.34
Pressure/Class RatingClass 150
Body Material / StandardCast Carbon Steel (ASTM A216 Gr. WCB)
TrimStainless Steel (ASTM A276 Gr. 410 or ASTM A217 Gr. CA-15)
End DetailsFlanges Drilled to ASME B16.5 #150 / Butt-Weld Ends to Suit ASME B16.25
Test PressureShell: 30.0 Kg/cm² Hyd.
Seat22.0 Kg/cm² Hyd. 7.1 Kg/cm² Air.
Face-to-Face StandardAPI 6D / ASME B16.10
Testing StandardAPI 598
End Connection StandardASME B16.5 Class 150
Available SizesDN50-DN600
CertificationIBR
Design StandardAPI 6D / BS 1868 / ASME B16.34
Face-to-FaceAPI 6D / ASME B16.10
Flange StandardASME B16.5 Class 150
Size RangeDN50-DN600
GA DrawingVA-130-IBR-GA-00
