Home / Industrial Valves / 300mm (12") AUDCO BUTTERFLY VALVE CAST IRON BODY SG IRON - 300mm (12") - PN 16

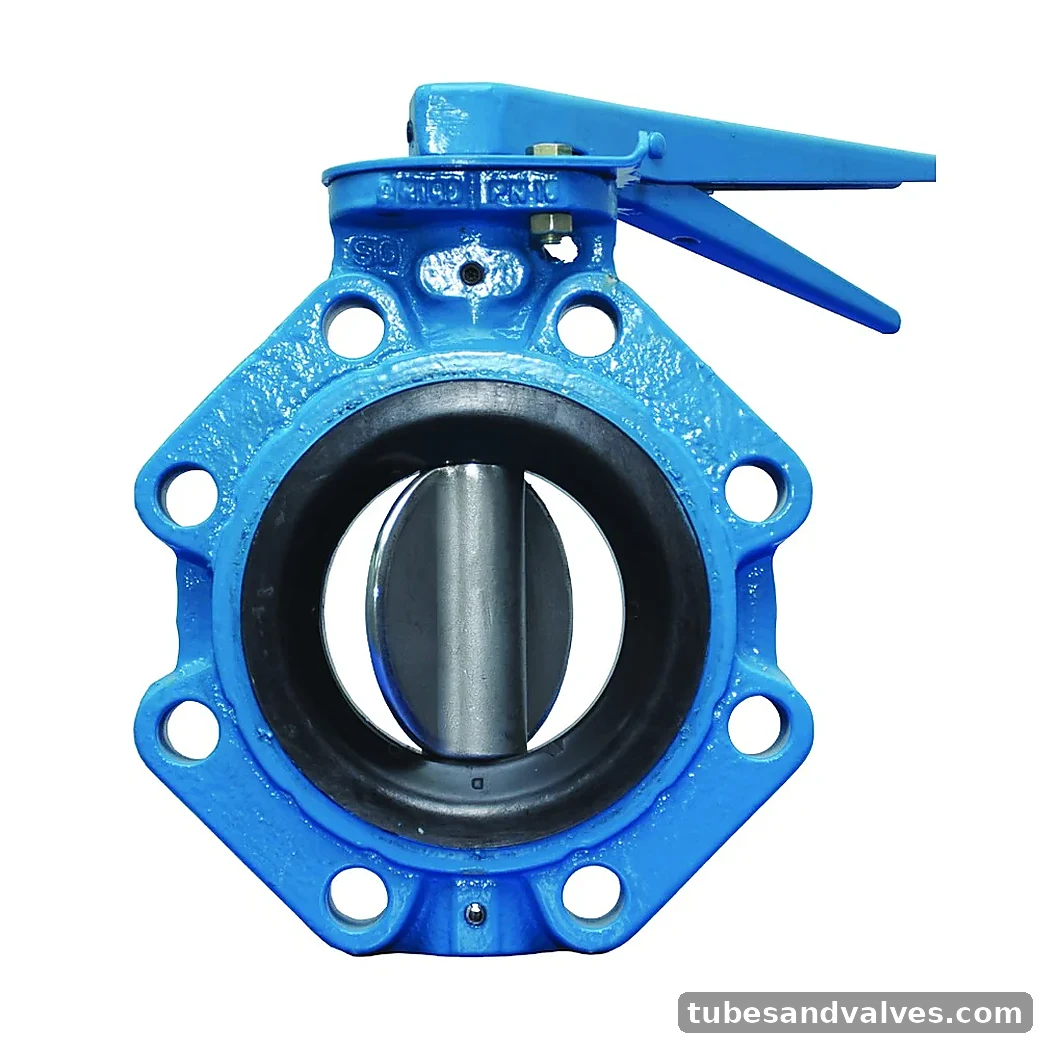

AUDCO PN16 Butterfly Valve - Cast Iron, Black Nitrile, SG Iron coated with nylon, Flow control lever product image

Industrial Valves / Butterfly Valve

300mm (12") AUDCO BUTTERFLY VALVE CAST IRON BODY SG IRON - 300mm (12") - PN 16

300mm (12") AUDCO BUTTERFLY VALVE CAST IRON BODY SG IRON - 300mm (12") - PN 16 is carried forward from the previous Tubes & Valves OpenCart catalogue and is grouped under Valves › Butterfly Valve › Audco Butterfly Valve. Manufacturer / make: AUDCO VALVES. Legacy model / reference: IBF2JS. Please confirm current availability, final technical specification and commercial terms in the quotation before ordering.

AUDCO Catalogue Technical Data

Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.

AUDCO PN16 wafer butterfly valve with an integrally moulded elastomer body liner, vulcanised in-situ and bonded directly to the body. The catalogue describes integral gasket sealing, secondary moulded O-ring shaft sealing and a weatherseal. Catalogue code IBF2JS decodes to a Cast Iron body, wafer flangeless, flow control lever, Black Nitrile liner, SG Iron coated with nylon disc and Stainless Steel 410 with PTFE coating shaft.

Catalogue ModelIBF2JS

Pressure classPN16

Body materialCast Iron

Body styleWafer flangeless

OperationFlow control lever

Body linerBlack Nitrile

Disc materialSG Iron coated with nylon

Shaft materialStainless Steel 410 with PTFE coating

Valve design standardsEN 593

SpecificationAPI 609

SpecificationMSS SP-67

Pressure testing standardEN 12266-1

Available sizesDN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

Available Size / Variant

300mm (12")

Brand / MakeAUDCO VALVES

Product FamilyButterfly Valve

MaterialCast Iron

Pressure / RatingPN 16

Previous Catalogue Technical Data

Manufacturer / MakeAUDCO VALVES

Legacy Model / Ref.IBF2JS

Unit / SKUPCS

Legacy catalogue group: Valves › Butterfly Valve › Audco Butterfly Valve
