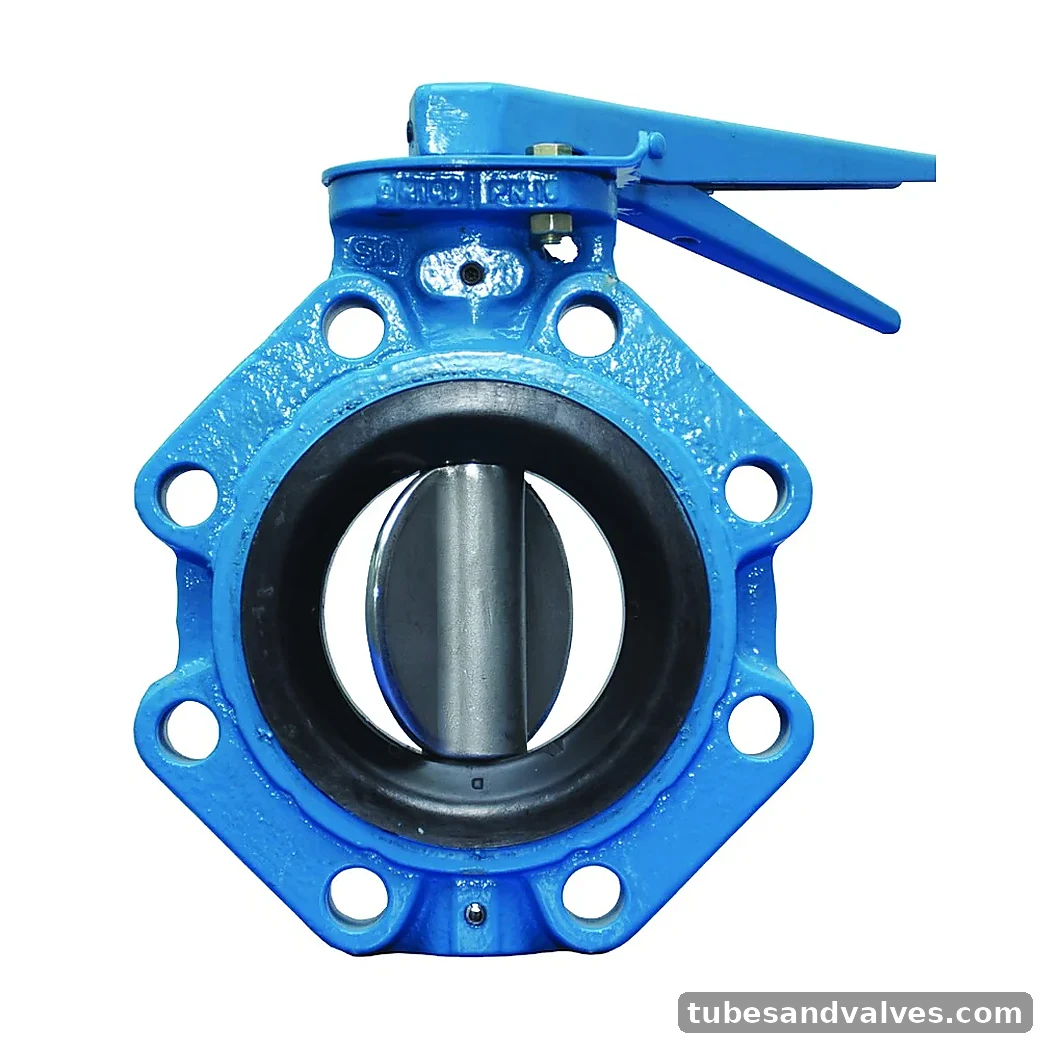

AUDCO PN20 Butterfly Valve - SG Iron, Black Nitrile, Stainless Steel CF8, Flow control lever
AUDCO PN20 wafer butterfly valve with an integrally moulded elastomer body liner, vulcanised in-situ and bonded directly to the body. The catalogue describes integral gasket sealing, secondary moulded O-ring shaft sealing and a weatherseal. Catalogue code GBF2RS decodes to a SG Iron body, wafer flangeless, flow control lever, Black Nitrile liner, Stainless Steel CF8 disc and Stainless Steel 410 with PTFE coating shaft. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
Brand / MakeAUDCO
Product FamilyButterfly Valve
MaterialSG Iron
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelGBF2RS
Pressure classPN20
Body materialSG Iron
Body styleWafer flangeless
OperationFlow control lever
Body linerBlack Nitrile
Disc materialStainless Steel CF8
Shaft materialStainless Steel 410 with PTFE coating
Valve design standardsEN 593
SpecificationAPI 609
SpecificationMSS SP-67
Pressure testing standardEN 12266-1
Available sizesDN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
