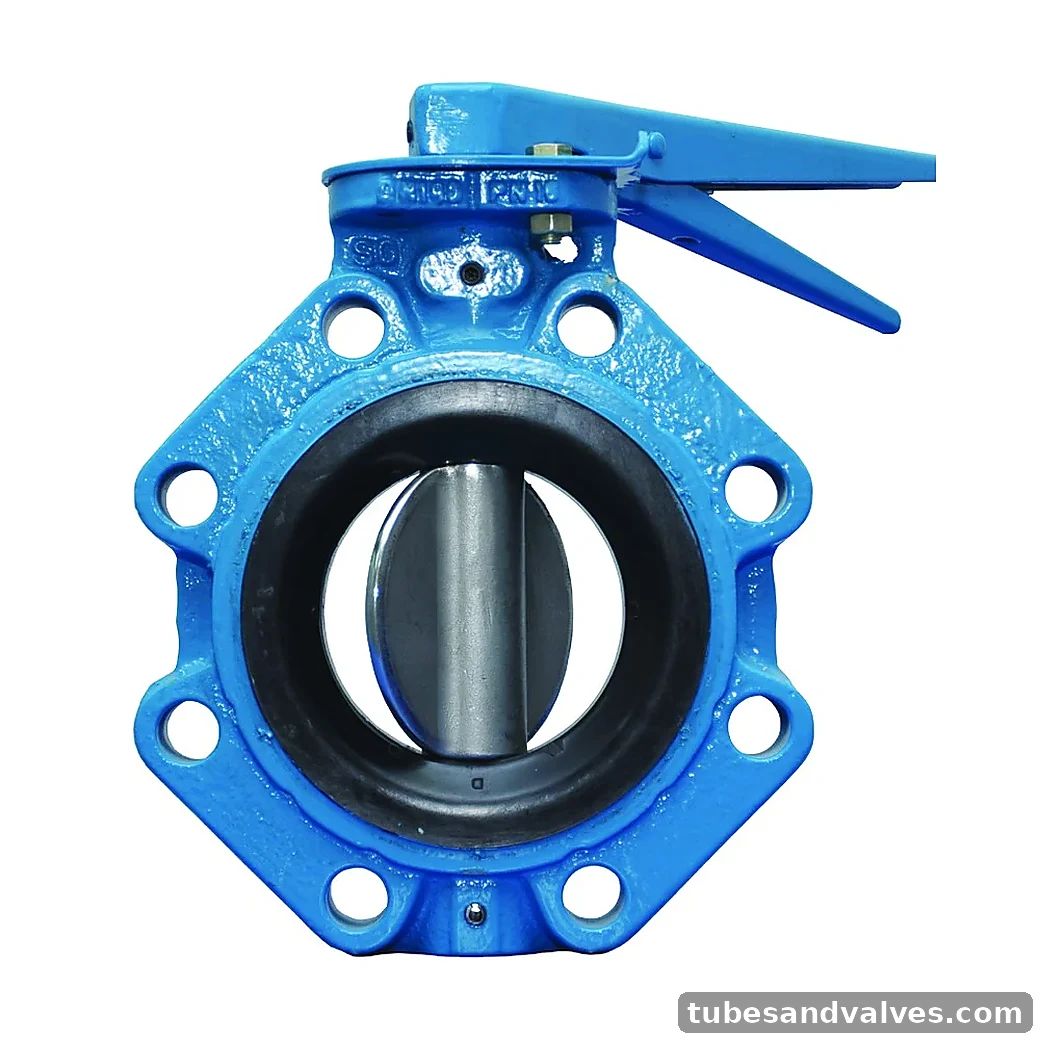

AUDCO PN10 Butterfly Valve - Cast Iron, EPDM, Cast Iron coated with nylon, Gear unit
AUDCO PN10 wafer butterfly valve with an integrally moulded elastomer body liner, vulcanised in-situ and bonded directly to the body. The catalogue describes integral gasket sealing, secondary moulded O-ring shaft sealing and a weatherseal. Catalogue code IBG3CE decodes to a Cast Iron body, wafer flangeless, gear unit, EPDM liner, Cast Iron coated with nylon disc and Carbon Steel EN8 with PTFE coating shaft. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
Brand / MakeAUDCO
Product FamilyButterfly Valve
MaterialCast Iron
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelIBG3CE
Pressure classPN10
Body materialCast Iron
Body styleWafer flangeless
OperationGear unit
Body linerEPDM
Disc materialCast Iron coated with nylon
Shaft materialCarbon Steel EN8 with PTFE coating
Valve design standardsEN 593
SpecificationAPI 609
SpecificationMSS SP-67
Pressure testing standardEN 12266-1
Available sizesDN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
