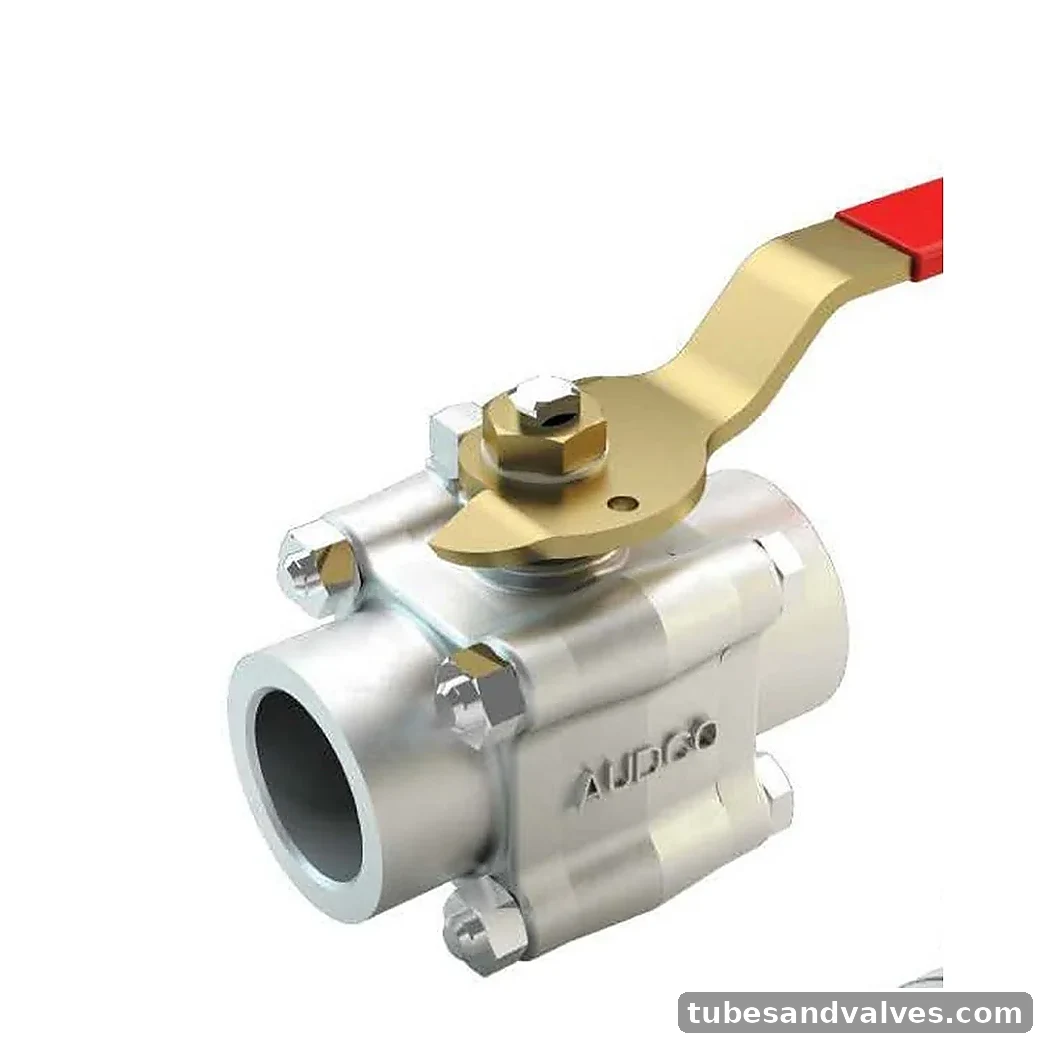

AUDCO Series 44 3-Piece Full Bore Ball Valve - BSPT / NPT
AUDCO 44 series 3-piece floating ball valve in ASTM A216 WCB, with full bore and BSPT / NPT ends. The 44/459 technical bulletin describes anti-blowout stem construction, anti-static design, cavity-pressure-relieving seats, 316 stainless-steel ball as standard and interchangeable seat/body-seal options. This catalogue variant is standard. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN15, DN20, DN25, DN32, DN40, DN50
Brand / MakeAUDCO
Product FamilyBall Valve
MaterialASTM A216 WCB
Pressure / Rating800
Standard / Specification44
End ConnectionBSPT / NPT
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelLF4446TTAT/BT
Series44
Technical rating800
Body materialASTM A216 WCB
Construction3-piece
BoreFull
End connectionBSPT / NPT
Fire-safeNo
Ball316 stainless steel (catalogue standard)
Stem designAnti-blowout
Anti-static designYes
Seat designCavity pressure relieving
Available sizesDN15, DN20, DN25, DN32, DN40, DN50
