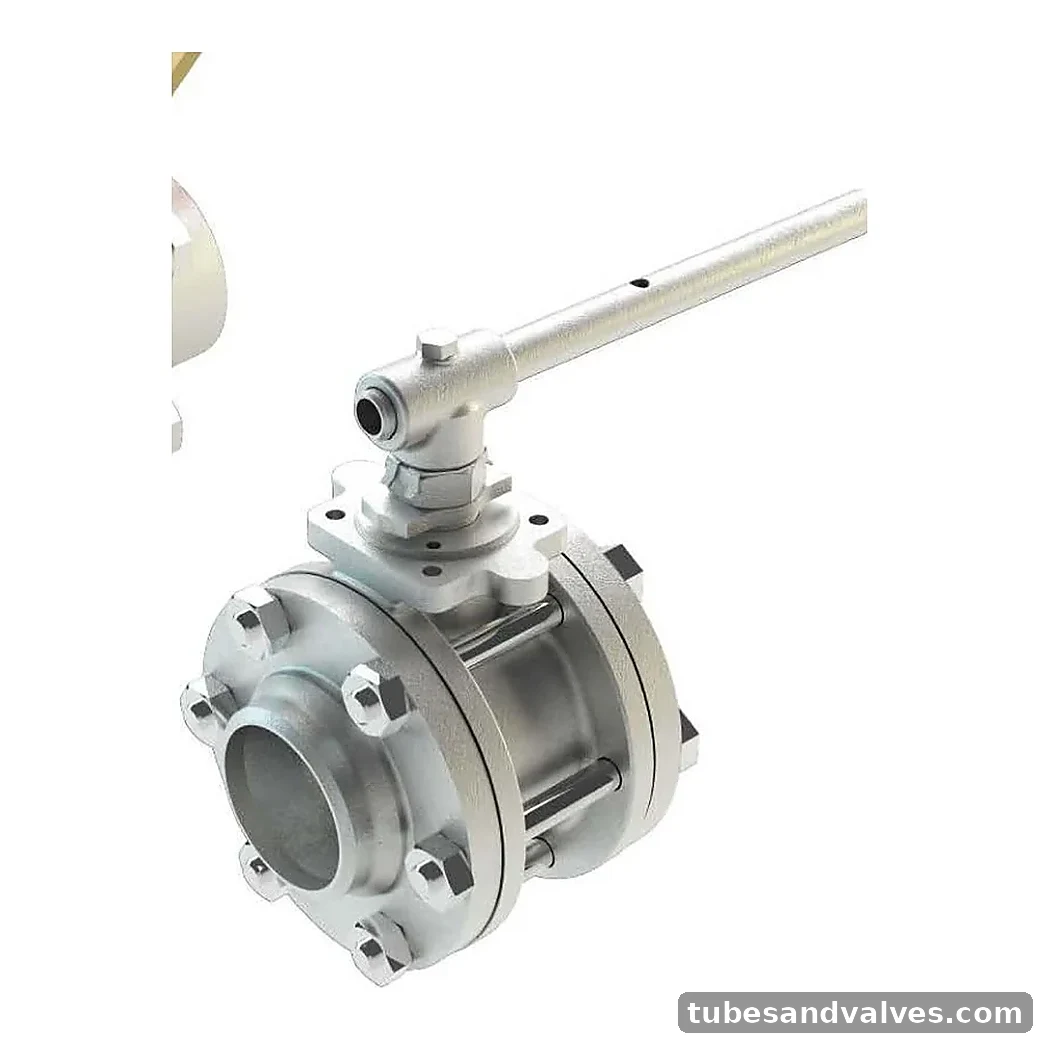

AUDCO Series 44 3-Piece Reduced Bore Ball Valve - Flanged
AUDCO 44 series 3-piece floating ball valve in ASTM A351 CF8M, with reduced bore and Flanged ends. The 44/459 technical bulletin describes anti-blowout stem construction, anti-static design, cavity-pressure-relieving seats, 316 stainless-steel ball as standard and interchangeable seat/body-seal options. This catalogue variant is standard. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN15, DN20, DN25, DN32, DN40, DN50
Brand / MakeAUDCO
Product FamilyBall Valve
MaterialASTM A351 CF8M
Pressure / Rating150
Standard / Specification44
End ConnectionFlanged
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelLR4466TTF1
Series44
Technical rating150
Body materialASTM A351 CF8M
Construction3-piece
BoreReduced
End connectionFlanged
Fire-safeNo
Ball316 stainless steel (catalogue standard)
Stem designAnti-blowout
Anti-static designYes
Seat designCavity pressure relieving
Available sizesDN15, DN20, DN25, DN32, DN40, DN50
