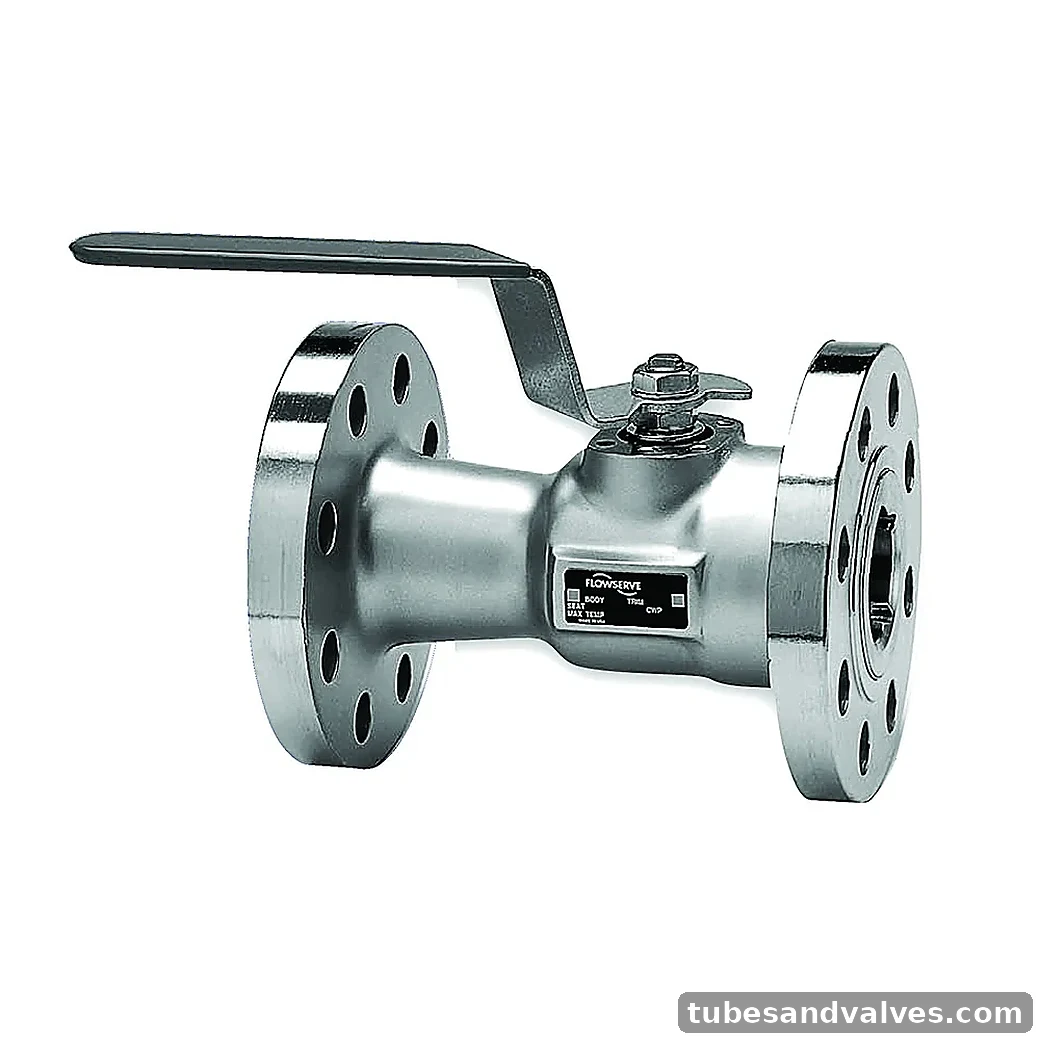

AUDCO Series 52 Fire-Safe 1-Piece Reduced Bore Flanged Ball Valve
AUDCO Series 52 reduced-bore fire-safe flanged ball valve in ASTM A351 CF8M. The 51/52 technical bulletin specifies a reduced-bore design to BS EN ISO 17292 / API 6D, anti-blowout stem, ISO 5211 actuator mounting, anti-static construction, a 316 stainless-steel ball and fire-safe body sealing with a metal-to-metal secondary seal. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN150, DN200
Brand / MakeAUDCO
Product FamilyBall Valve
MaterialASTM A351 CF8M
Pressure / Rating300
Standard / Specification52
End ConnectionFlanged
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelLR5266TT/GF2
Series52
Technical rating300
Body materialASTM A351 CF8M
Construction1-piece
BoreReduced
End connectionFlanged
Fire-safeYes
Design standardBS EN ISO 17292 / API 6D
Actuator mountingISO 5211
Ball316 stainless steel
Body sealFlexible graphite / fire-safe secondary metal seal
Stem designAnti-blowout and anti-static
Available sizesDN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN150, DN200
