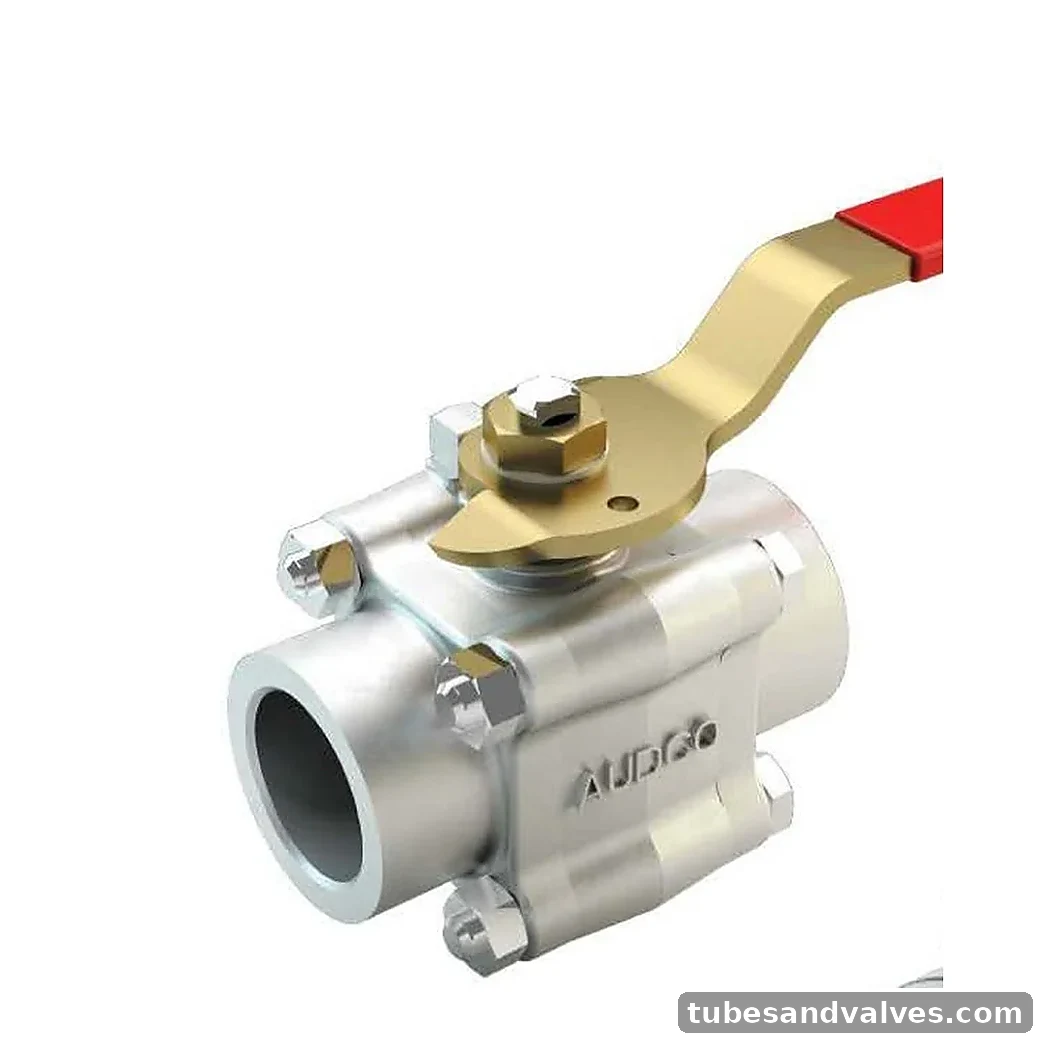

AUDCO Series F44 3-Piece Reduced Bore Ball Valve - BSPT / NPT
AUDCO F44 series 3-piece floating ball valve in ASTM A351 CF8M, with reduced bore and BSPT / NPT ends. The 44/459 technical bulletin describes anti-blowout stem construction, anti-static design, cavity-pressure-relieving seats, 316 stainless-steel ball as standard and interchangeable seat/body-seal options. This catalogue variant is fire-safe. Please confirm current availability and final quoted specification before ordering.
Available Size / Variant
DN15, DN20, DN25, DN32, DN40, DN50
Brand / MakeAUDCO
Product FamilyBall Valve
MaterialASTM A351 CF8M
Pressure / Rating800
Standard / SpecificationF44
End ConnectionBSPT / NPT
AUDCO Catalogue Technical Data
Technical data below is carried from the supplied manufacturer catalogue file. Please confirm current availability and final quoted specification before ordering.
Catalogue ModelLRF4466TTGAT/BT
SeriesF44
Technical rating800
Body materialASTM A351 CF8M
Construction3-piece
BoreReduced
End connectionBSPT / NPT
Fire-safeYes
Ball316 stainless steel (catalogue standard)
Stem designAnti-blowout
Anti-static designYes
Seat designCavity pressure relieving
Fire-safe featureSecondary metal-to-metal seating design
Available sizesDN15, DN20, DN25, DN32, DN40, DN50
