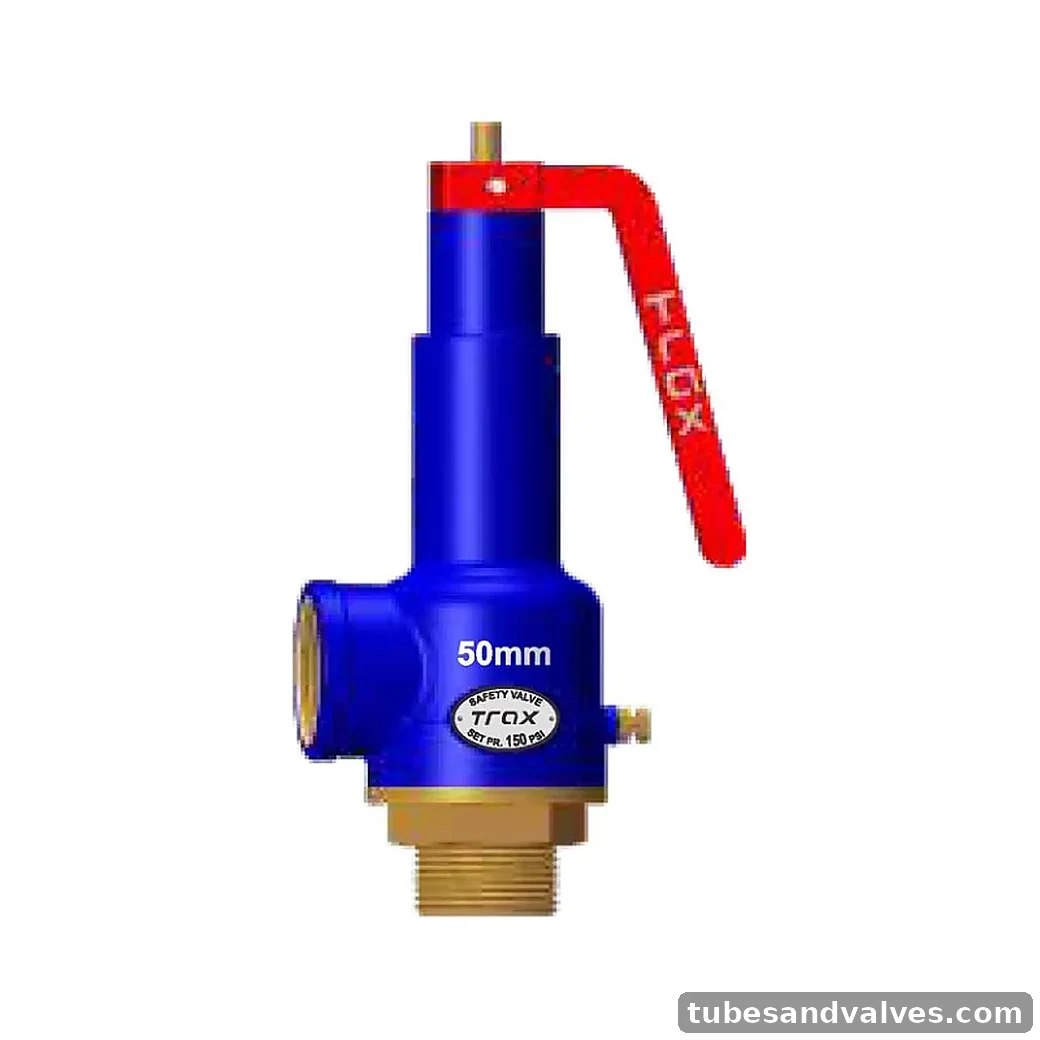

TRAX TX-101 Bronze Safety Valve Screwed
TRAX TX-101 Bronze Safety Valve Screwed. Right-angle bronze safety valve with spring-loaded mechanism and enclosed discharge. The screwed version has a male BSP parallel inlet and female BSP parallel outlet. Material: Bronze, BS:1400 LG2; Chamber Material: S.G. Iron, ASTM A536-1980; Trim: Copper Alloy / Stainless Steel 304 AISI; Pattern: Right angle, spring loaded, enclosed discharge; Inlet: Screwed male BSP parallel to BS:21; Outlet: Screwed fem
Available Size / Variant
Confirm size with quotation
Brand / MakeTRAX
Catalogue ModelTX-101
Product FamilySafety / Relief Valve
MaterialBronze, BS:1400 LG2; Chamber Material: S.G. Iron, ASTM A536-1980; Trim: Copper Alloy / Stainless Steel 304 AISI; Pattern: Right angle, spring loaded, enclosed discharge; Inlet: Screwed male BSP parallel to BS:21; Outlet: Screwed female BSP parallel to BS:21; Working Pressure: Max. 10.34 bar at 225°C; Listed Sizes: 15 mm; 20 mm; 25 mm; 40 mm; 50 mm
TRAX Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body MaterialBronze, BS:1400 LG2; Chamber Material: S.G. Iron, ASTM A536-1980; Trim: Copper Alloy / Stainless Steel 304 AISI; Pattern: Right angle, spring loaded, enclosed discharge; Inlet: Screwed male BSP parallel to BS:21; Outlet: Screwed female BSP parallel to BS:21; Working Pressure: Max. 10.34 bar at 225°C; Listed Sizes: 15 mm; 20 mm; 25 mm; 40 mm; 50 mm
