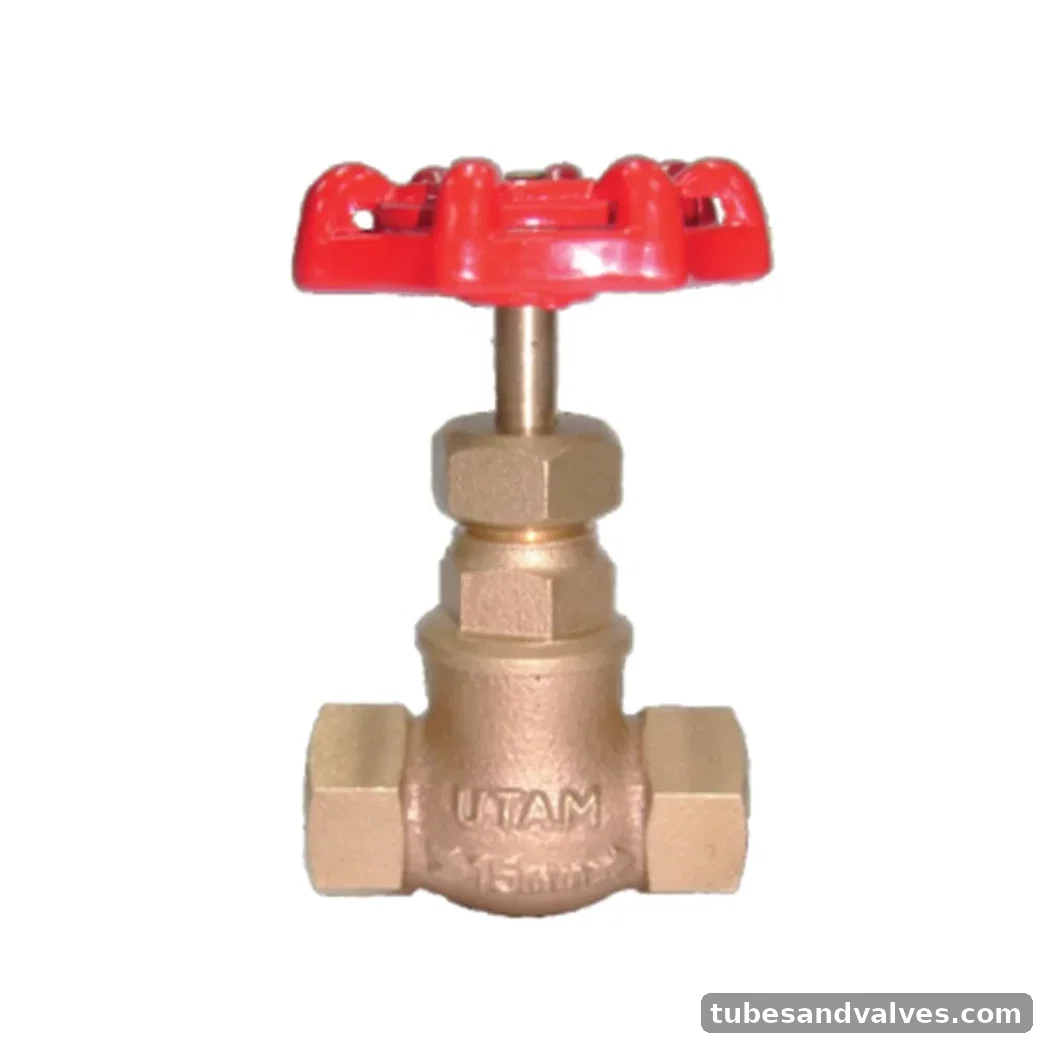

UTAM UV-100-W GLOBE VALVE
UTAM UV-100-W GLOBE VALVE. GLOBE VALVE. Screwed in Bonnet, Inside Screw, Rising Stem. Rating: Class-1. Body/material: Gun Metal. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-100-W
Product FamilyGlobe Valve
MaterialGun Metal
Pressure / RatingClass-1
StandardIS:778
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardIS:778
Pressure/Class RatingClass-1
Body Material / StandardGM (IS:318 LTB2) li·i•
Type of SeatIntegral Seat
Type of DiscRenewable Disc
TrimCu-Alloy
Gland PackingAsbestos/Teflon (PTFE) r· 11~.• - ■
End DetailsScrewed Female Threads to IS:554 (Parallel)...,.
Test PressureB.T.P.- 1.5 Mpa Hyd.
S.T.P.1.0 Mpa Hyd.
