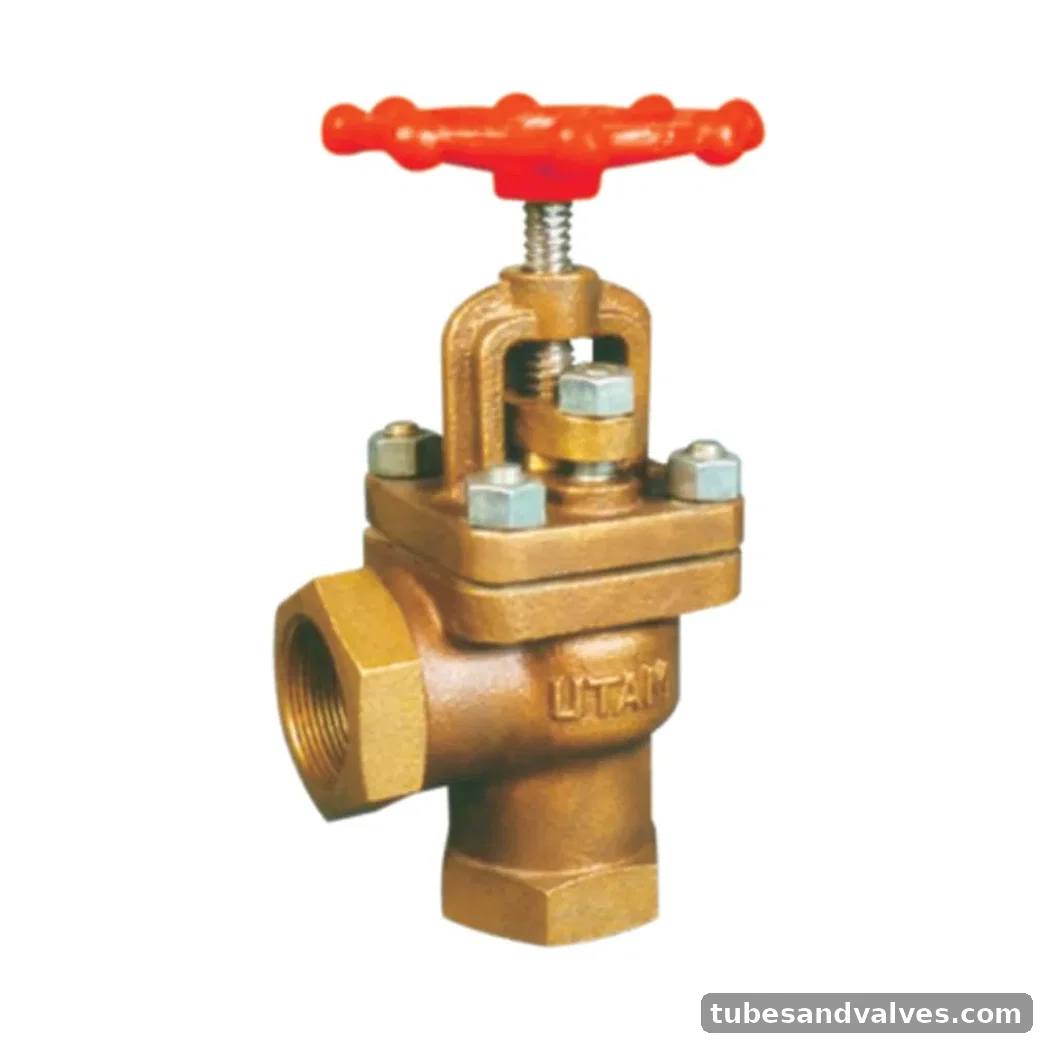

UTAM UV-111-S AUXILIARY STEAM STOP VALVE
UTAM UV-111-S AUXILIARY STEAM STOP VALVE. AUXILIARY STEAM STOP VALVE. Screwed in Bonnet, O/S & Yoke Type, 1g Stem. Rating: Max. BOP 17.24 Bar at 225°C. Body/material: Bronze. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-111-S
Product FamilyGlobe Valve
MaterialBronze
Pressure / RatingMax. BOP 17.24 Bar at 225°C
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternRight Angle Pattern
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (ASTM A276 Type4i10)
Gland PackingGraphited Asbestos
End DetailsScrewed Female BSP Taper Threads to BS:21
Working PressureMax. BOP 17.24 Bar at 225°C
Test PressureTested to 34.5 Bar Hyd.
CertificationIBR Certified
