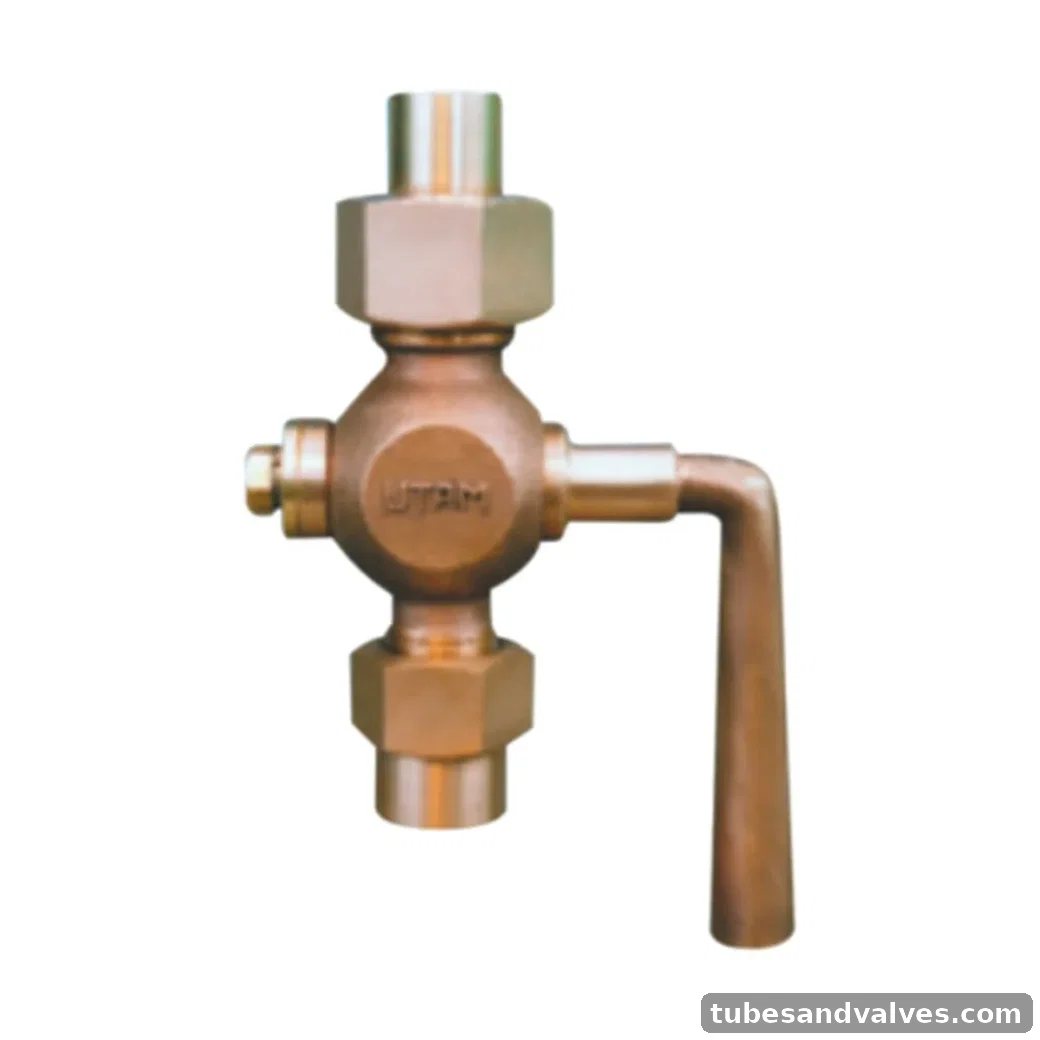

UTAM UV-129-S PRESSURE GAUGE VALVE
UTAM UV-129-S PRESSURE GAUGE VALVE. PRESSURE GAUGE VALVE. Round Barrel, Metallic handle. Rating: Max. BOP 17.24 Bar at 225°C.. Body/material: Bronze. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-129-S
Product FamilyValve / Stop Valve
MaterialBronze
Pressure / RatingMax. BOP 17.24 Bar at 225°C.
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
End DetailsScrewed Female BSP Parallel Threads to BS:21
Working PressureMax. BOP 17.24 Bar at 225°C.
Test PressureShell Test Pressure 34.5 Bar Hyd.
CertificationIBR Certified
