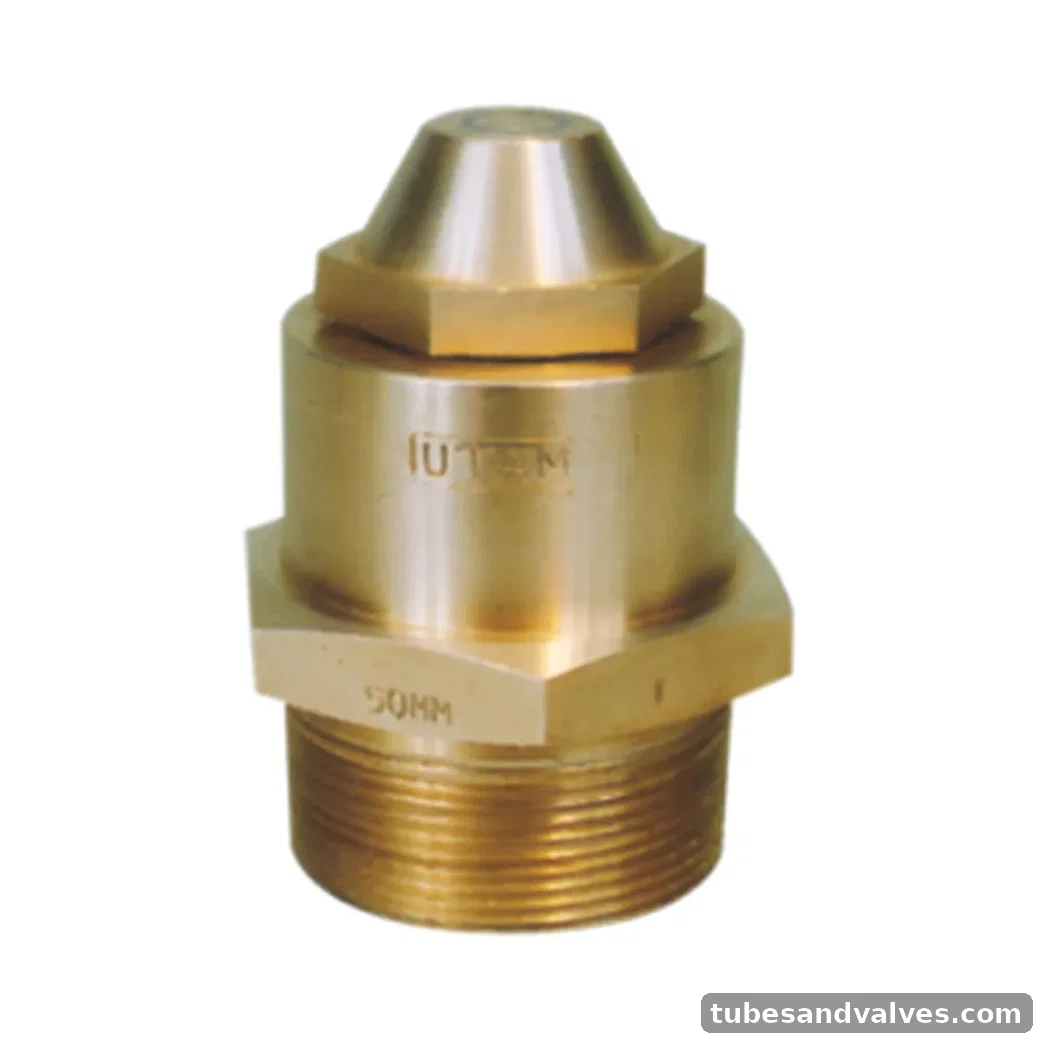

UTAM UV-133-S FUSIBLE PLUG
UTAM UV-133-S FUSIBLE PLUG. FUSIBLE PLUG. Two Piece Design. Rating: 17.24 Bar Steam. Body/material: Bronze. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-133-S
Product FamilyFusible Plug
MaterialBronze
Pressure / Rating17.24 Bar Steam
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
End DetailsScrewed Male BSP Taper Threads to BS:21
Working Pressure17.24 Bar Steam
Test Pressure34.5 Bar Hyd. Melting Temperature of Fusible Alloy 270°C.
CertificationIBR Certified
