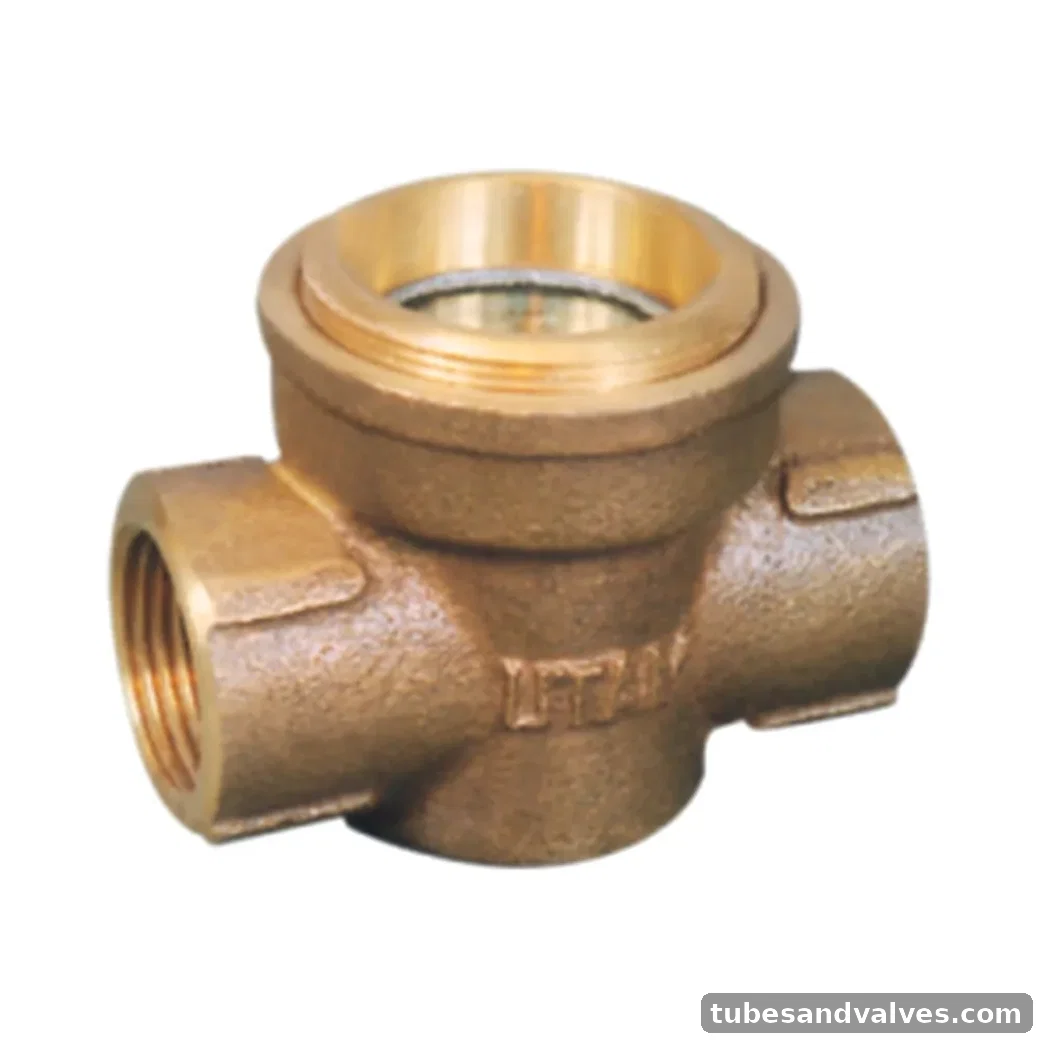

UTAM UV-158-S SIGHT GLASS
UTAM UV-158-S SIGHT GLASS. GHT GLASS. ngle Window with Toughened Glass. Rating: Max. BOP 17.24 Bar at 225°C. Body/material: Bronze. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-158-S
Product FamilySight Glass
MaterialBronze
Pressure / RatingMax. BOP 17.24 Bar at 225°C
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardBronze (IBR Clause 282 (a) (IV) Gr.B)
Product DescriptionSingle Window with Toughened Glass
End DetailsScrewed Female BSP Parallel Threads to BS:21
Working PressureMax. BOP 17.24 Bar at 225°C
Test Pressure34.5 Bar Hyd.
CertificationIBR Certified
