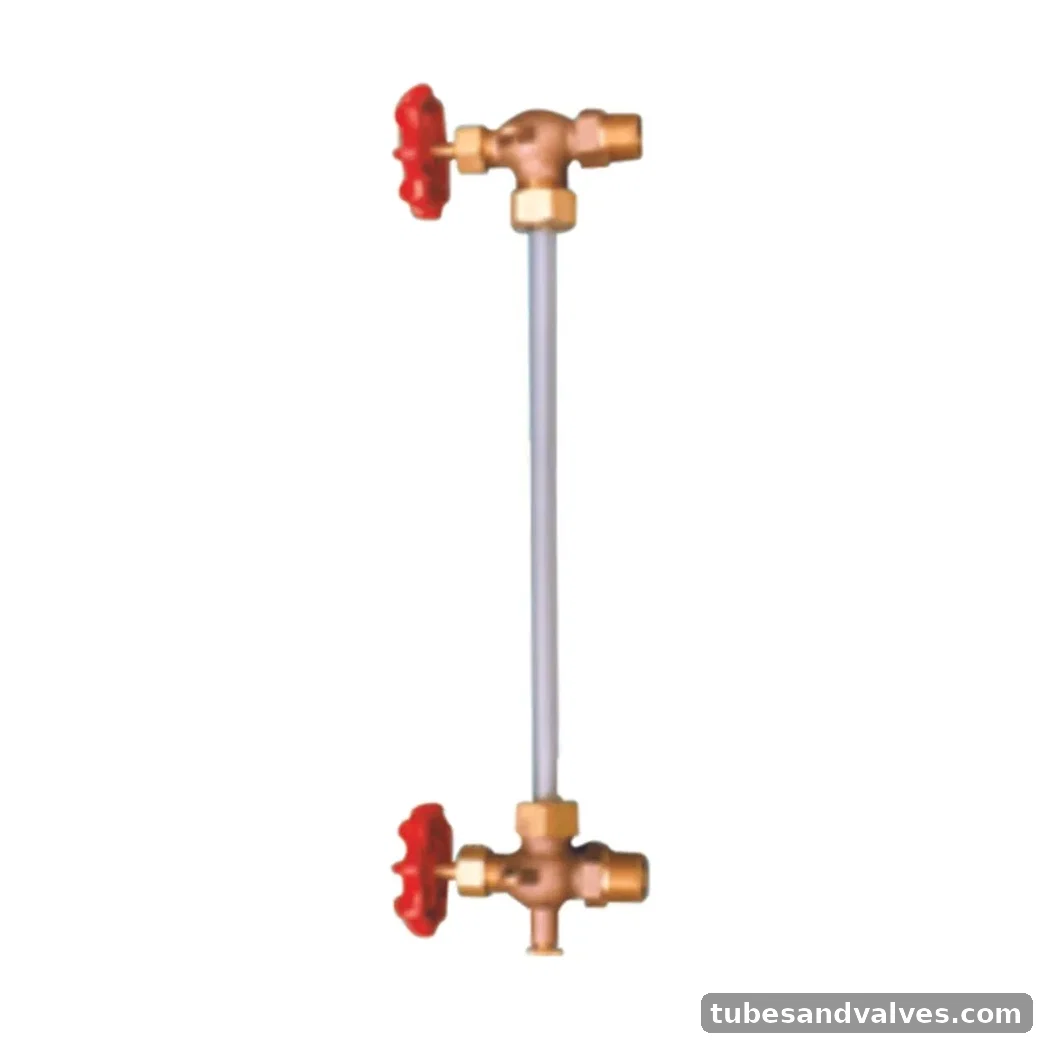

UTAM UV-19-S WATER LEVEL GAUGE
UTAM UV-19-S WATER LEVEL GAUGE. WATER LEVEL GAUGE. Consisting of Steam Arm,Water Arm & Drain valve. Rating: Max. B.O.P.- 7 Bar at 225°C. Body/material: Gun Metal. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-19-S
Product FamilyWater Level Gauge
MaterialGun Metal
Pressure / RatingMax. B.O.P.- 7 Bar at 225°C
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Pressure/Class RatingMax. B.O.P.- 7 Bar at 225°C
Body Material / StandardGM (BS:1400 LG2)
Type of SeatIntegral Seat
TrimCu-Alloy
End DetailsScrewed Female BSP Parallel Threads to BS:21
Test PressureB.T.P.- 16 Bar Hyd.
