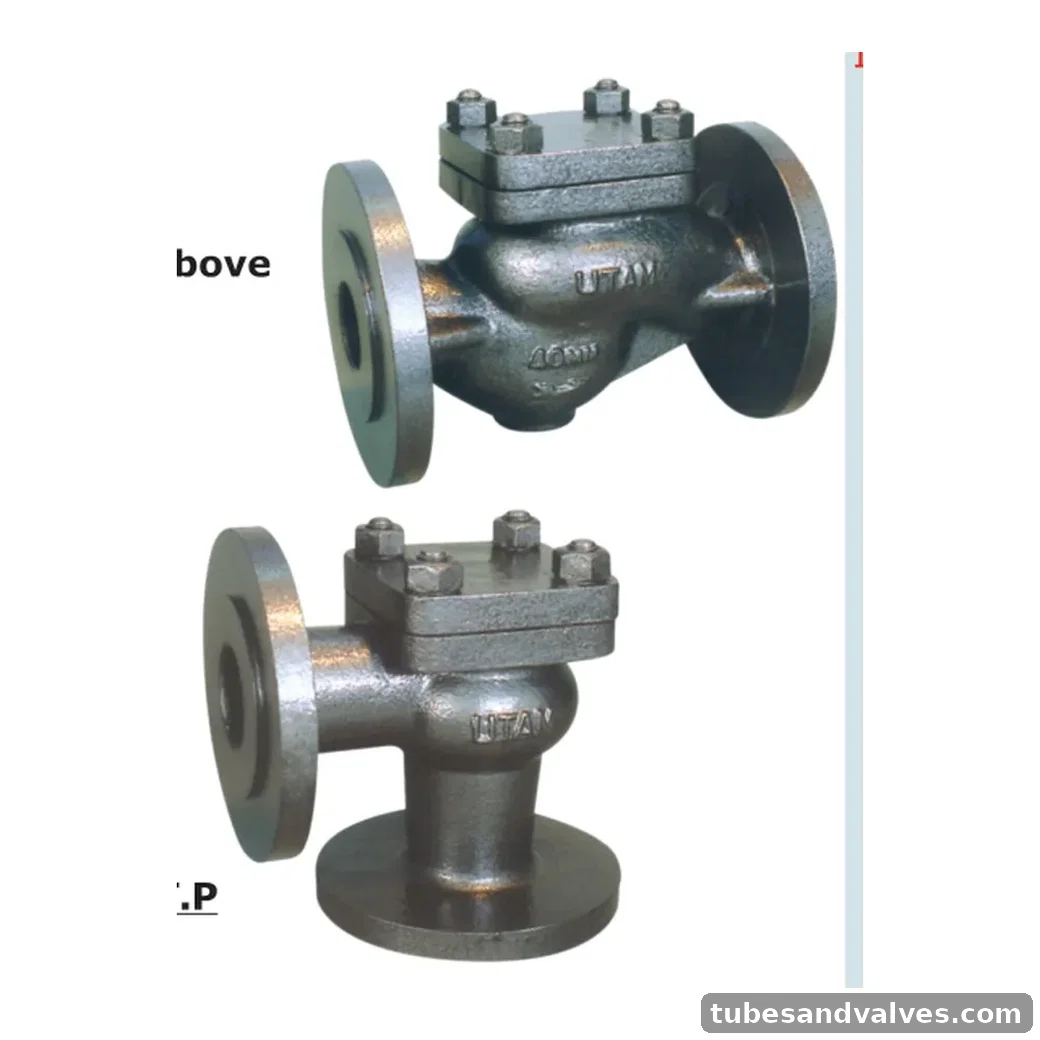

UTAM UV-203-S/UV-207-S HORIZONTAL LIFT CHECK VALVE
UTAM UV-203-S/UV-207-S HORIZONTAL LIFT CHECK VALVE. HORIZONTAL LIFT CHECK VALVE. Bolted Cover. Rating: PN-16 upto 6" Size, PN-10 for Size 8" & above. Body/material: Ductile Iron. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-203-S/UV-207-S
Product FamilyCheck Valve / NRV
MaterialDuctile Iron
Pressure / RatingPN-16 upto 6" Size, PN-10 for Size 8" & above
StandardBS:5153
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Type of PatternStraight Pattern
Product StandardBS:5153
Pressure/Class RatingPN-16 upto 6" Size, PN-10 for Size 8" & above
Body Material / StandardS.G. Iron (ASTM A536-1980)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (ASTM A276 Type 410)
FastenerCarbon Steel (BS:916)
GasketCompressed Asbestos Fiber
End DetailsFlanges as per DIN:2533 PN-16 RF Size upto 6" & DIN:2532 PN-10 RF Size 8" & above
Test PressureFor PN-16 For PN-10 B.T.P. 24 Bar Hyd. B.T.P. 15 Bar Hyd. S.T.P. 16 Bar Hyd. S.T.P. 10 Bar Hyd.
Maximum Working Temperature225° C
CertificationIBR Certified
