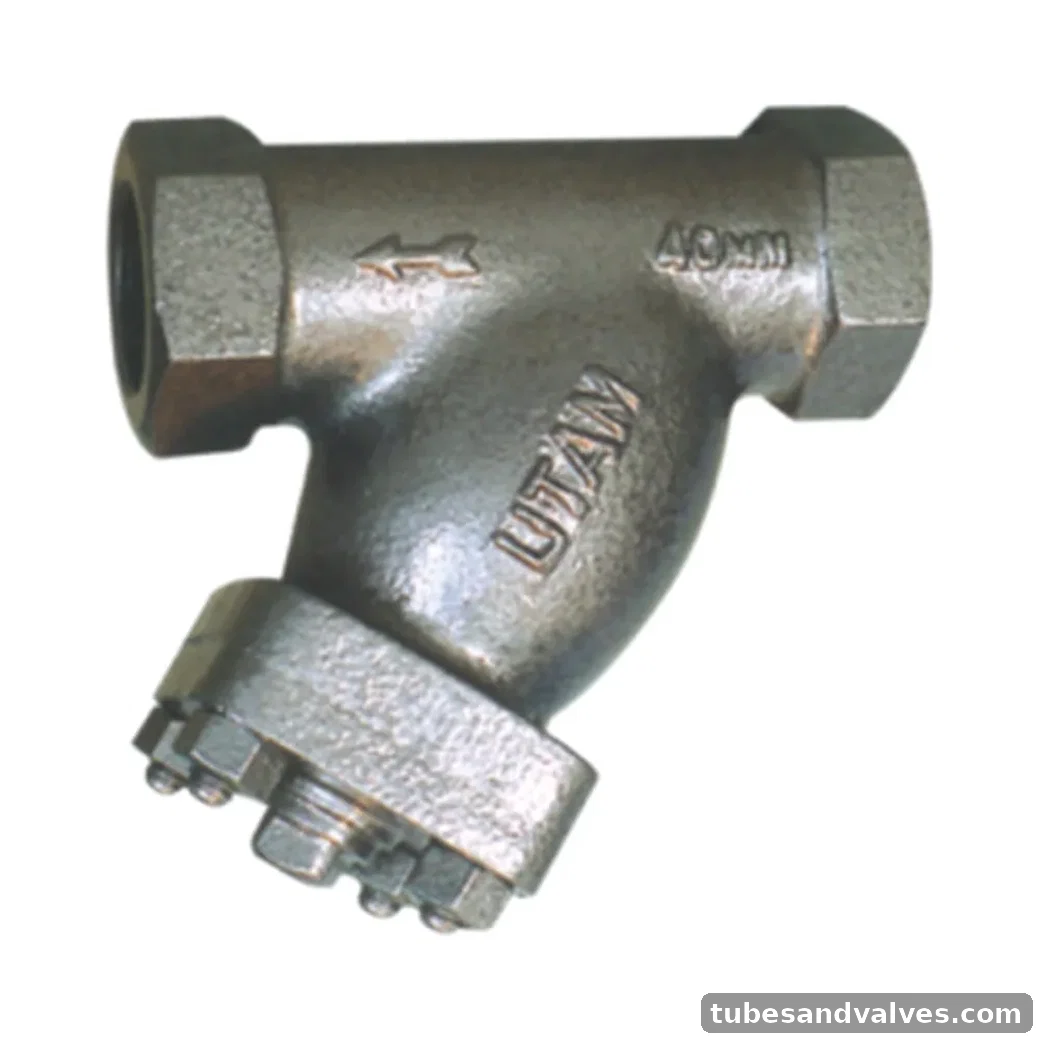

UTAM UV-204-S Y-TYPE STRAINER
UTAM UV-204-S Y-TYPE STRAINER. Y-TYPE STRAINER. Y-Type, Screwed in Cover; Bolted Cover 4" & above. Rating: Max. BOP 13 Bar. Body/material: Ductile Iron. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-204-S
Product FamilyY Strainer
MaterialDuctile Iron
Pressure / RatingMax. BOP 13 Bar
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Body Material / StandardS.G. Iron (ASTM A536-1980)
Product DescriptionY-Type, Screwed in Cover
Additional catalogue detailBolted Cover 4" & above
TrimSS (Type 304) screen having 1 mm diameter perforations
End DetailsScrewed Female BSP Parallel Threads to BS:21
Working PressureMax. BOP 13 Bar
Test Pressure26 Bar Hyd.
Maximum Working Temperature225°C
CertificationIBR Certified
