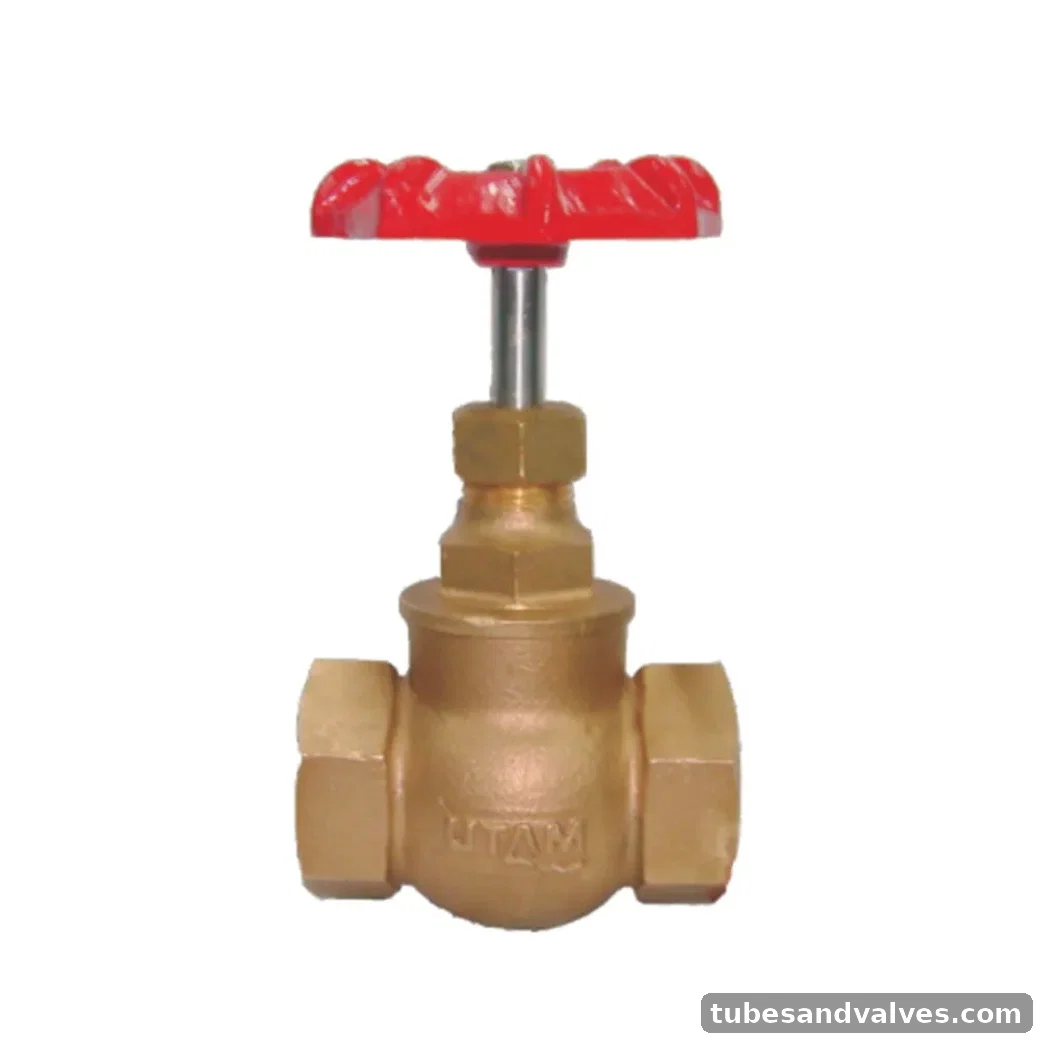

UTAM UV-35-S GLOBE VALVE (No.5)
UTAM UV-35-S GLOBE VALVE (No.5). GLOBE VALVE (No. 5). Screwed in Bonnet, Inside Screw, Rising Stem. Rating: PN-25. Body/material: Gun Metal. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-35-S
Product FamilyGlobe Valve
MaterialGun Metal
Pressure / RatingPN-25
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Pressure/Class RatingPN-25
Body Material / StandardGM (BS:1400 LG2)
Type of SeatRenewable Seat
Type of DiscRenewable Disc
TrimSS (A 276 Type 410)
Gland PackingGraphited Asbestos
End DetailsScrewed Female BSP Parallel Threads to BS:21
Test PressureB.T.P.- 37.5 Bar Hyd.
S.T.P.27.5 Bar Hyd.
