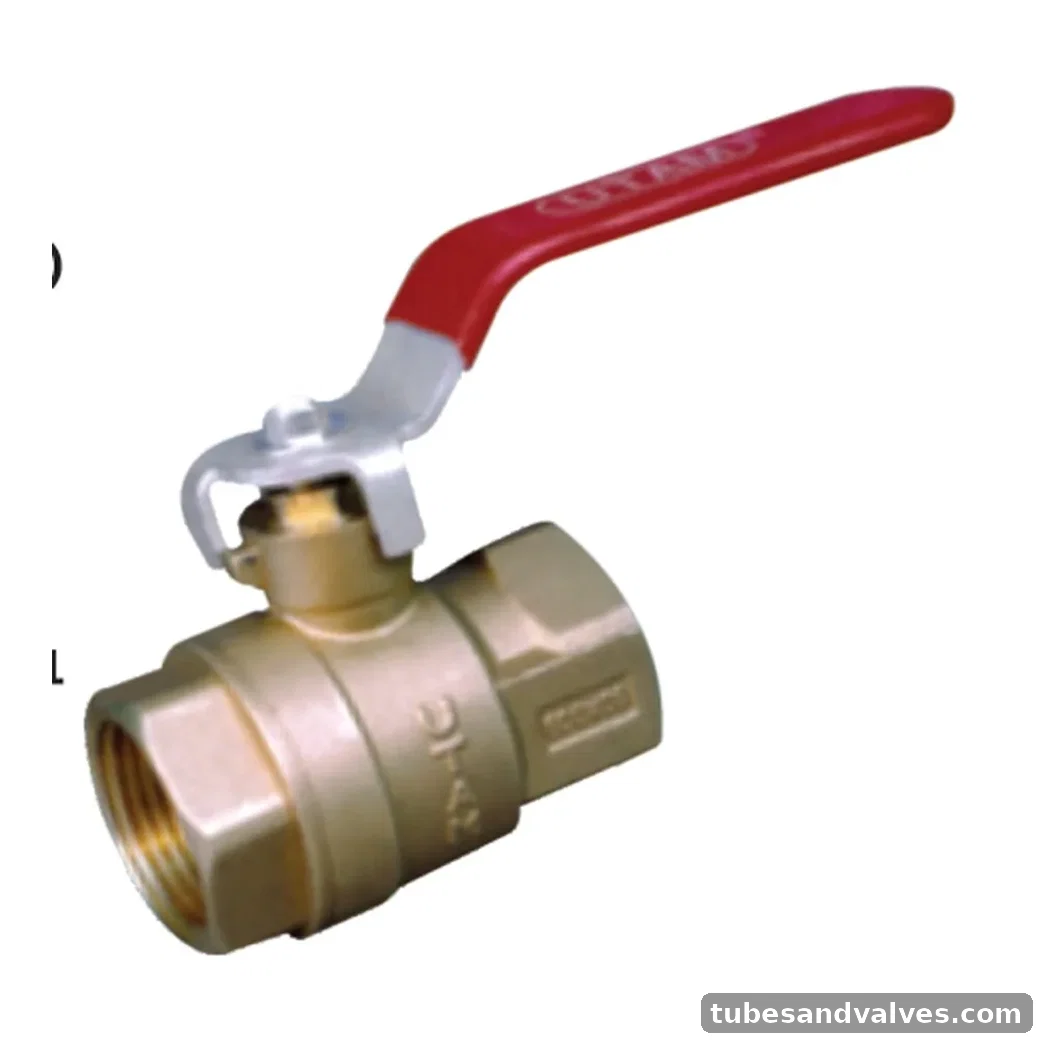

UTAM UV-44-W FORGED BRASS BALL VALVE
UTAM UV-44-W FORGED BRASS BALL VALVE. FORGED BRASS BALL VALVE. Teflon (PTFE) Seats & Seals, Lever Operated. Rating: 25. Body/material: Brass. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-44-W
Product FamilyBall Valve
MaterialBrass
Pressure / Rating25
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
PN25
Body Material / StandardForged Brass (IS:6912 Gr FLB)
Port OpeningFull Bore
Type of SeatRenewable Seat
TrimCu-Alloy Ball (Nickel Plated) & Stem
Gland PackingTeflon (PTFE)
End DetailsScrewed Female BSP Parallel Threads to BS:21
Test PressureB.T.P.- 37.5 Bar Hyd.
S.T.P.27.5 Bar Hyd.
