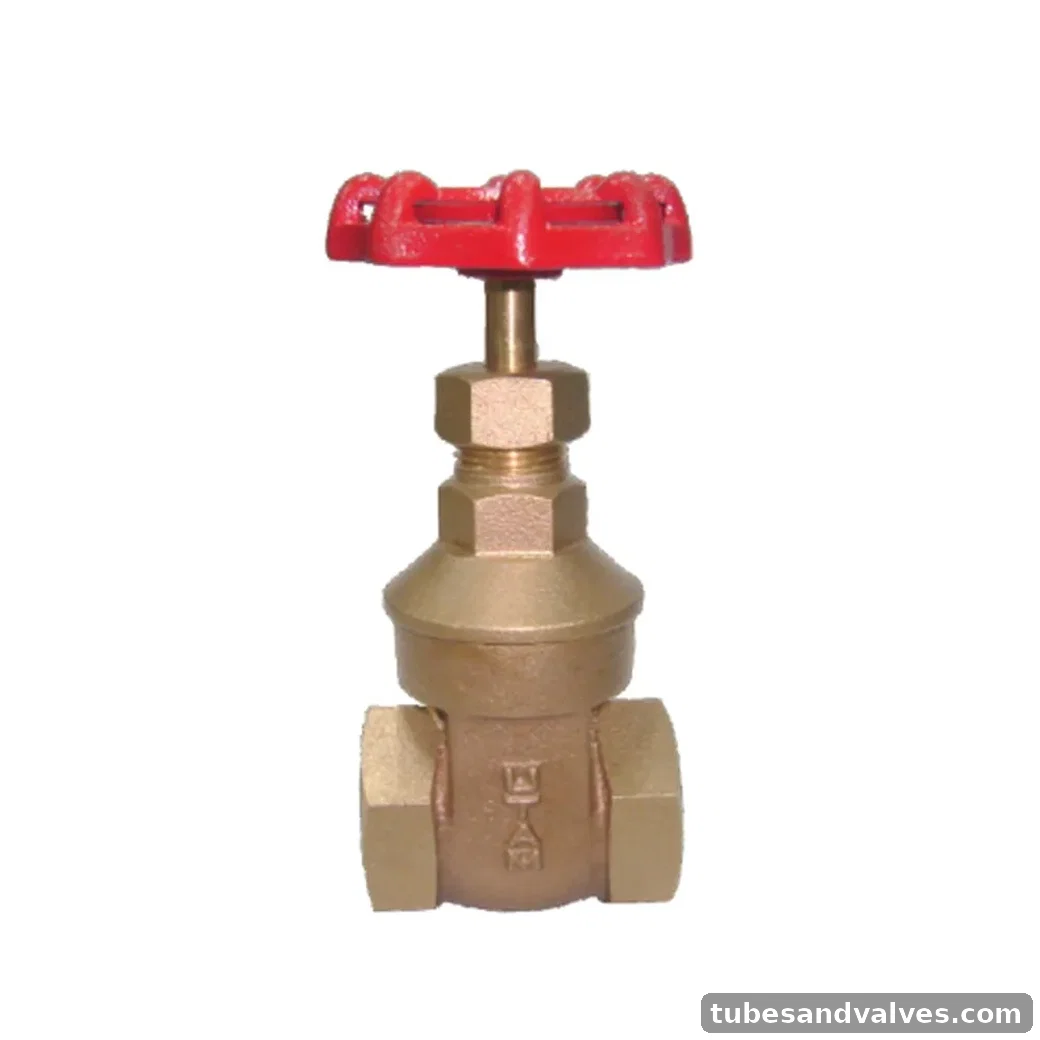

UTAM UV-86-W GATE VALVE REGULAR TYPE
UTAM UV-86-W GATE VALVE REGULAR TYPE. GATE VALVE REGULAR TYPE. Screwed in Bonnet, Inside Screw, Non Rising Stem. Rating: PN-20. Body/material: Gun Metal. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-86-W
Product FamilyGate Valve
MaterialGun Metal
Pressure / RatingPN-20
StandardBS:5154
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS:5154
Pressure/Class RatingPN-20
Body Material / StandardGM (BS:1400 LG2)
Type of SeatIntegral Seat
Type of WedgeSolid Wedge
TrimCu-Alloy
Gland PackingTeflon (PTFE)
End DetailsScrewed Female BSP Parallel Threads to BS:21
Test PressureB.T.P.- 30 Bar Hyd.
S.T.P.22 Bar Hyd.
