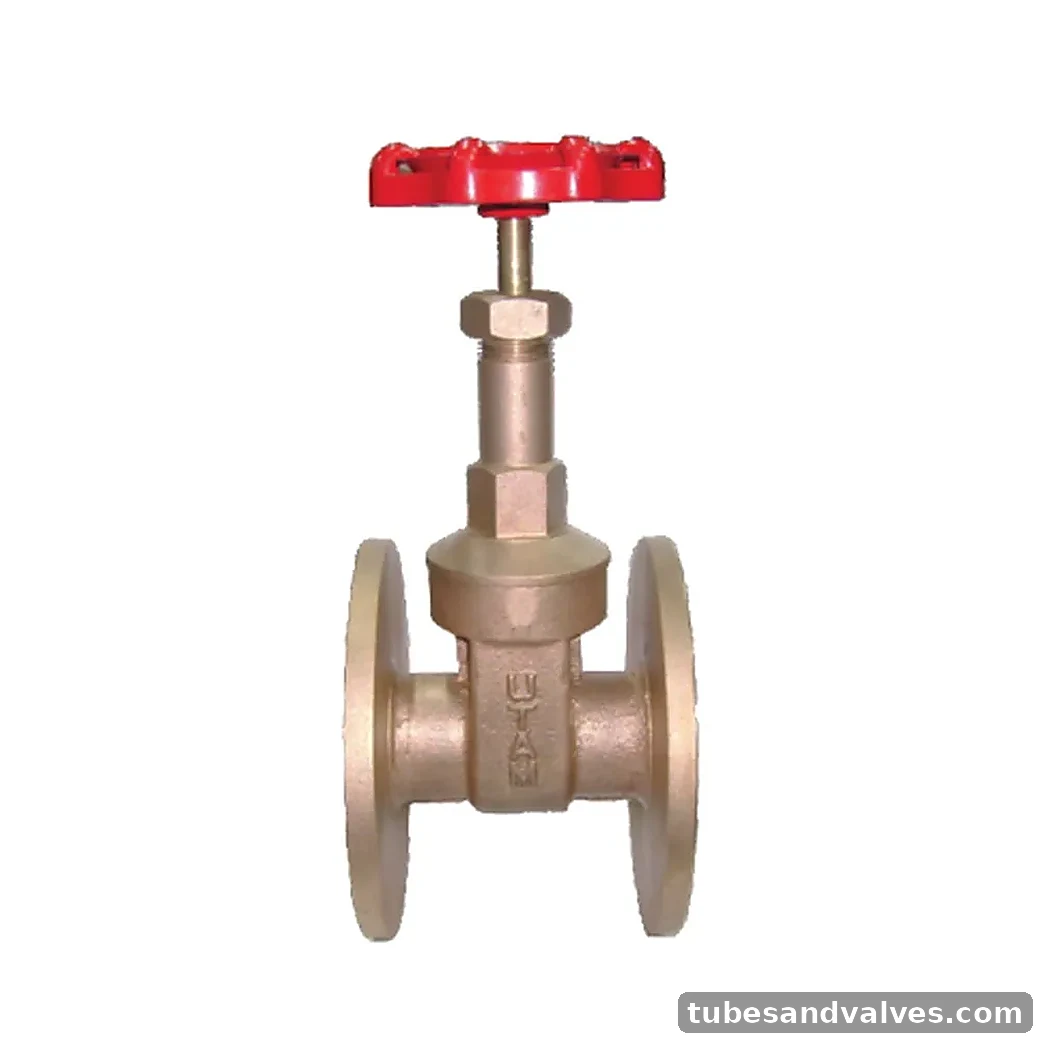

UTAM UV-90-W GATE VALVE
UTAM UV-90-W GATE VALVE. GATE VALVE. Screwed in Bonnet, Inside Screw, Rising Stem. Rating: Class-1. Body/material: Gun Metal. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-90-W
Product FamilyGate Valve
MaterialGun Metal
Pressure / RatingClass-1
StandardIS:778
End ConnectionFlanged
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardIS:778
Pressure/Class RatingClass-1
Body Material / StandardGM (IS:318 LTB2)
Type of SeatIntegral Seat
Type of WedgeSolid Wedge
TrimCu-Alloy
Gland PackingAsbestos/Teflon (PTFE)
End DetailsFlanges as per IS:778 CL-1 (Undrilled)
Test PressureB.T.P.- 1.5 Mpa Hyd.
S.T.P.1.0 Mpa Hyd.
