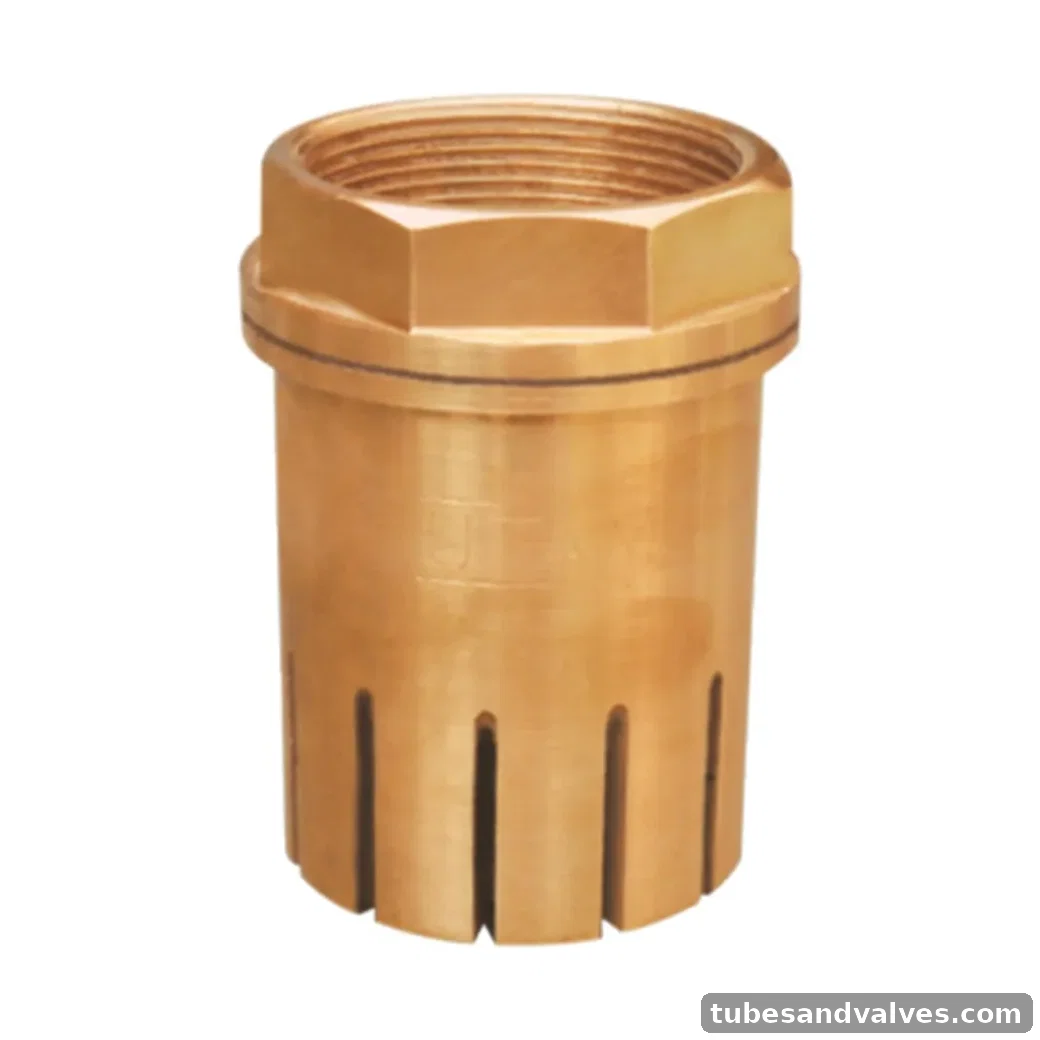

UTAM UV-97-W FOOT VALVE
UTAM UV-97-W FOOT VALVE. FOOT VALVE. Vertical Lift Check valve, Synthetic Rubber Seating (uptoS0mm) & Metal to Metal Seating (upto100mm). Rating: PN- 20. Body/material: Gun Metal. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-97-W
Product FamilyFoot Valve
MaterialGun Metal
Pressure / RatingPN- 20
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Pressure/Class RatingPN- 20
Body Material / StandardGM (BS:1400 LG2)
Type of SeatIntegral Seat
End DetailsScrewed Female BSP Parallel Threads to BS:21
Test PressureB.T.P.- 30 Bar Hyd.
S.T.P.22 Bar Hyd.
