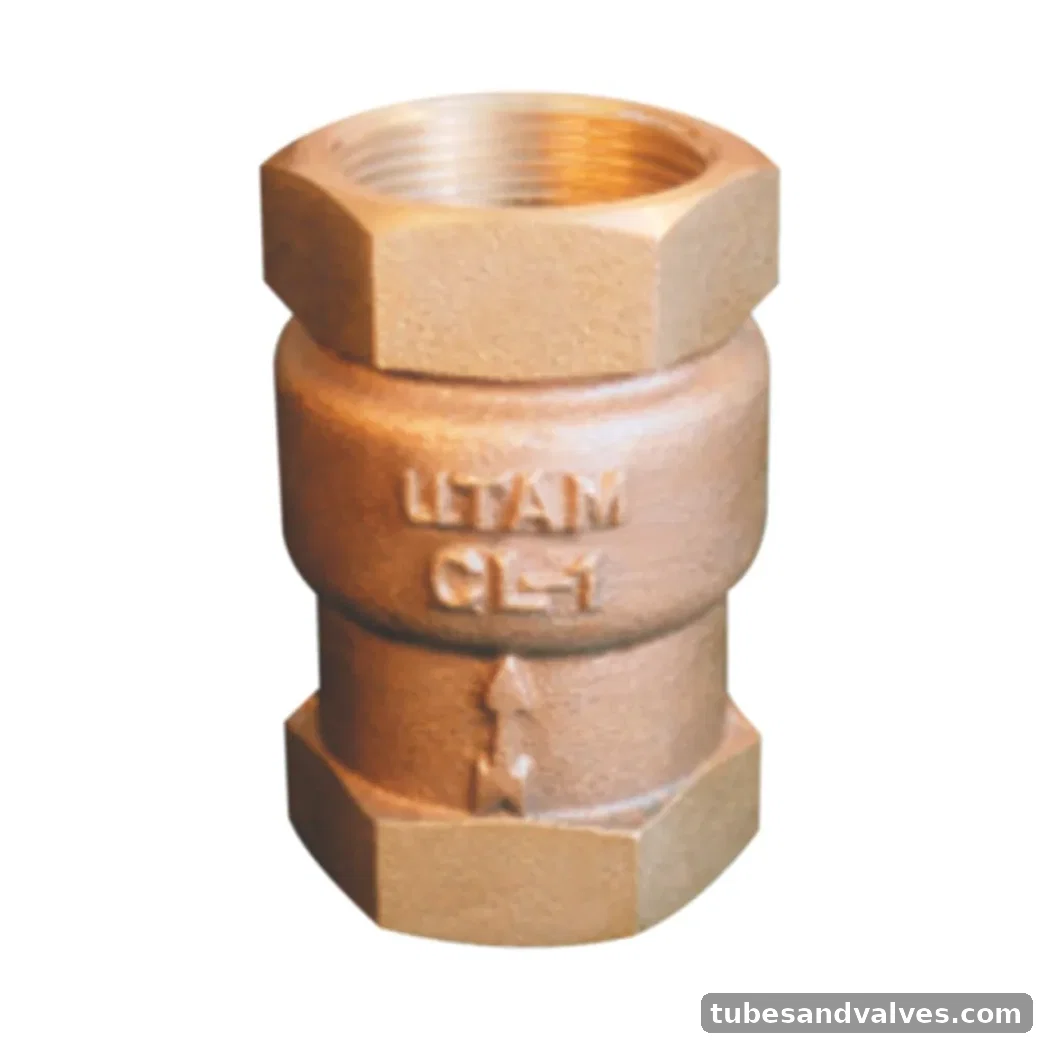

UTAM UV-99-W VERTICAL CHECK VALVE
UTAM UV-99-W VERTICAL CHECK VALVE. VERTICAL CHECK VALVE. Rating: Class-1. Body/material: Gun Metal. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeUTAM
Catalogue ModelUV-99-W
Product FamilyCheck Valve / NRV
MaterialGun Metal
Pressure / RatingClass-1
StandardIS:778
End ConnectionScrewed
UTAM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardIS:778
Pressure/Class RatingClass-1
Body Material / StandardGM (IS:318LTB2)
Type of SeatIntegral Seat
TrimCu-Alloy
End DetailsScrewed Female Threads to IS:554 (Parallel)
Test PressureB.T.P.- 1.5 Mpa Hyd.
S.T.P.1.0 Mpa Hyd.
