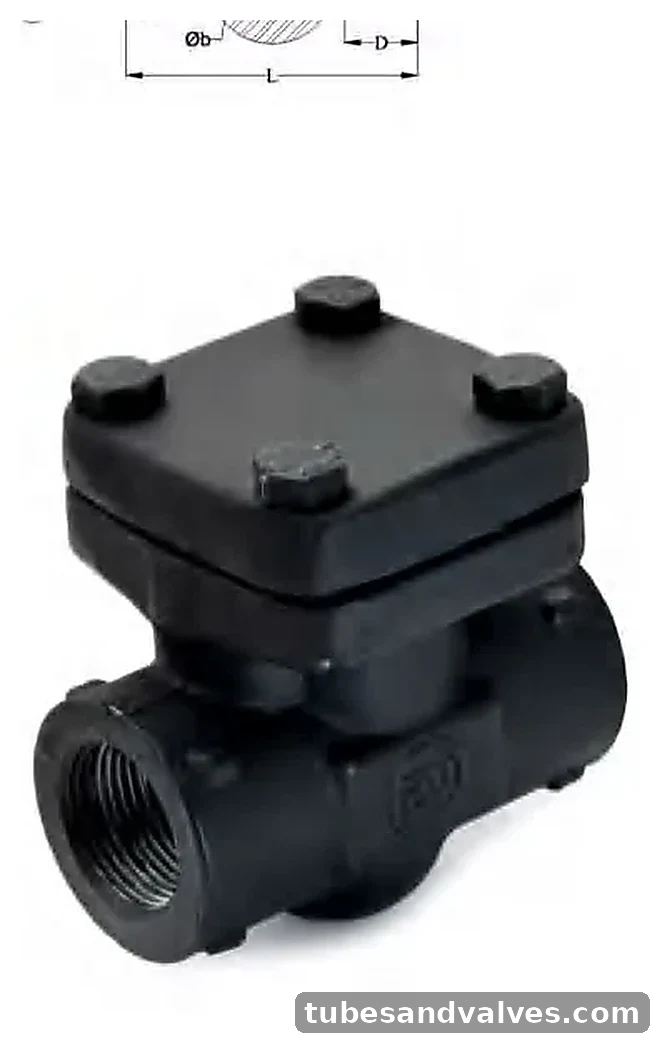

VS VSV-1005 Forged Steel Horizontal Lift Check Valve Class-800 (Full Bore)
VS VSV-1005 Forged Steel Horizontal Lift Check Valve Class-800 (Full Bore). Class-800 full bore forged steel horizontal lift check valve with phosphated body and bonnet and a bolted cover. The catalogue specifies BSPT/NPT female or socket-welded end connections. Material: Body: ASTM A105; Seat Ring: F6a 13% Cr / Stainless Steel ASTM A276 Type 410; Wedge Disc: F6a 13% Cr / Stainless Steel ASTM A276 Type 410; Gasket: Spiral Wound Stainless Steel Ty
Available Size / Variant
Confirm size with quotation
Brand / MakeVS
Catalogue ModelVSV-1005
Product FamilyCheck Valve / NRV
MaterialBody: ASTM A105; Seat Ring: F6a 13% Cr / Stainless Steel ASTM A276 Type 410; Wedge Disc: F6a 13% Cr / Stainless Steel ASTM A276 Type 410; Gasket: Spiral Wound Stainless Steel Type 316, graphite filled; Cover: ASTM A105; Studs: ASTM A193 Gr B7; Nuts: ASTM A194 Gr 2H
Pressure / RatingClass 800
Standard / SpecificationAPI 602 / BS EN ISO 15761 (BS 5352)
End ConnectionBSPT / NPT female; Socket Weld to ANSI B16.11
VS Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Design StandardAPI 602 / BS EN ISO 15761 (BS 5352)
Pressure ClassClass 800
BoreFull Bore
End ConnectionsBSPT / NPT female; Socket Weld to ANSI B16.11
Test PressureShell hydrostatic 207 bar (3000 psig); Seat hydrostatic 152 bar (2200 psig)
Maximum Working Temperature425°C
Suitable ForSteam; Water; Oil; Air; Gas
MaterialsBody: ASTM A105; Seat Ring: F6a 13% Cr / Stainless Steel ASTM A276 Type 410; Wedge Disc: F6a 13% Cr / Stainless Steel ASTM A276 Type 410; Gasket: Spiral Wound Stainless Steel Type 316, graphite filled; Cover: ASTM A105; Studs: ASTM A193 Gr B7; Nuts: ASTM A194 Gr 2H
Source Page77
