VTM FM-35/36/39/40-IBR VORTEX STEAM FLOW METER

Name: VTM FM-35/36/39/40-IBR VORTEX STEAM FLOW METER
Brand: VTM
SKU: FM-35/36/39/40-IBR

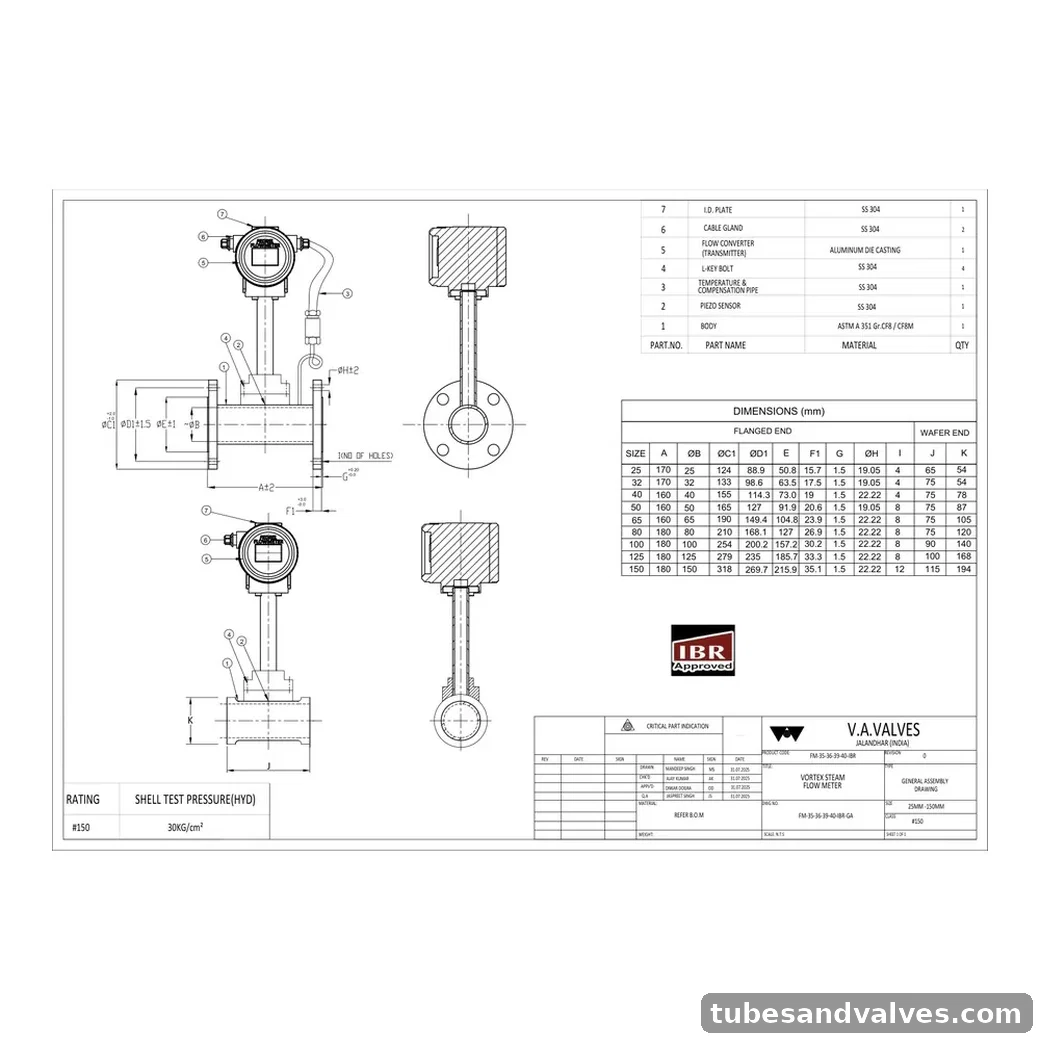

VTM FM-35/36/39/40-IBR VORTEX STEAM FLOW METER. VORTEX STEAM FLOW METER. General assembly family covering flanged and wafer end configurations for Class 150 service. Rating: Class 150. Body/material: Stainless Steel 316 / CF8M.

About this exact size

This page represents one specific size variant. Confirm the model, material, pressure/rating, end connection, applicable standard, quantity and delivery location in your RFQ so the quotation is for the exact product shown rather than a nearby size or class.

Available Size / Variant

25-150 mm

Brand / MakeVTM

Catalogue ModelFM-35/36/39/40-IBR

Product FamilyFlow Meter

MaterialStainless Steel 316 / CF8M

Pressure / RatingClass 150

VTM Catalogue Technical Data

Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.

Pressure/Class RatingClass 150

Body Material / StandardASTM A351 Gr. CF8 / CF8M

Flow Converter / TransmitterSS 304

Compensation PipeSS 304

Piezo SensorSS 304

Cable GlandAluminium die casting

Shell Test Pressure30 kg/cm² Hyd.

Available Sizes25-150 mm

CertificationIBR

Individual Size Product Pages

Each available size has its own product page for precise enquiry and specification reference.

25mm (1")32mm (1 1/4")40mm (1 1/2")50mm (2")65mm (2 1/2")80mm (3")100mm (4")125mm (5")150mm (6")
