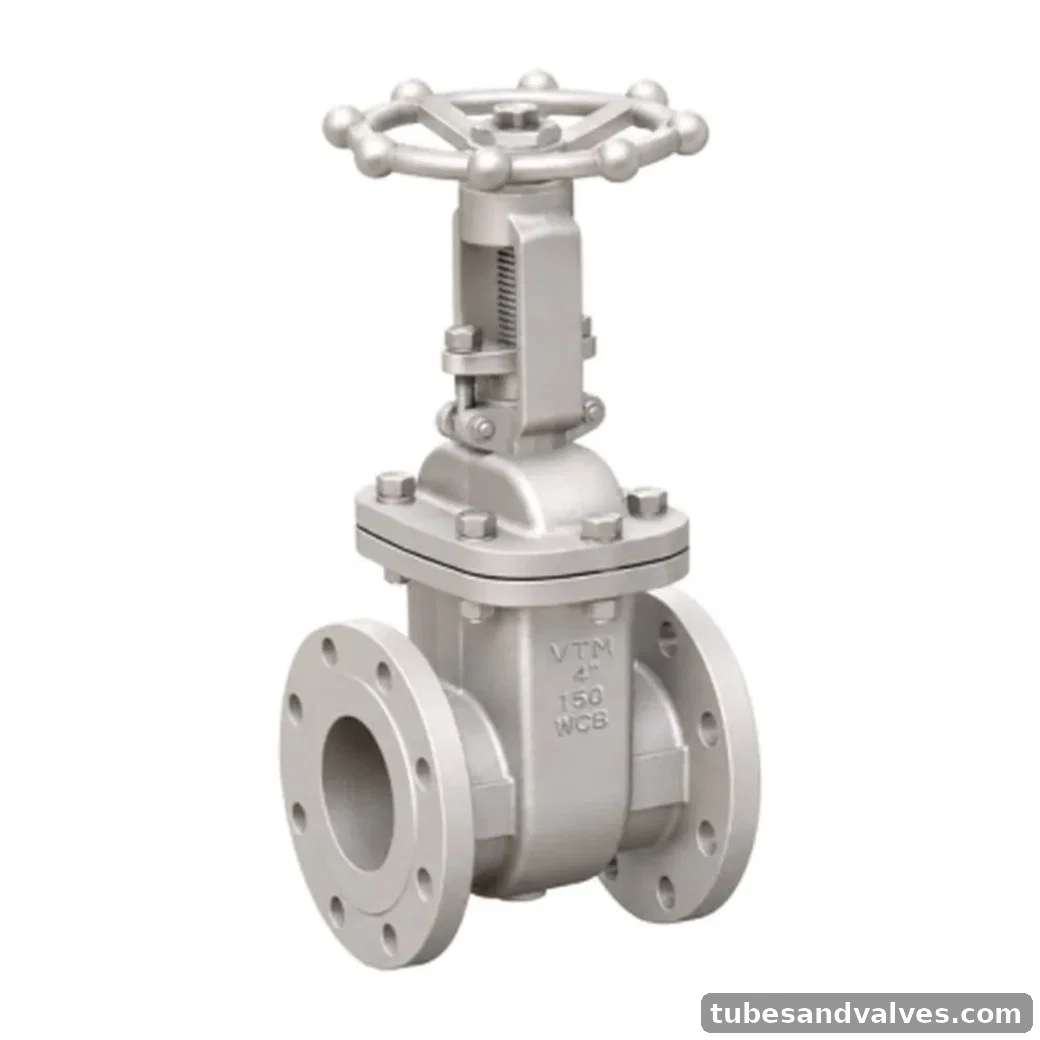

VTM VA-11401 CF8 (SS304) GATE VALVE F/E
VTM VA-11401 CF8 (SS304) GATE VALVE F/E. CF8 (SS304) GATE VALVE F/E. Rating: Class 150. Body/material: Stainless Steel 304 / CF8. End connection: Flanged.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-11401
Product FamilyGate Valve
MaterialStainless Steel 304 / CF8
Pressure / RatingClass 150
StandardAPI 600/BS 1414
End ConnectionFlanged
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardAPI 600/BS 1414
Pressure/Class RatingClass 150
Body Material / StandardCast Stainless Steel (ASTM A351 Gr. CF8)
TrimStainless Steel (ASTM A276 Gr. 304)
Type of WedgeSolid / Flexible Wedge
PackingPure Graphite
End DetailsFlanges Drilled as per ASME B16.5 #150.
Test PressureShell: 30.0 Kg/cm² Hyd.
Seat22.0 Kg/cm² Hyd.
