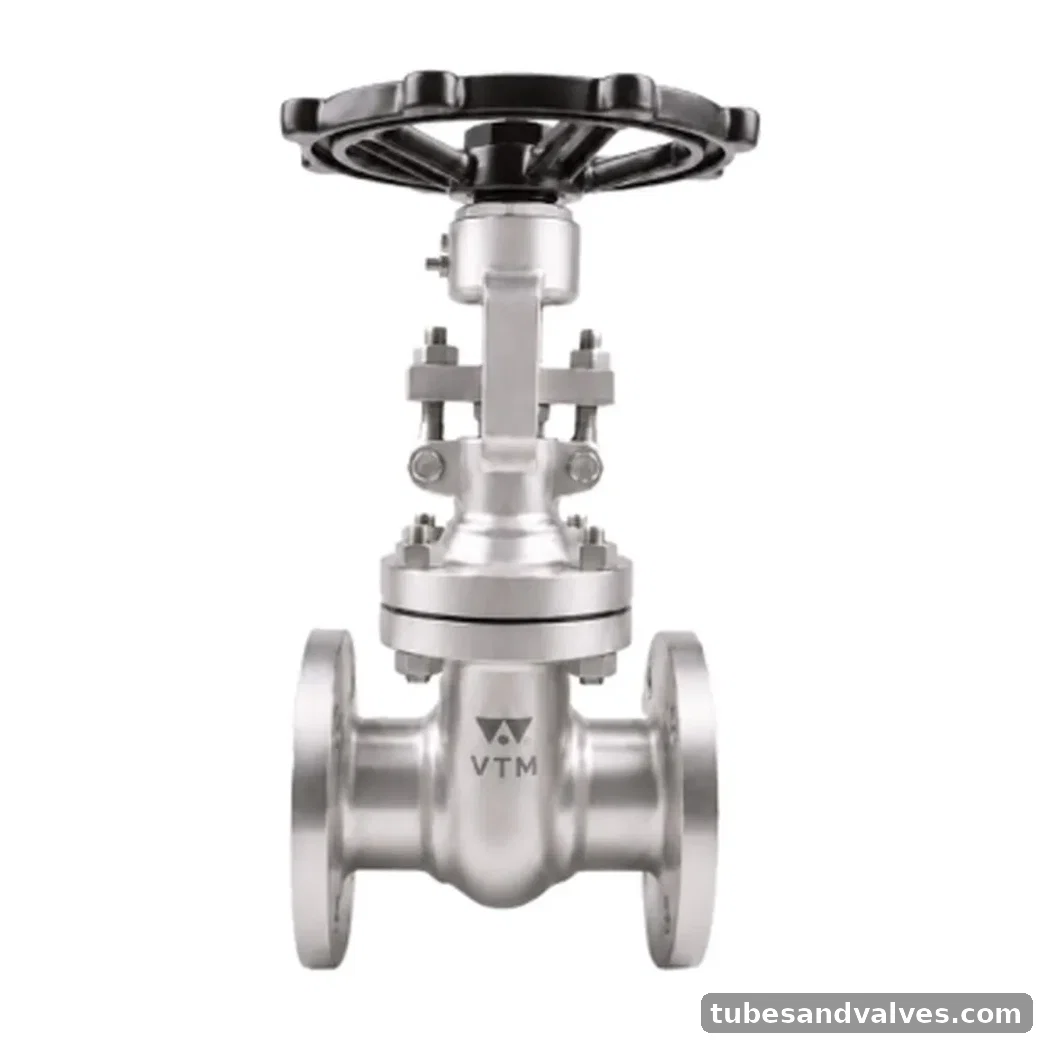

VTM VA-115 WCB GATE VALVE F/E

Name: VTM VA-115 WCB GATE VALVE F/E
Brand: VTM
SKU: VA-115

VTM VA-115 WCB GATE VALVE F/E. WCB GATE VALVE F/E. Rating: Class 300. Body/material: Cast Steel / WCB. End connection: Flanged.

About this exact size

This page represents one specific size variant. Confirm the model, material, pressure/rating, end connection, applicable standard, quantity and delivery location in your RFQ so the quotation is for the exact product shown rather than a nearby size or class.

Available Size / Variant

40-600 mm

Brand / MakeVTM

Catalogue ModelVA-115

Product FamilyGate Valve

MaterialCast Steel / WCB

Pressure / RatingClass 300

StandardAPI 600 / ISO 10434 / ASME B16.34

End ConnectionFlanged

VTM Catalogue Technical Data

Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.

Product StandardAPI 600 / ISO 10434 / ASME B16.34

Pressure/Class RatingClass 300

Body Material / StandardCast Carbon Steel (ASTM A216 Gr. WCB)

TrimSS (ASTM A276 Gr. 410 or Equivalent)

Type of WedgeSolid / Flexible Wedge

PackingPure Graphite

OperationHand Wheel Operated upto 350mm & T above are Gear operated. oes

End DetailsFlanged Class 300

Test PressureShell: 78.5 Kg/cm² Hyd. ba

Seat57.5 Kg/cm² Hyd.

Face-to-Face StandardASME B16.10

Testing StandardAPI 598

End Connection StandardASME B16.5 Class 300

Available Sizes40-600 mm

CertificationIBR

Design StandardAPI 600 / ISO 10434 / ASME B16.34

Face-to-FaceASME B16.10

End Connection StandardASME B16.5

RatingClass 300

Size Range40-600 mm

GA DrawingVA-115-IBR-GA-00

Individual Size Product Pages

Each available size has its own product page for precise enquiry and specification reference.

40mm (1 1/2")50mm (2")65mm (2 1/2")80mm (3")100mm (4")125mm (5")150mm (6")200mm (8")250mm (10")300mm (12")350mm (14")400mm (16")450mm (18")500mm (20")600mm (24")
