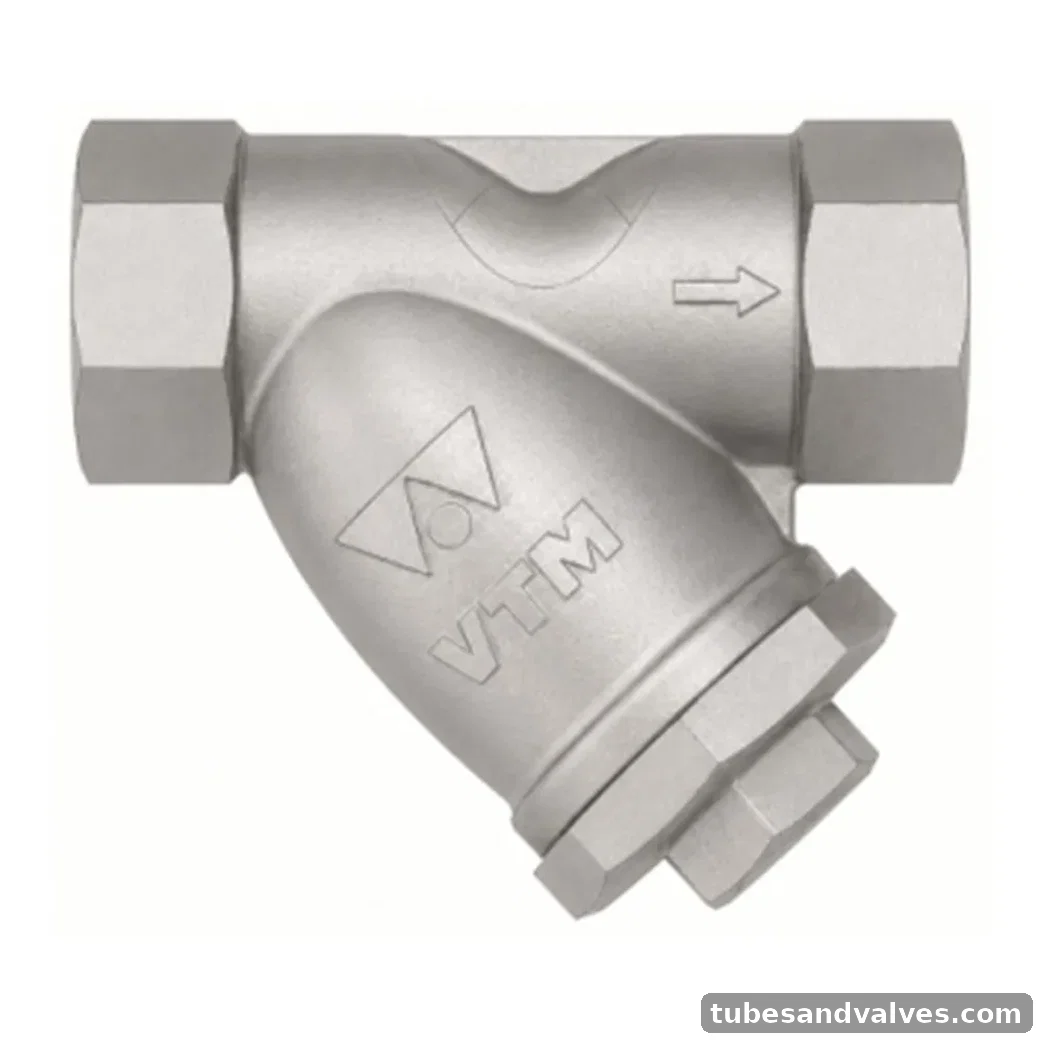

VTM VA-2333T CF8 (SS304) 'Y' TYPE STRAINER S/E
VTM VA-2333T CF8 (SS304) 'Y' TYPE STRAINER S/E. CF8 (SS304) 'Y' TYPE STRAINER S/E. Rating: Class 150. Body/material: Stainless Steel 304 / CF8. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-2333T
Product FamilyY Strainer
MaterialStainless Steel 304 / CF8
Pressure / RatingClass 150
StandardASME B16.34
End ConnectionScrewed
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardASME B16.34
Pressure/Class RatingClass 150
Body Material / StandardStainless Steel (ASTM A351 Gr. CF8)
ScreenSS 304 (Renewable) “a
End DetailsScrewed Female BSP Parallel Threads to BS:21
Test PressureShell: 30 Kg/cm² Hyd
