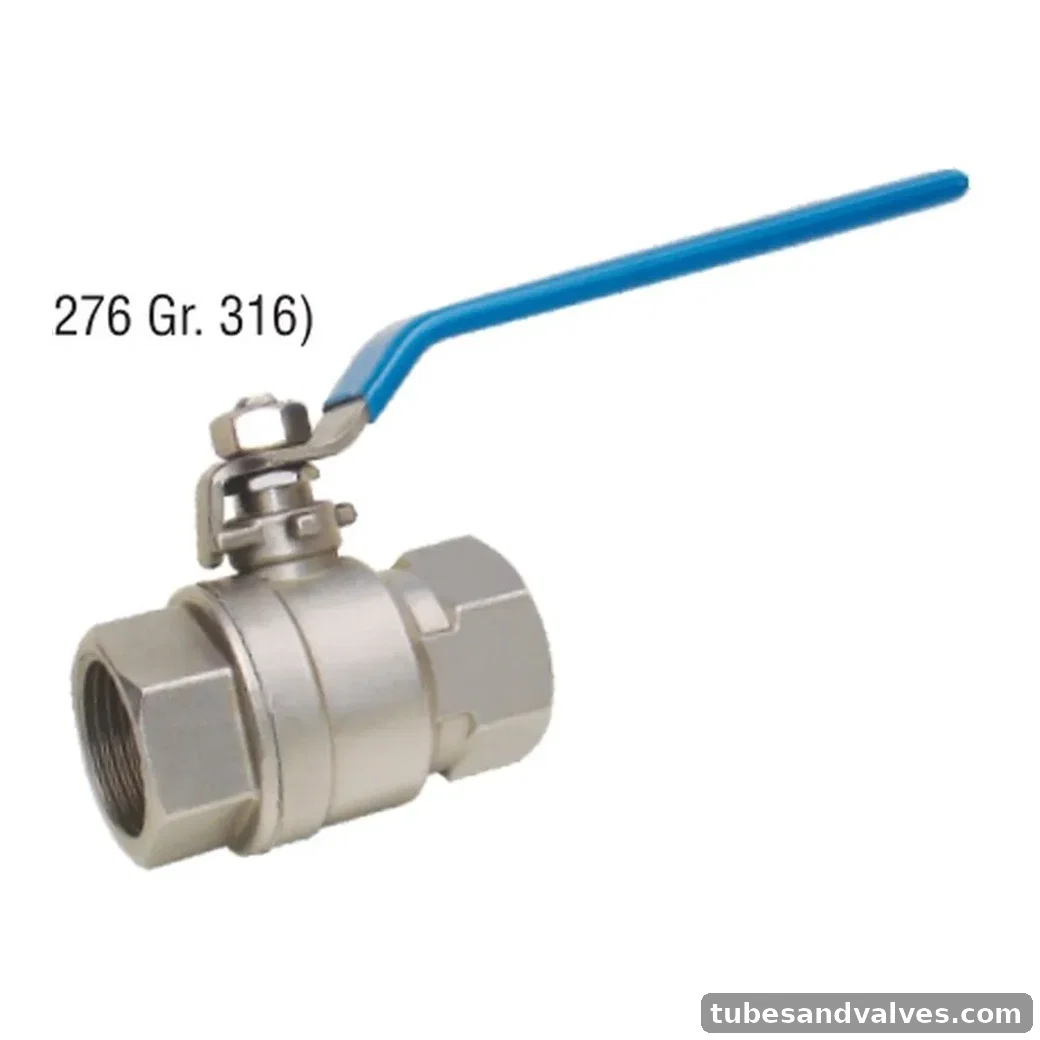

VTM VA-263 CF8M (SS316) BALL VALVE 2PC. DESIGN S/E
VTM VA-263 CF8M (SS316) BALL VALVE 2PC. DESIGN S/E. CF8M (SS316) BALL VALVE 2PC. DESIGN S/E. Rating: PN40. Body/material: Stainless Steel 316 / CF8M. End connection: Screwed.
Available Size / Variant
Confirm size with quotation
Brand / MakeVTM
Catalogue ModelVA-263
Product FamilyBall Valve
MaterialStainless Steel 316 / CF8M
Pressure / RatingPN40
StandardBS EN ISO 17292
End ConnectionScrewed
VTM Catalogue Technical Data
Technical information below is taken from the supplied catalogue file. Please confirm current availability and final quoted specification before ordering.
Product StandardBS EN ISO 17292
Pressure/Class RatingPN40
Port OpeningFull Bore
Body Material / StandardCast Stainless Steel (ASTM A351 Gr. CF8M)
BallStainless Steel (ASTM A351 Gr. CF8M / ASTM A276 Gr. 316)
StemStainless Steel (ASTM A276 Gr. 316)
Seat Ring & Gland PackingVirgin PTFE
End DetailsScrewed Female BSP Parallel Threads to BS:21
Test PressureShell: 61.5 Kg/cm² Hyd.
Seat45.0 Kg/cm² Hyd. 7.1 Kg/cm² Air
